| Mounting method | Modular |
| RAL-number | 9016 |
| Material quality | ABS |
| Type of device | Duct installation unit |

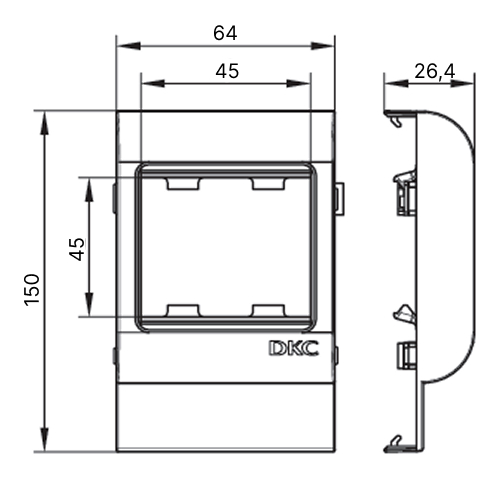

| Width opening, mm | 45 |
| Height opening, mm | 45 |
| Cover width, mm | 64 |
| Colour | White |
| Number of units | 2 |
| Material | Plastic |
| Type of fastening | Inner lying |
| Material | ABC-plastic |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 150 |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL4 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Product type | Supporting plate |
