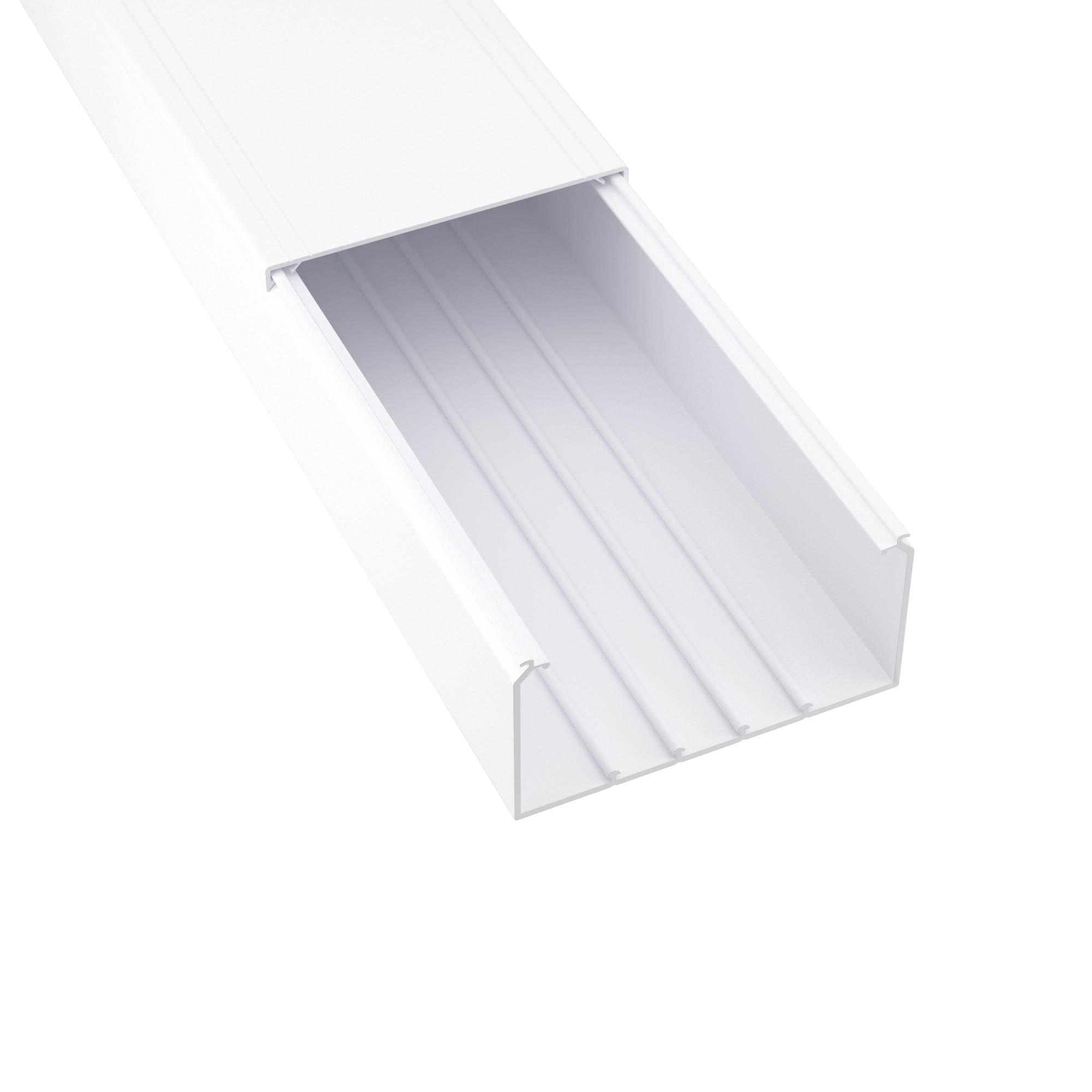

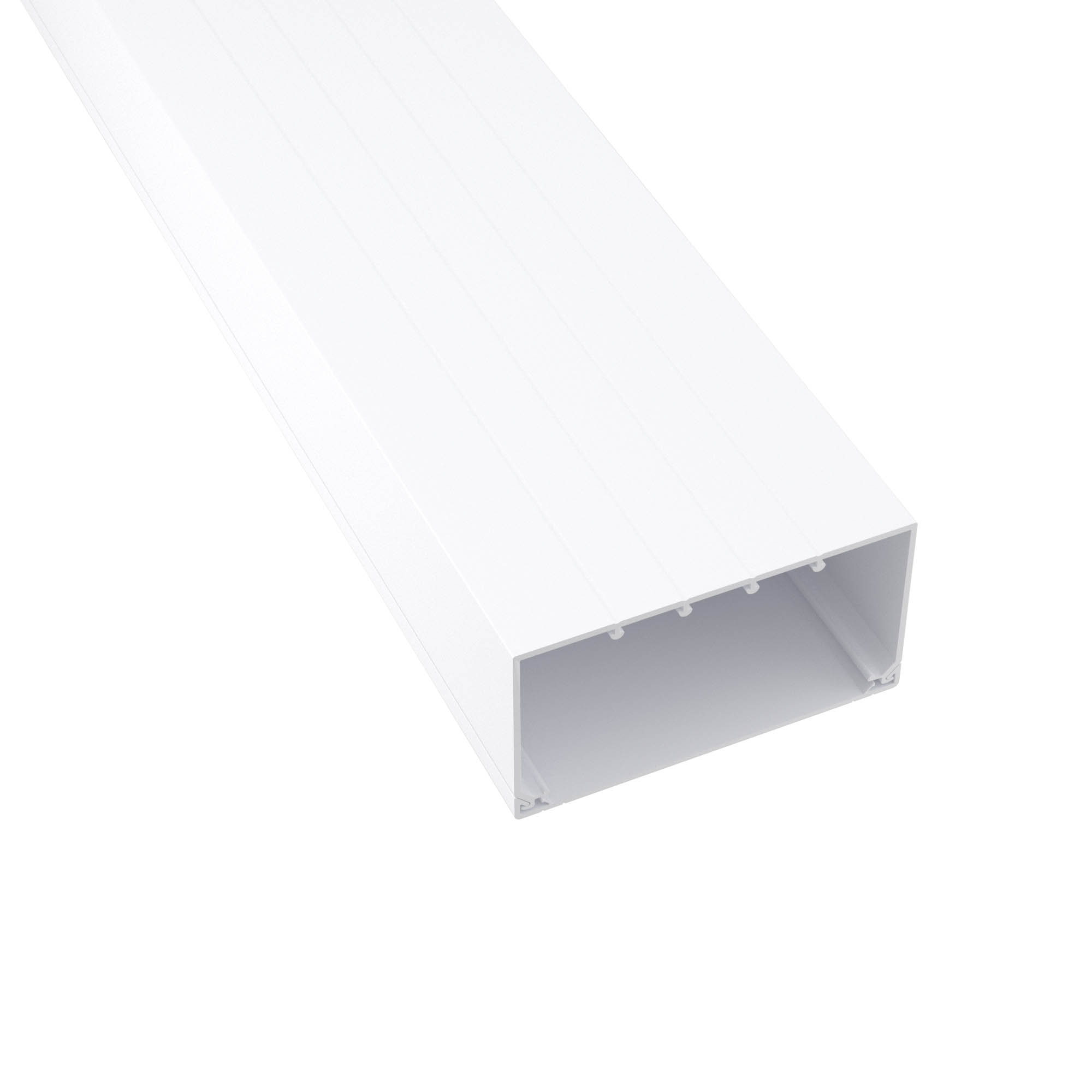

TA-GN 150x80 Cable trunking with cover, white
Code: 01792
TA-GN 150x80 Cable trunking with cover, white
Code: 01792
| Colour | Pure white |

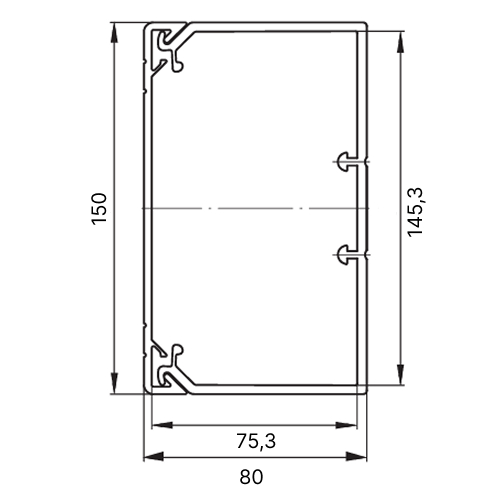

| Width, mm | 150 |
| Depth, mm | 80 |
| Material quality | Polyvinyl chloride (PVC) |
| Length, mm | 2000 |
| Material | Plastic |
| Mounting method cover | Inner lying |
| Number of covers | 1 |
| Number of plug-in partitions | 4 |
| Mounting perforation in bottom | Yes |
| With cable fixing clip | Yes |
| With duct connector | Yes |
| Useful cross section, mm² | 10730 |
| Cover width 1, mm | 150 |
| With protection film | Yes |
| Symmetric | Yes |
| Construction type rectangular | Yes |
| Covers supplied with the product | Yes |
| Color | white, RAL 9016 |
| Material | PVC |
| Ingress Protection rating, IP | IP40 |
| Shock resistance, J | 6 |
| Climate version | UHL4 |
| Fire protection | It is not spread combustion (corresponds to the requirements of №123-ФЗ 22.07.2008, ГОСТ Р 53313-2009) |
| Product type | Cable duct with a cover |
