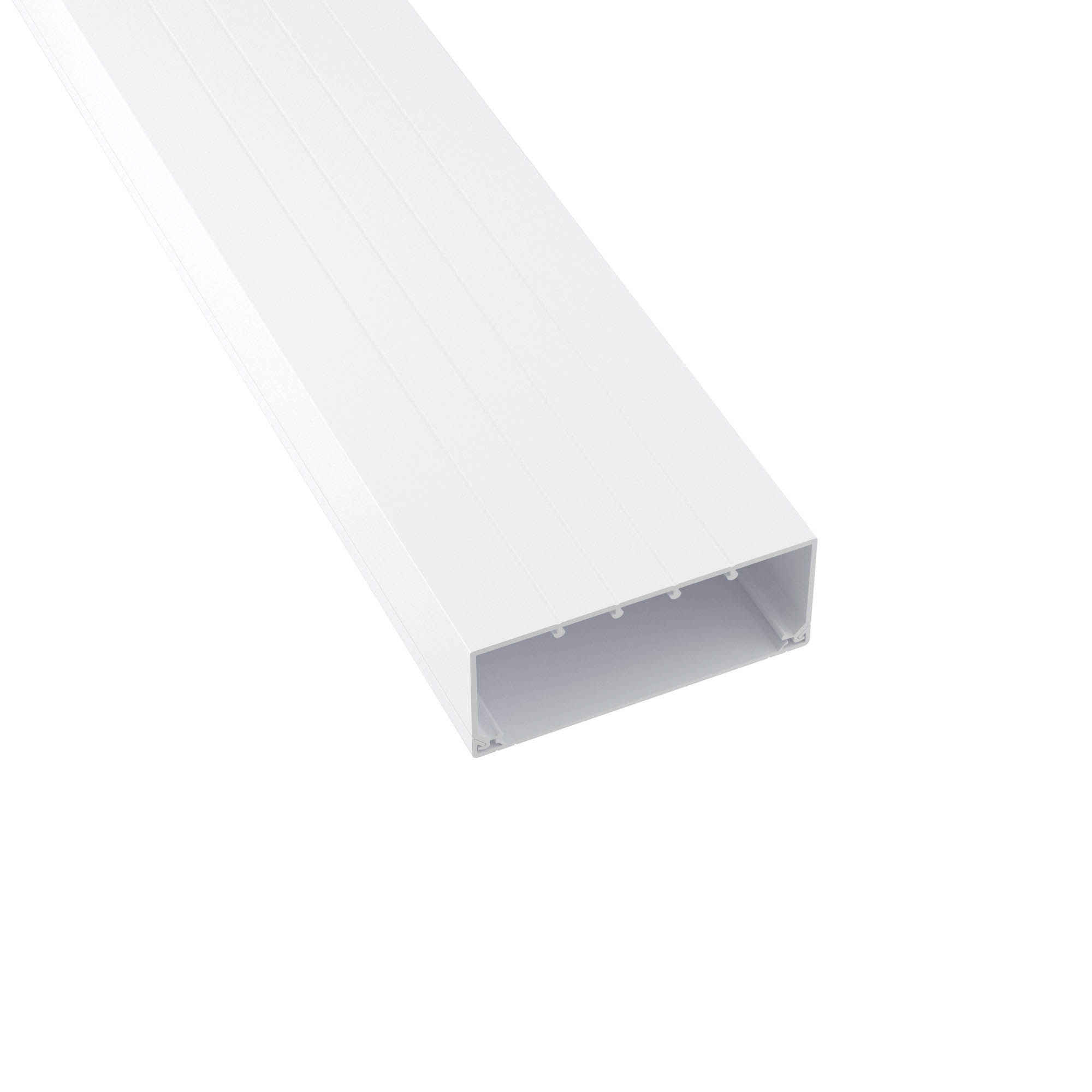

TA-GN 150x60 Cable trunking with cover, white

Code: 01788
TA-GN 150x60 Cable trunking with cover, white
  • To ask a question
Colour Pure white

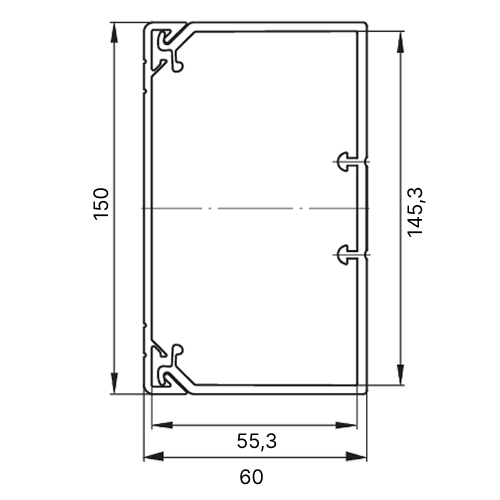

Width, mm 150
Depth, mm 60
Surface protection Other
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Number of plug-in partitions 4
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Useful cross section, mm² 7798
Cover width 1, mm 150
With protection film Yes
Symmetric Yes
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 150
Ingress Protection rating, IP IP40
Average filled area, sq.mm 7798
Summarized profile area (max), sq.mm 7798
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 60
Self-glueing base false
Product type Cable duct with a cover
