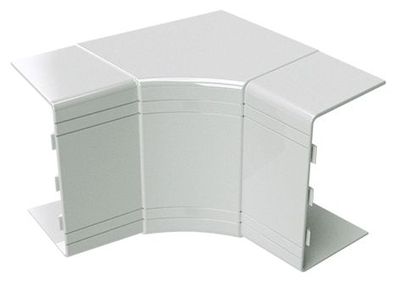

NIAV 150x60 Internal angle (70-120°)

Code: 01731
NIAV 150x60 Internal angle (70-120°)
  • To ask a question
Colour Pure white
Width, mm 150
Model Moulded hood
Halogen free Yes
Depth, mm 60
Surface protection Other
Material quality Other
Material Plastic
Mounting method cover Inner lying
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
With protection film No
Angle, ° 70...120
Shape Symmetric
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 150
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 60
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Internal changeable angle
