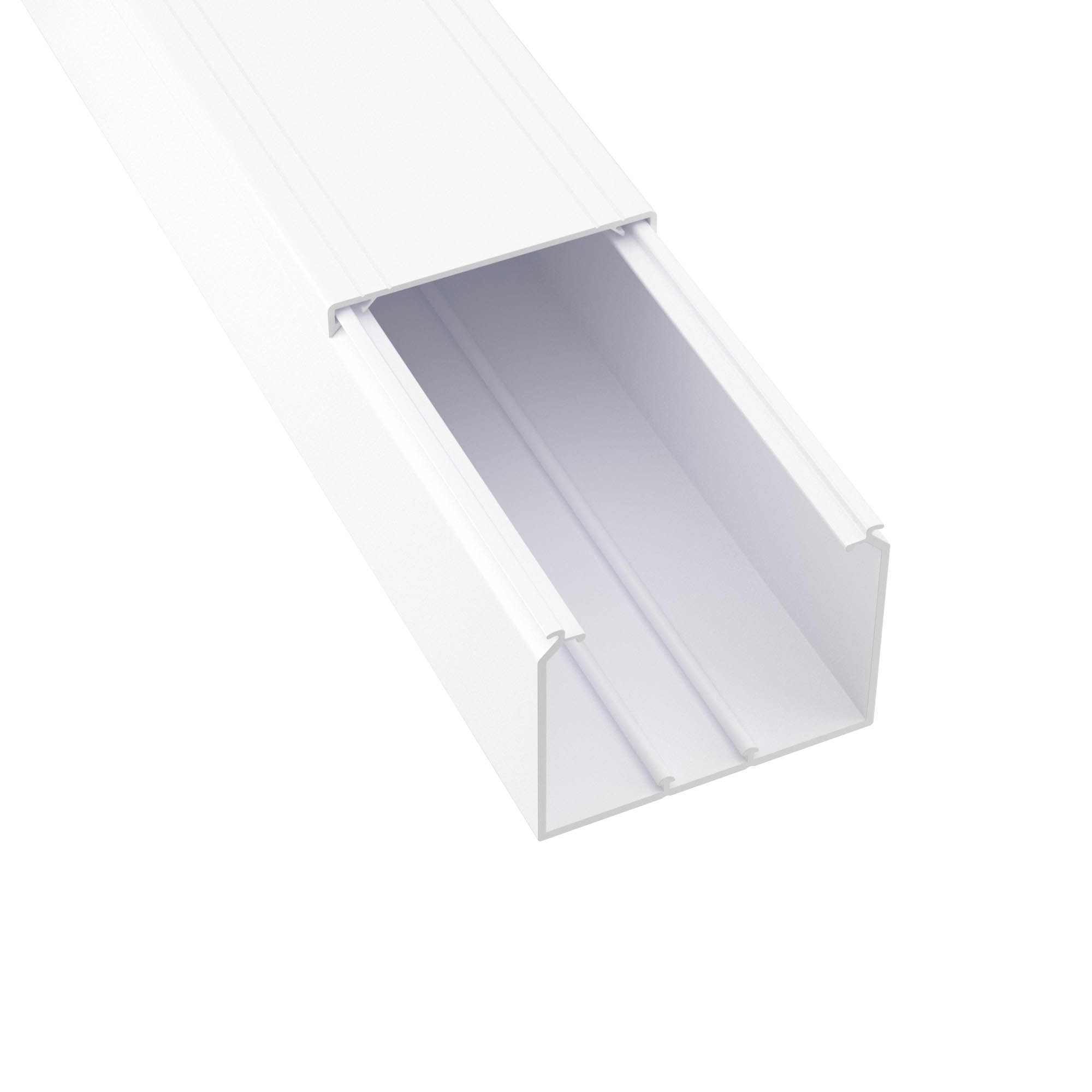

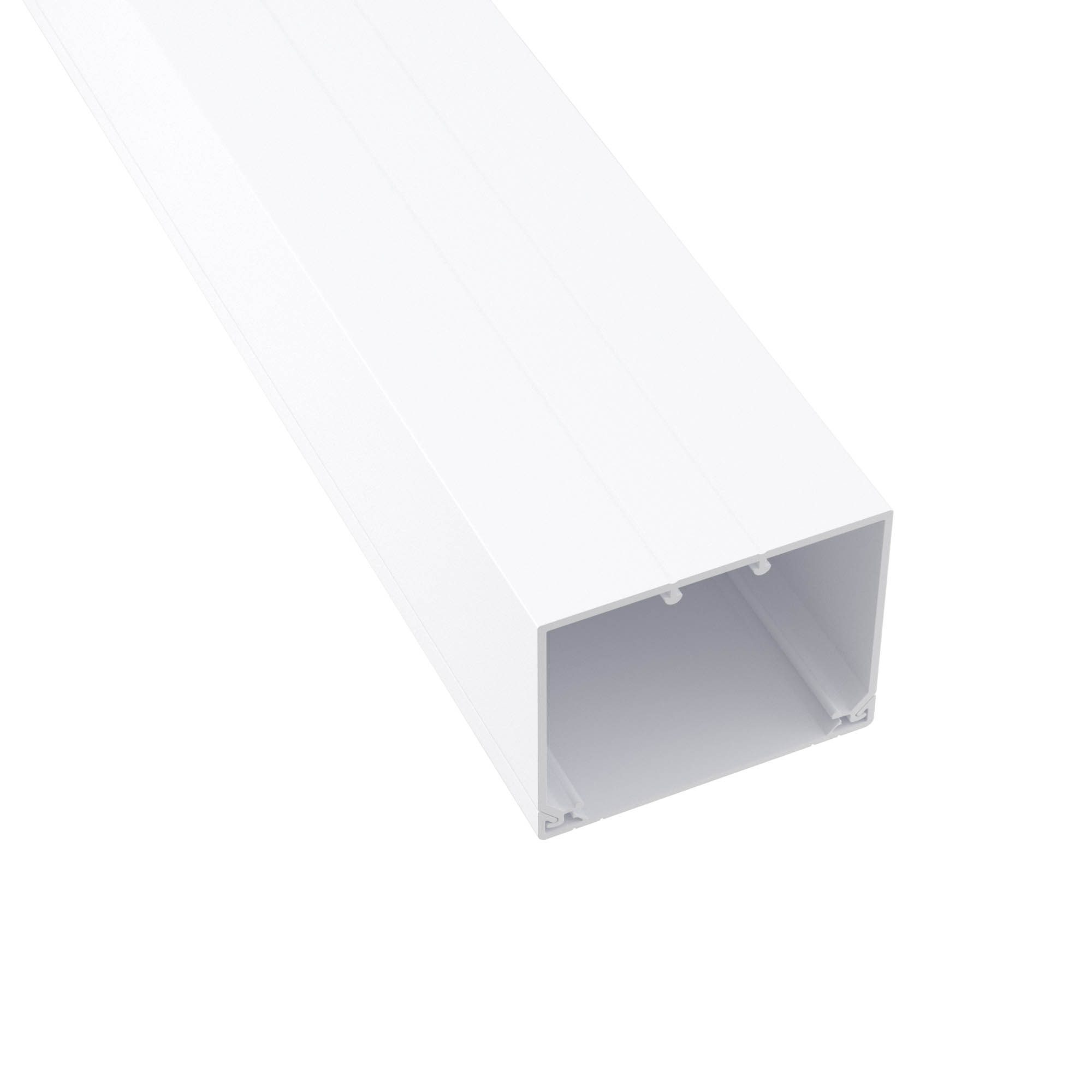

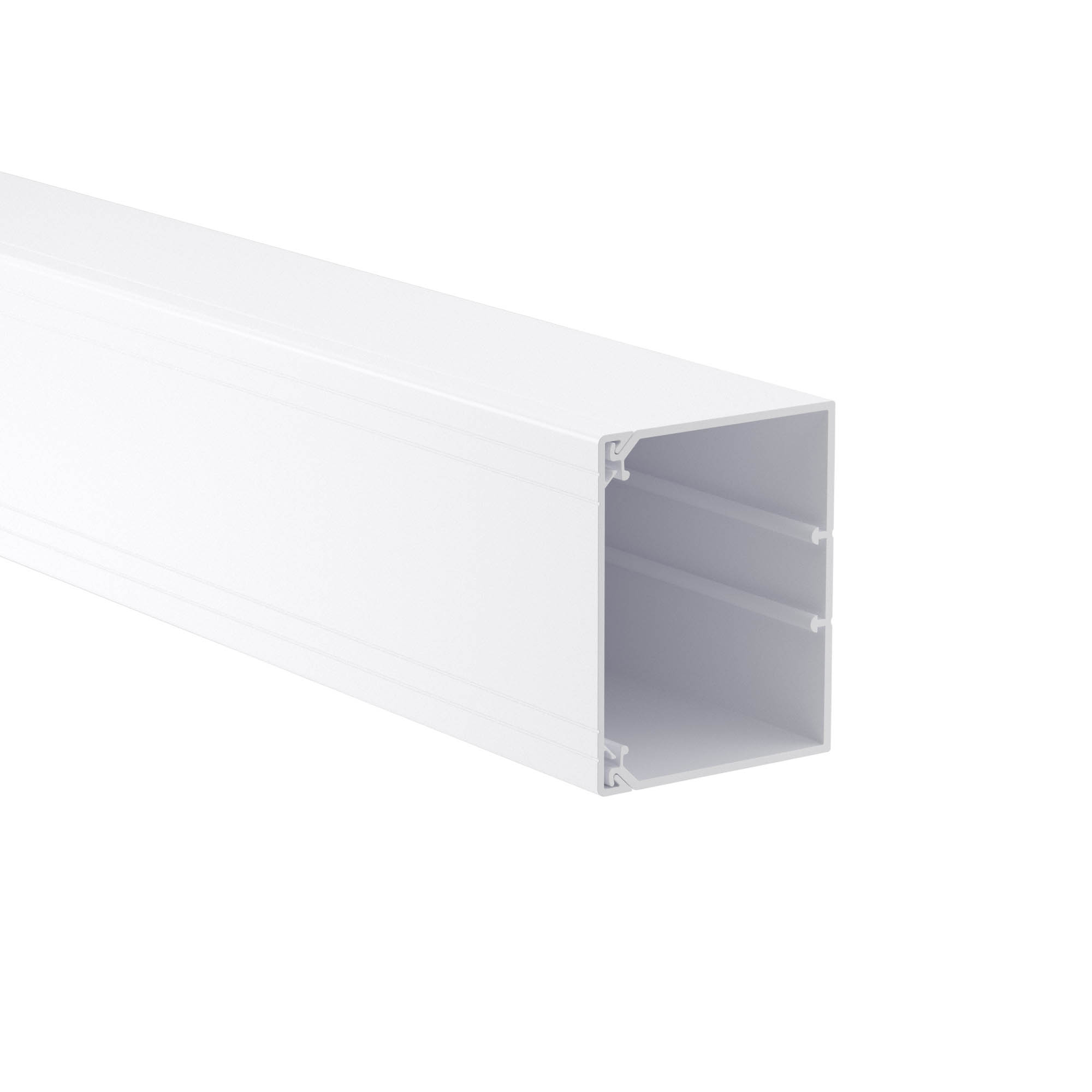

TA-GN 100x80 Cable trunking with cover, white

Code: 01790
TA-GN 100x80 Cable trunking with cover, white
  • To ask a question
Colour Pure white
Width, mm 100
Depth, mm 80
Surface protection Other
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Number of plug-in partitions 2
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Useful cross section, mm² 7030
Cover width 1, mm 100
With protection film Yes
Symmetric Yes
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Color white, RAL 9016
Material PVC
Ingress Protection rating, IP IP40
Shock resistance, J 6
Climate version UHL4
Fire protection It is not spread combustion (corresponds to the requirements of №123-ФЗ 22.07.2008, ГОСТ Р 53313-2009)
Product type Cable duct with a cover
