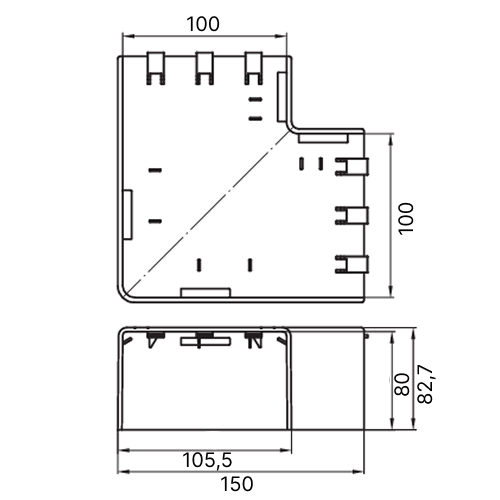

NPAN Flat L-form angle 100х80 mm

Code: 01749
NPAN Flat L-form angle 100х80 mm
  • To ask a question
Colour Clear white
Width, mm 100
Model Other
Halogen free Yes
Depth, mm 80
Surface protection Other
Material quality Other
Material Plastic
Mounting method covers Inner lying
Number of covers 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Direction Rising/descending
Protection film No
Symmetric Yes
Angle, ° 90
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 100
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 80
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Flat angle
