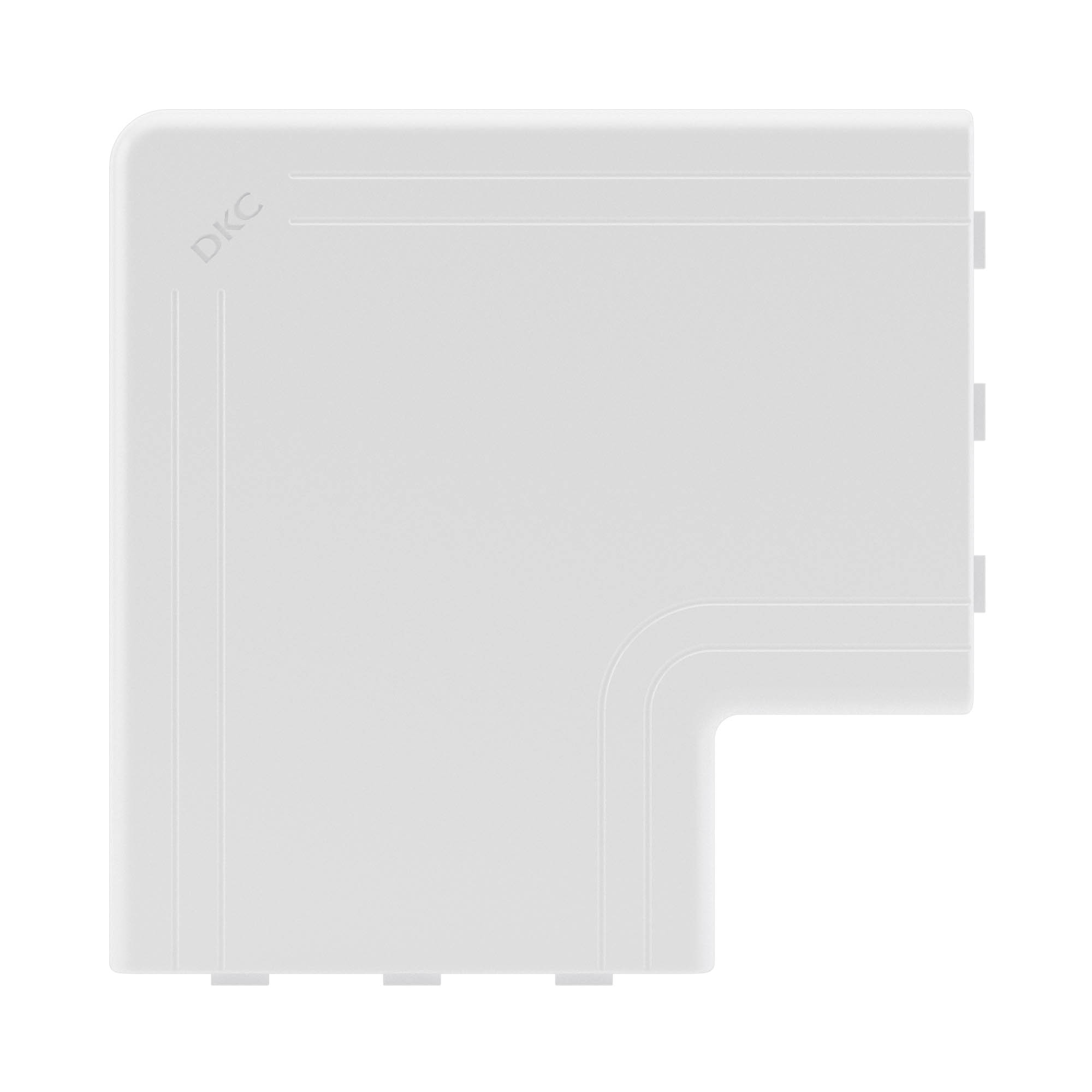

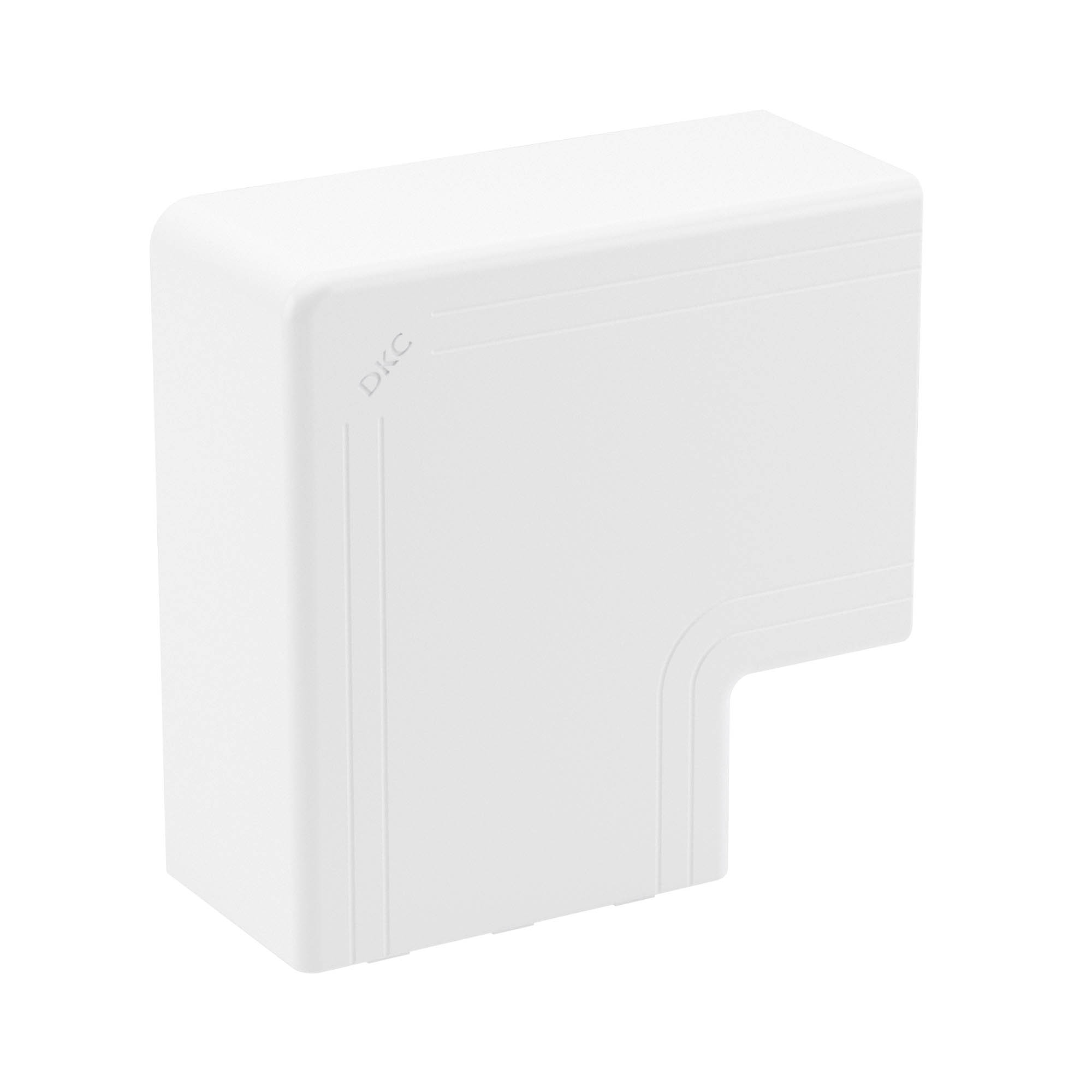

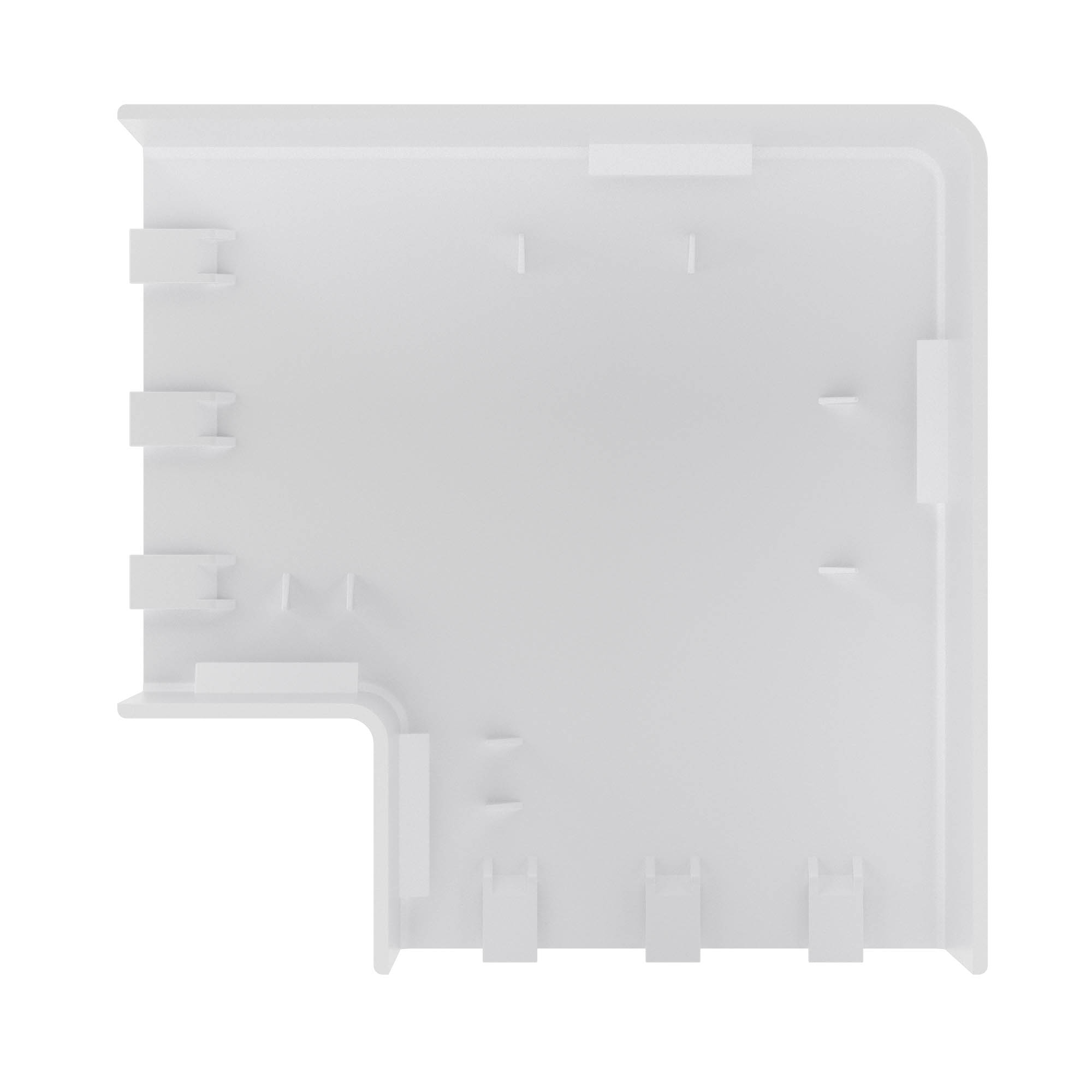

NPAN Flat L-form angle 100х60 mm

Code: 01745
NPAN Flat L-form angle 100х60 mm
  • To ask a question
Colour Pure white
Width, mm 100
Model Other
Halogen free Yes
Depth, mm 60
Material quality Plastic
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Direction Rising/descending
With protection film No
Symmetric Yes
Angle, ° 90
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 100
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 60
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Flat angle
