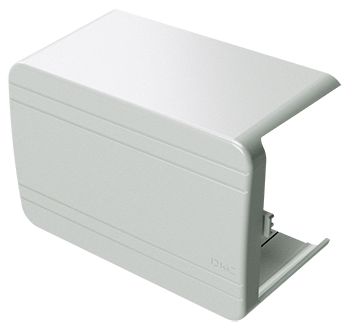

NTAN 120x40 T-form angle (branch), white

Code: 01758
NTAN 120x40 T-form angle (branch), white
  • To ask a question
Colour Pure white
Width, mm 120
Model Base unit and cover
Halogen free Yes
Depth, mm 40
RAL-number 9016
Surface protection Other
Width branch, mm 120
Material quality Other
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
With protection film No
Symmetric Yes
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 120
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 40
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type T-branch
