| Width, mm | 400 |
| Model | Without connector |
| Height, mm | 100 |
| Surface protection | Galvanic/electrolytic zinc plated |
| Material quality | Other |
| Length, mm | 3000 |
| Material | Steel |
| Wire diameter, mm | 5 |
| Integrated partition | None |
| Useful cross section, mm² | 40000 |
| Profile shape | U-shape |
| Wide span model | No |
| Screwless connector | No |

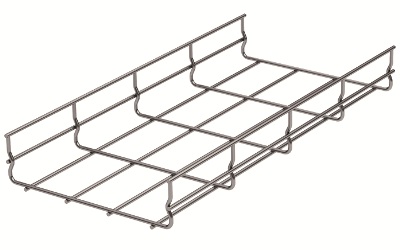

| Product type | Wire mesh cable tray |
| Type | Metal wire mesh trays - "F5 Combitech" |
| Height | 100 mm |
| Length | 3000 mm |
| Material | Electrogalvanised |
| Width | 400 mm |
