Mesh tray 100х100 L3000
Code: FC1010
Mesh tray 100х100 L3000
Code: FC1010
| Width, mm | 100 |
| Model | Without connector |
| Height, mm | 100 |
| Surface protection | Galvanic/electrolytic zinc plated |
| Material quality | Other |
| Length, mm | 3000 |
| Material | Steel |
| Wire diameter, mm | 4 |
| Integrated partition | None |
| Useful cross section, mm² | 10000 |
| Profile shape | U-shape |
| Stainless steel, pickled | No |
| Wide span model | No |
| Screwless connector | No |
| Product type | Wire mesh cable tray |
| Type | Metal wire mesh trays - "F5 Combitech" |
| Height | 100 mm |
| Length | 3000 mm |
| Material | Electrogalvanised |
| Width | 100 mm |
Accessories
Analogs

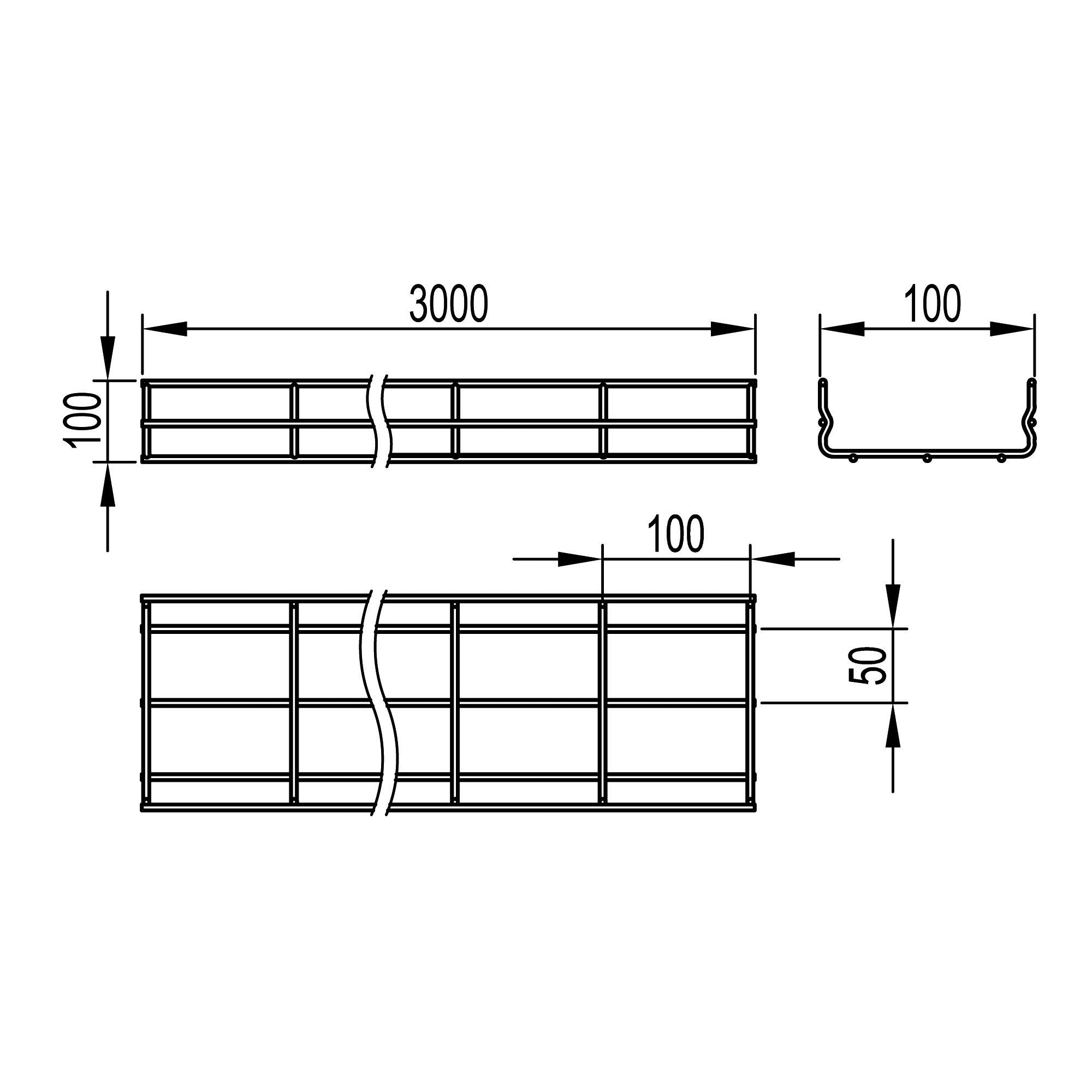

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
|---|---|---|---|---|
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
Certificates
| Name | Document |
|---|---|
