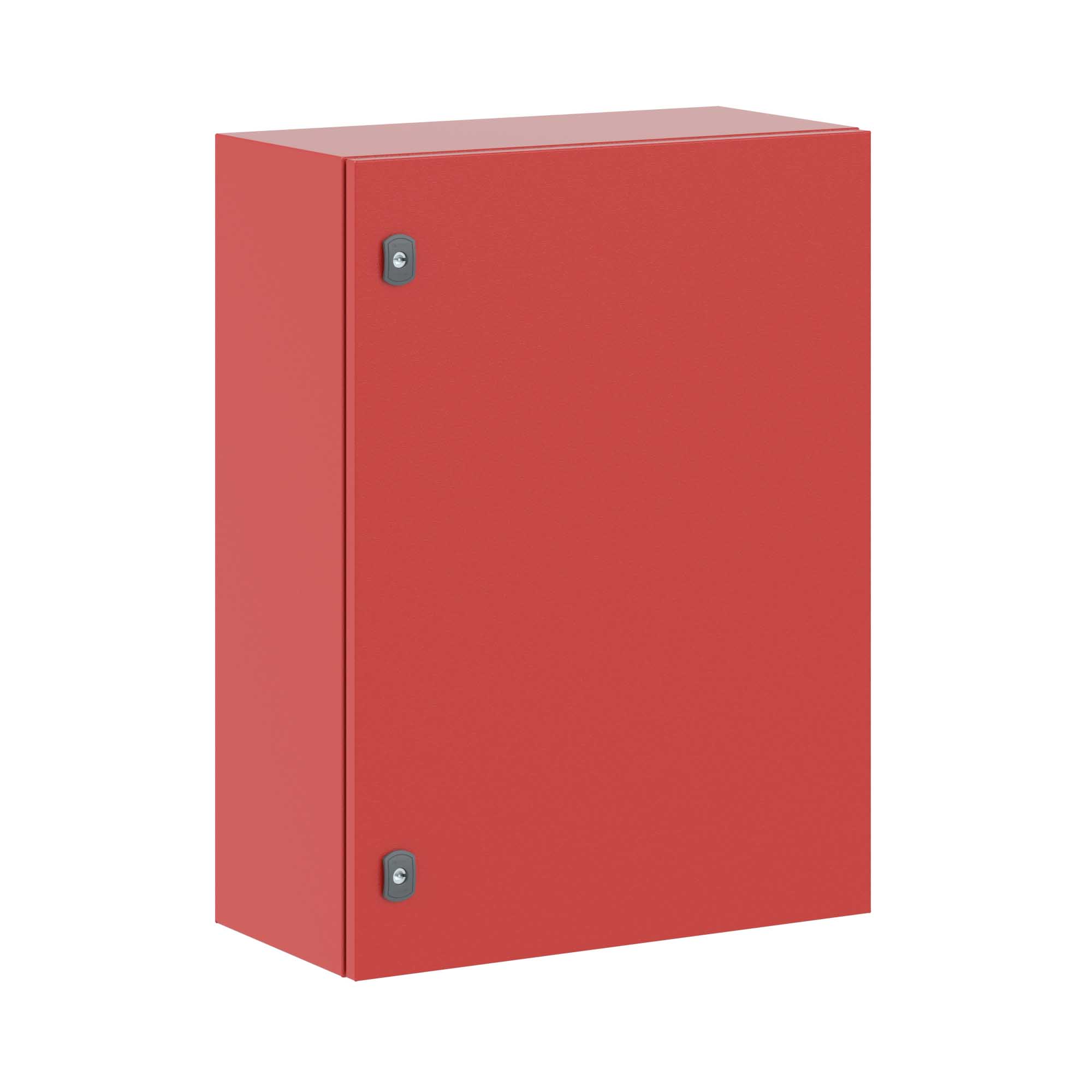

No name

Code: R5ST0863-RAL3000

No name

Code: R5ST0863-RAL3000
Colour Red
Width, mm 600
Height, mm 800
Depth, mm 300
RAL-number 3000
With mounting plate Yes
EMC-version Yes
With glazed door Yes
Material Steel
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable Yes
Tackable Yes
With ventilation door Yes
Surface finishing Powder coating
With backside door Yes
Number of doors 1
Number of locks 2
Enclosure type Wall-mounted
Enclosure specification Special edition
Material Painted steel
Product type Enclosure
