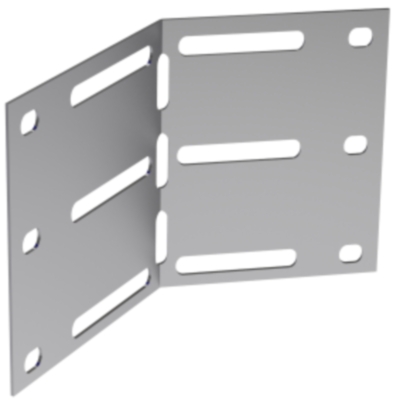

Horizontal swivel connector H 100 mm
Code: UHH010
Horizontal swivel connector H 100 mm
Code: UHH010
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Length, mm | 200 |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | Yes |
| Suitable for cable management system height, mm | 100 |
| Hinged joint horizontal | Yes |
| Hinged joint vertical | Yes |
| Suitable for circuit integrity | Yes |
| Suitable for cable management system width, mm | 50...600 |
| Colour | Light grey |
| Model | Corner joint |
| Type of connection | Screw connector |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Height | 100 mm |
| Thickness | 2 mm |
| Material | Pre-galvanized |

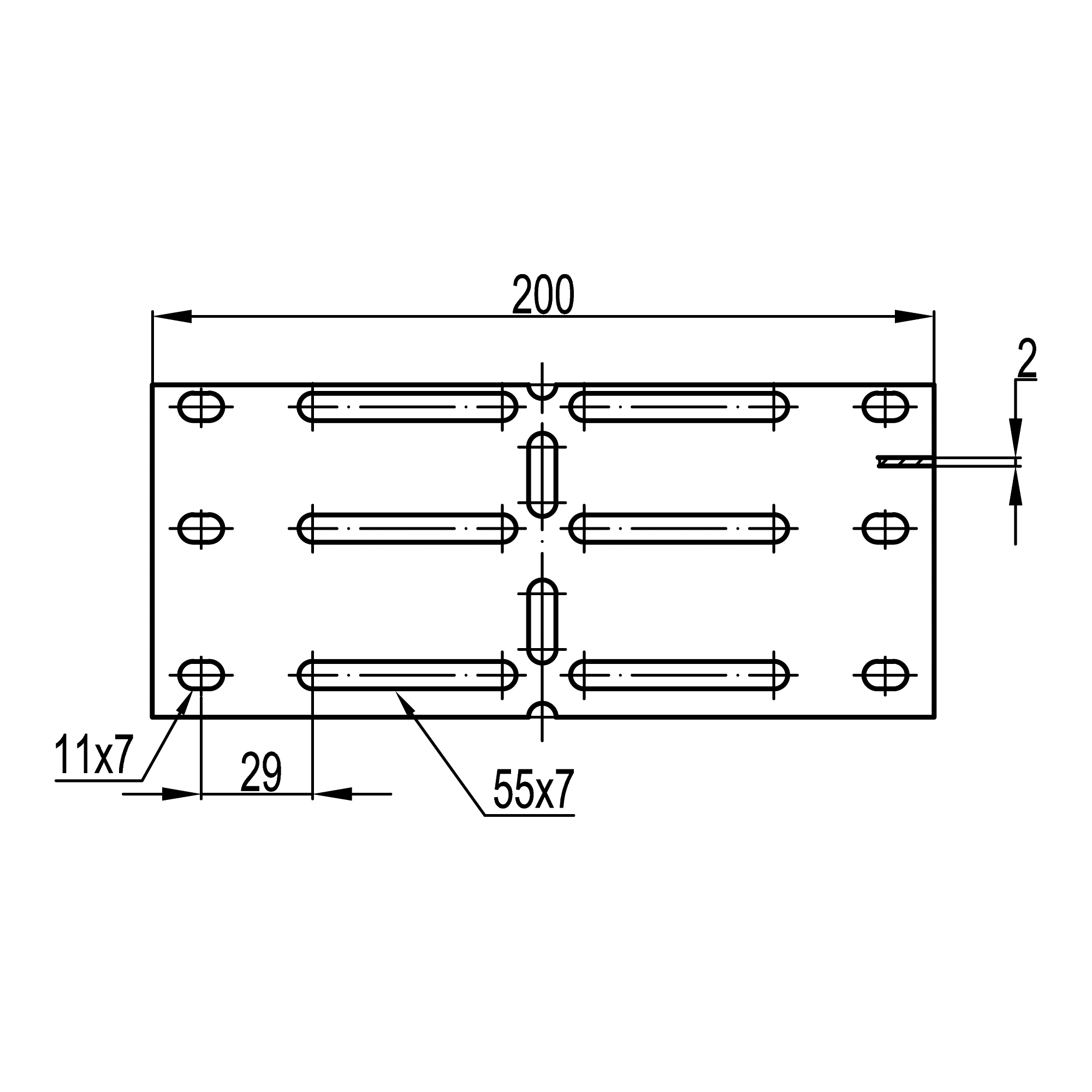

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
