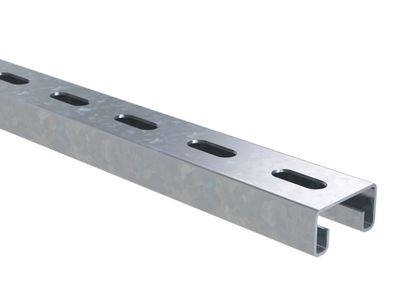

C-profile 41x21, L300 thickness 2,0 mm, hot dip galvanized

Code: BPV2103HDZ

C-profile 41x21, L300 thickness 2,0 mm, hot dip galvanized

Code: BPV2103HDZ
Model Singular profile
Height, mm 21
Surface protection Hot-dip galvanized
Material thickness, mm 2
Length, mm 300
Material Steel
Type of perforation Back perforated
Profile shape C-profile
Slit width, mm 10.5
Hole width, mm 10.5
Suitable for circuit integrity Yes
Colour Light grey
Material Hot-dip galvanized
Accessories

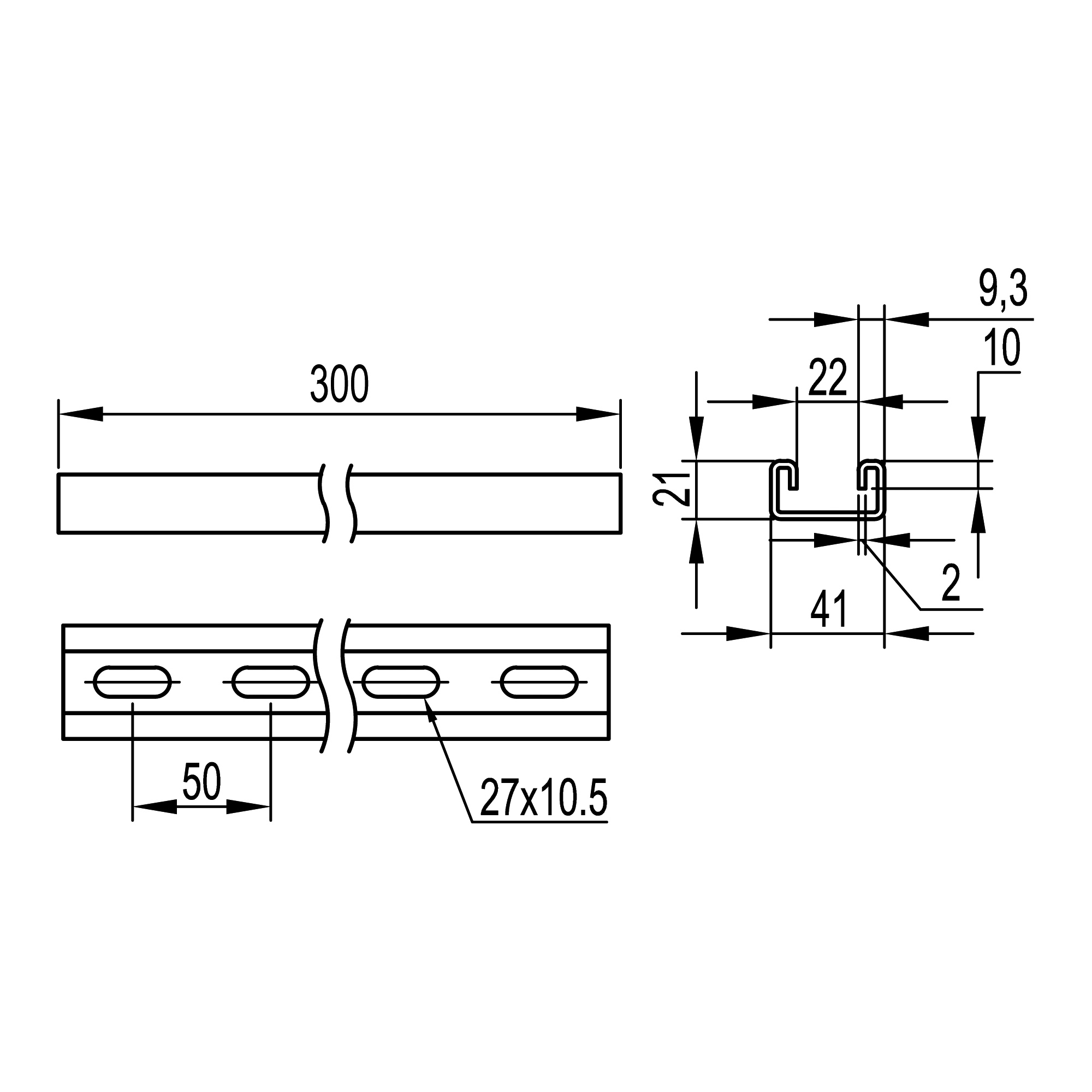

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
