| Number of poles | 5 |
| Rated frequency, Hz | 50...60 |
| Material | Aluminium |
| IEC-amperage, A | 160 |
| Connection system | Screwed terminal |
| Angle of plug | Straight |
| Rated voltage, V | 690...690 |
| Degree of protection (IP) | IP67 |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Flange size vertical, mm | 140 |
| Flange size horizontal, mm | 140 |
| Height | 140 mm |
| GWFI | +960 °С |
| Q'ty of poles | 3P+E+N |
| Temperature of operation | +40 °С |
| Material of case | Aluminium |
| Voltage | 400V |
| Clock position | 6h |
| Degree of protection | IP67 |
| -5°С ... +60°С | -25 °С...+40 °С |
| Temperature of dinamic operation | -25 °С...+40 °С |
| Temperature of static operation | -40 °С...+40 °С |

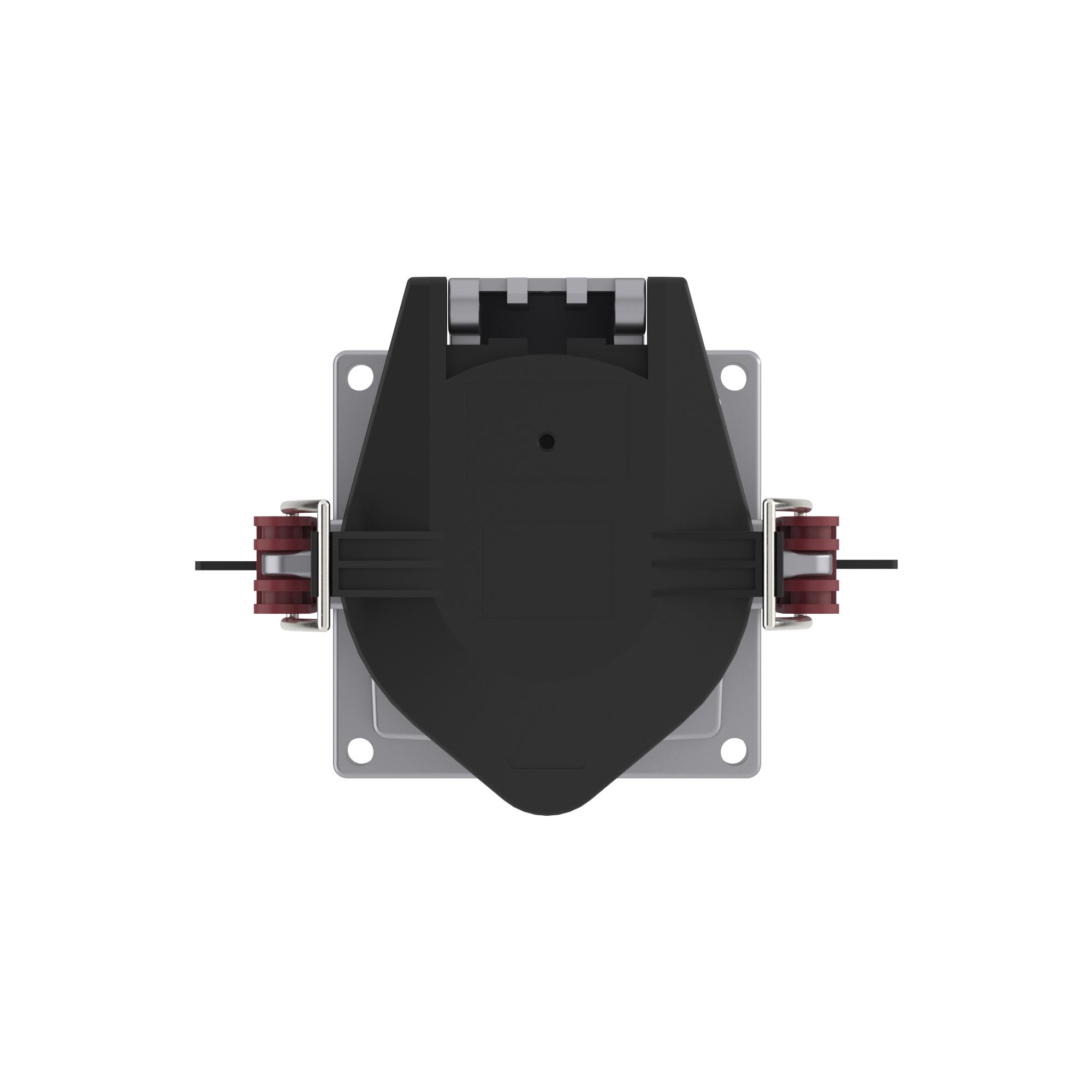

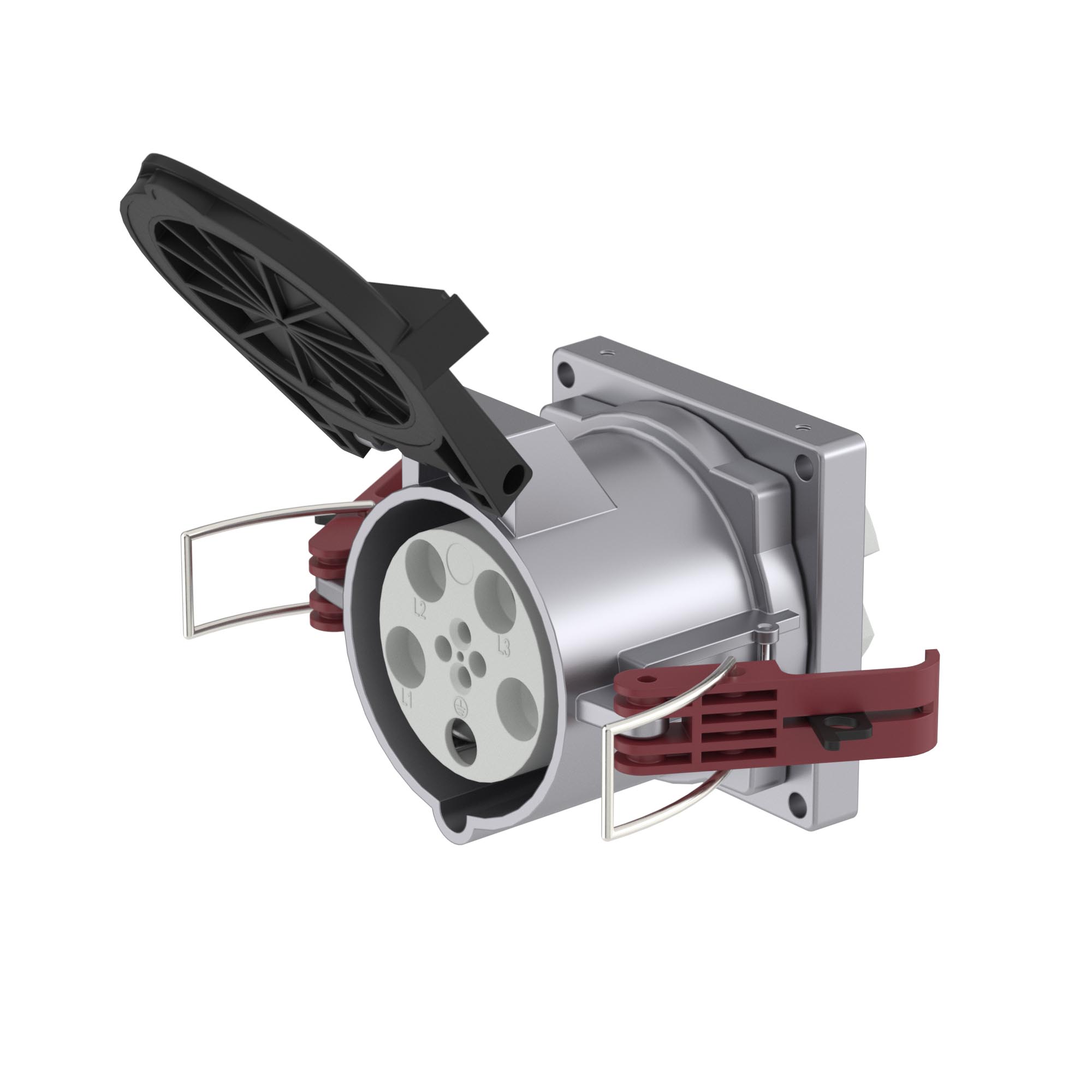

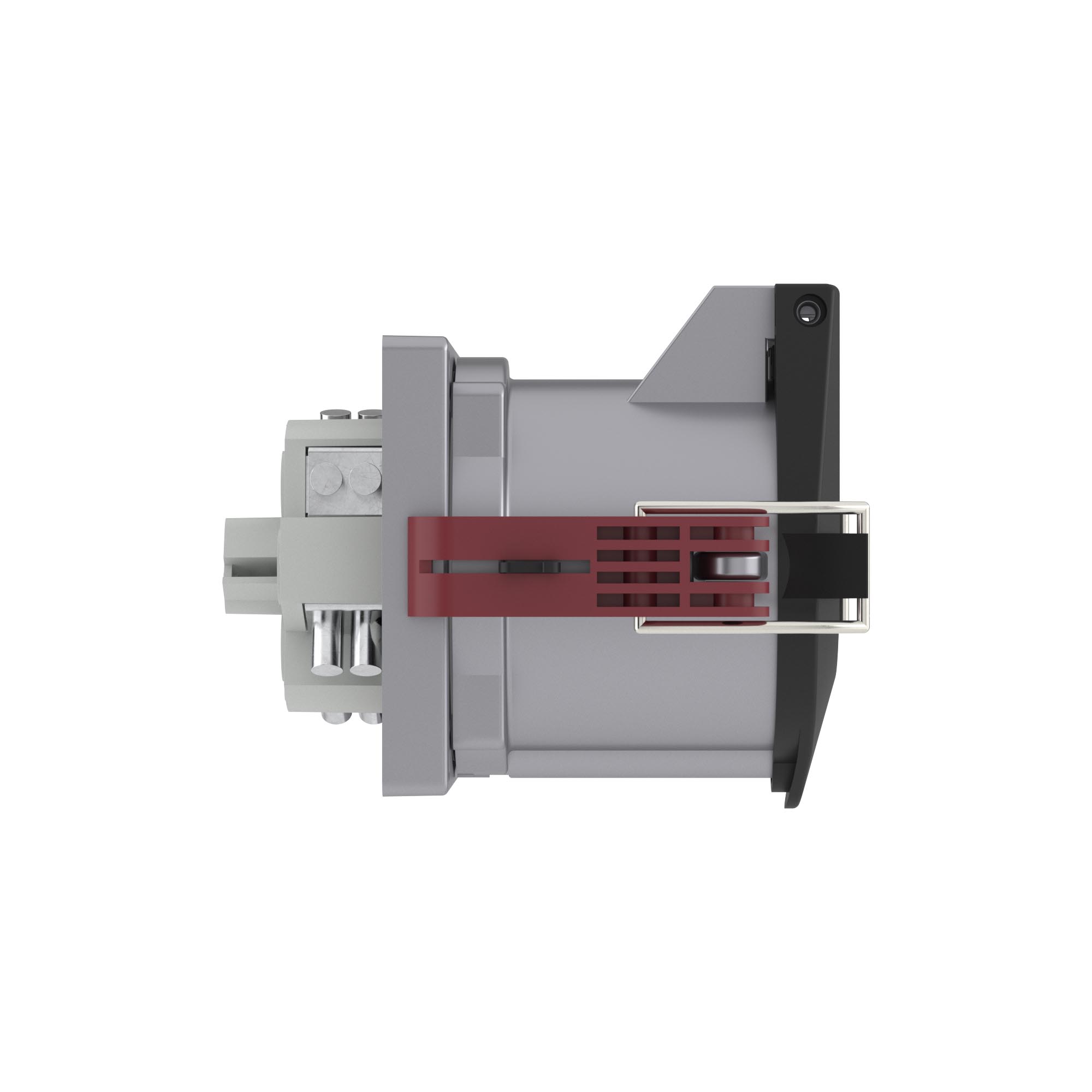

| Product type | Flush-mounting socket |
| Current | 160 A |
| Color | Red |
| Width | 178 mm |
| от -25°С до +60°С | -40 °С...+60 °С |
