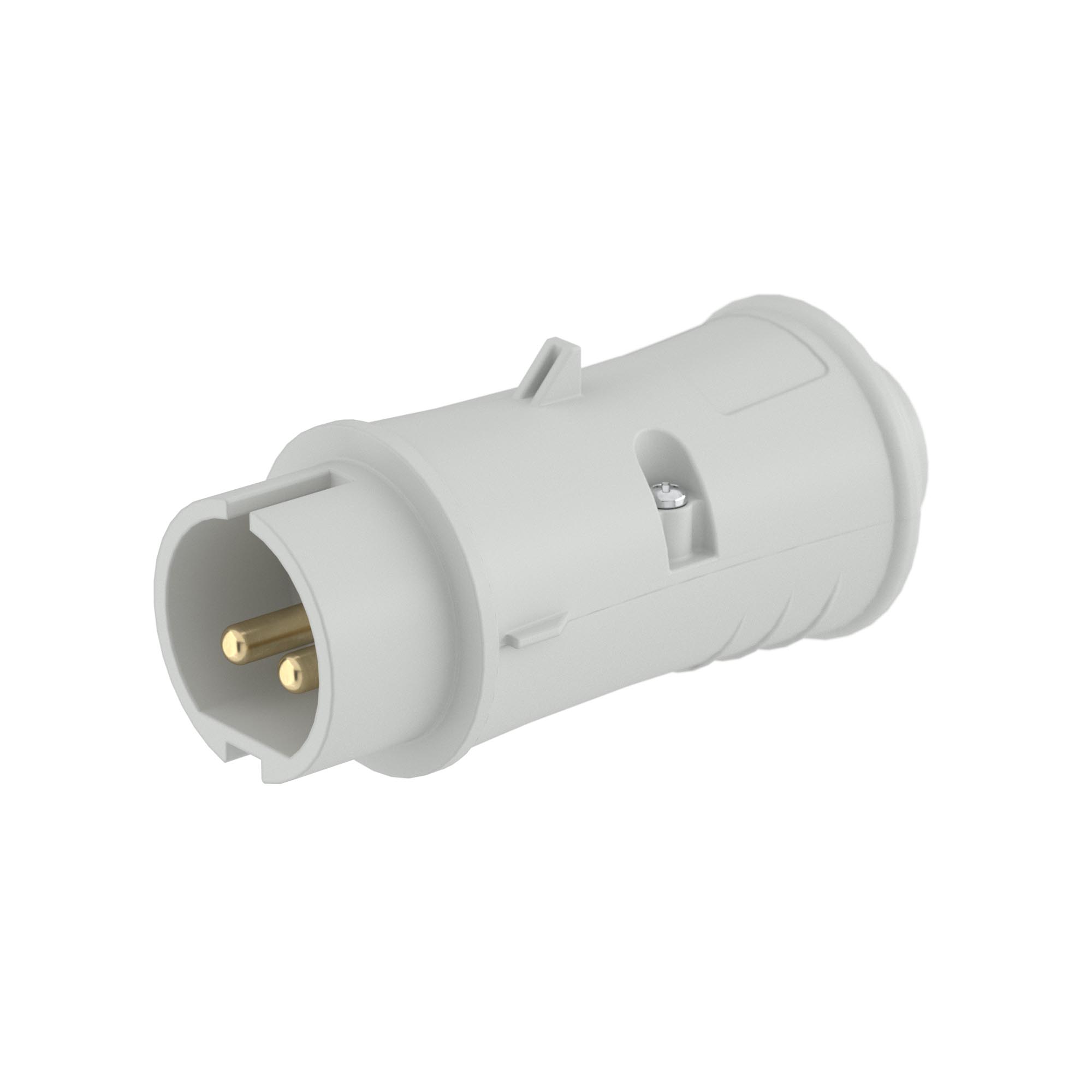

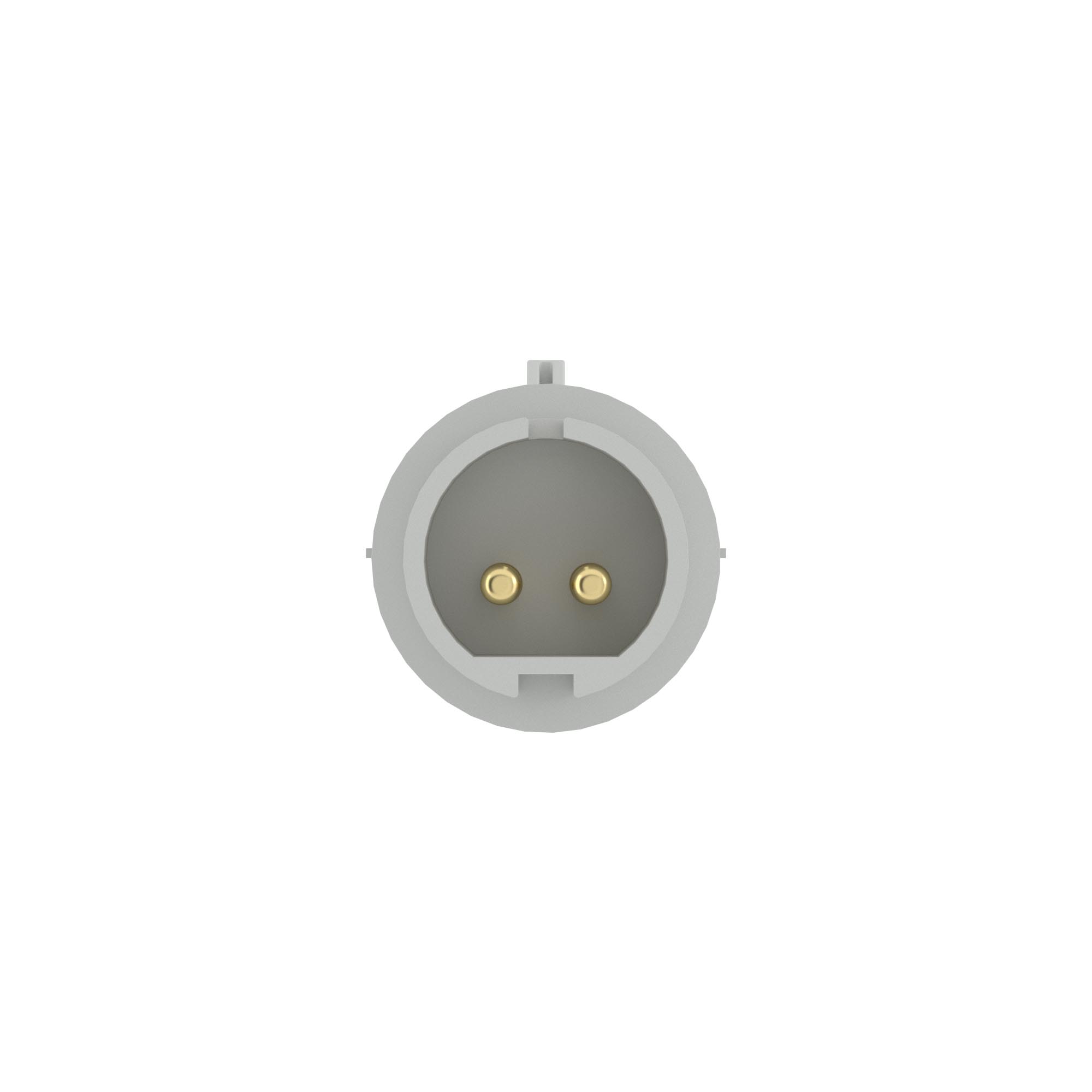

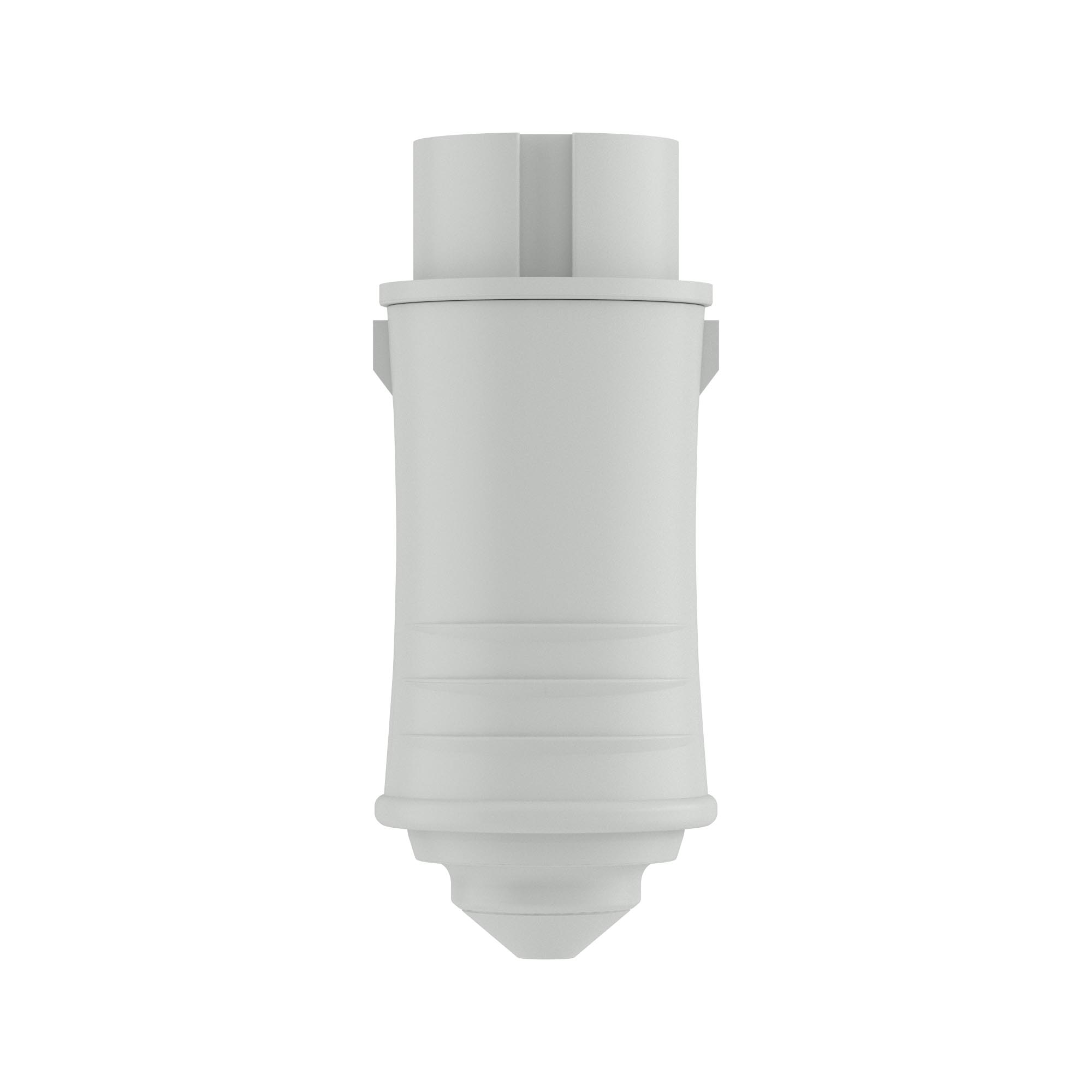

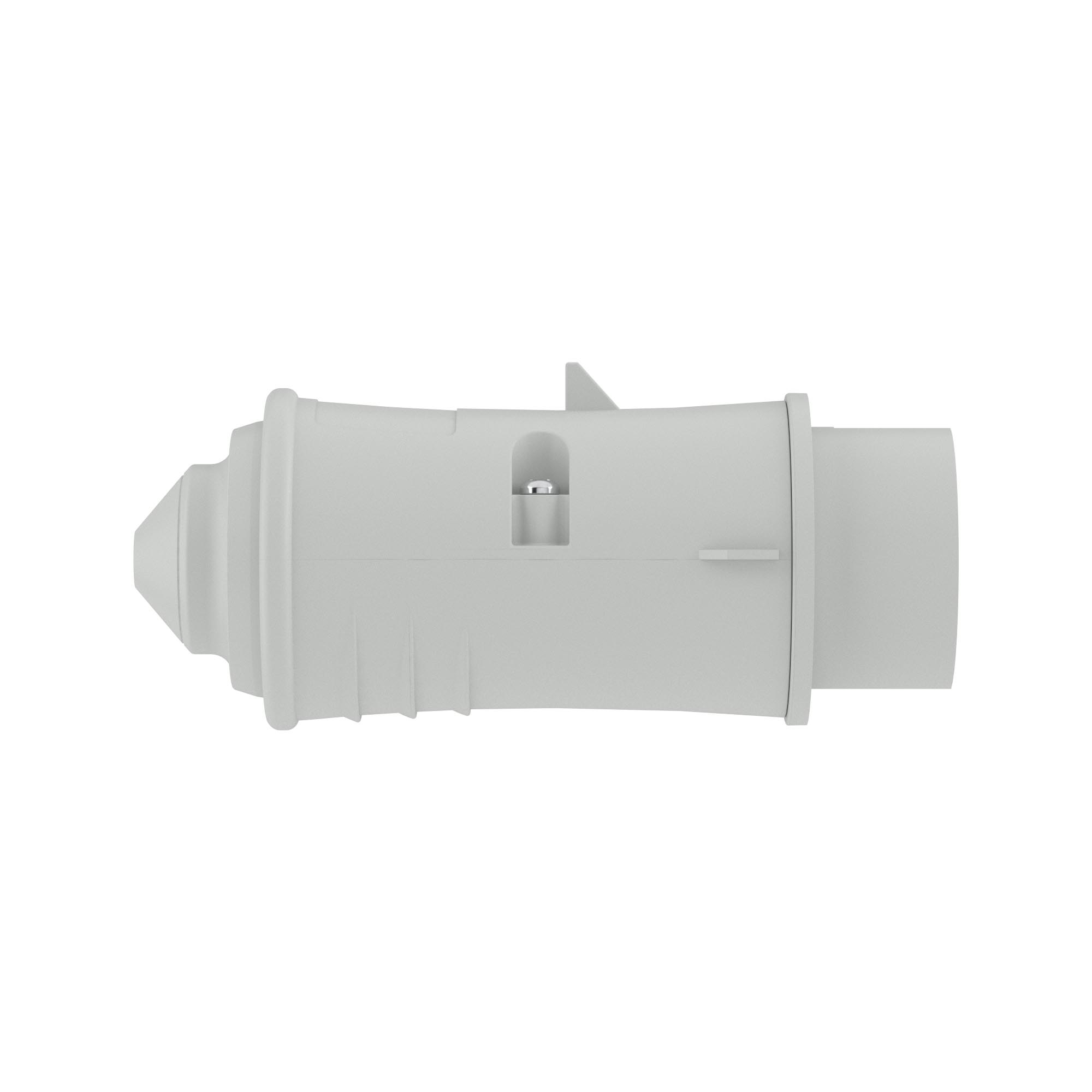

Cable Plug CP IP44 32A 2P 50V

Code: CP024-032-05
Code: CP024-032-05
  • To ask a question
Phase inverter No
Cable entry Swivel
Number of poles 2
Material Plastic
IEC-amperage, A 32
Connection system Screwed terminal
Angle of plug Straight
Degree of protection (IP) IP44
Identification colour White
Voltage according to EN 60309-2 40-50 V (50+60 Hz) white
GWFI +850 °С
Q'ty of poles 2P
Temperature of operation +40 °С
Material of case Ployamide
Voltage 50V
Degree of protection IP44
-5°С ... +60°С -25 °С...+40 °С
Temperature of dinamic operation -25 °С...+40 °С
Temperature of static operation -40 °С...+40 °С
Product type Cable plug
Current 32 A
Color White
