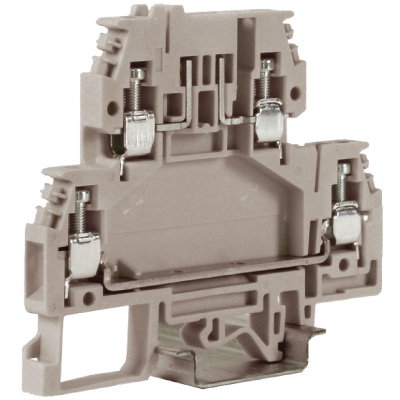

DSFA.4 FUSE TERMINAL BLOCK
Code: ZDA100
DSFA.4 FUSE TERMINAL BLOCK
Code: ZDA100
| Model | Other |
| Rated permanent current Iu, A | 15…32 |
| Number of poles | 2 |
| Distance between rail centre, 50 mm | No |
| Distance between rail centre, 40 mm | No |
| Distance between rail centre, 60 mm | No |
| Construction size fuse insert | Other |
| Distance between rail centre, 100 mm | No |
| Distance between rail centre, 185 mm | No |
| Type of electrical connection of main circuit | Screw connection |
| Double interrupting | No |
| Max. rated operation voltage Ue AC, V | 400 |
| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 4 mm² |
| Width | 6 mm |
| Q'ty of poles | 4 |
| Number of levels | 2 |
| Knife disconnect | Disconnector |
Accessories
Drawings
| Seria | Name | STEP | Eplan |
|---|---|---|---|
|
DIN- rail mounting terminal blo -"Quadro"
|
|
||
|
DIN- rail mounting terminal blo -"Quadro"
|
|
