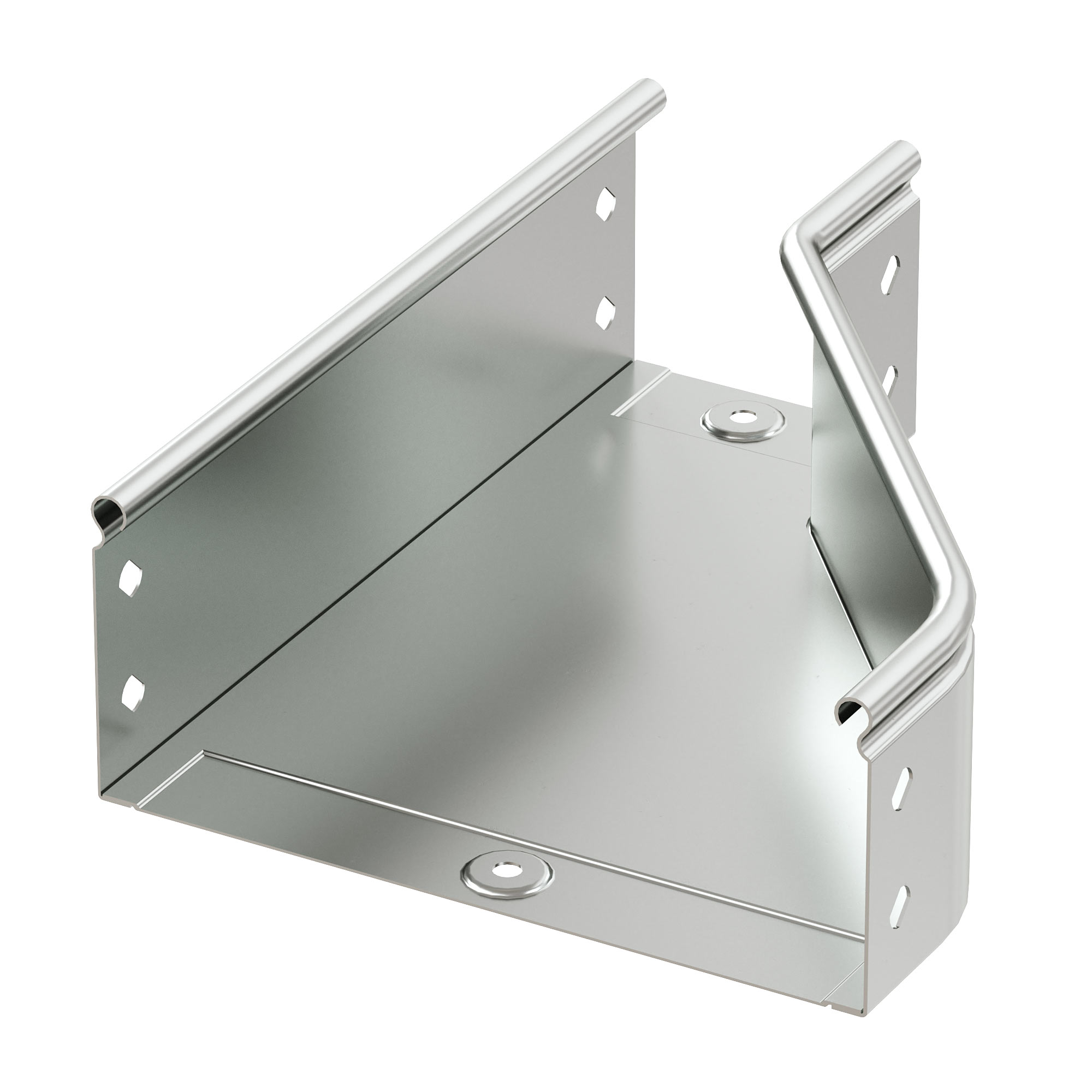

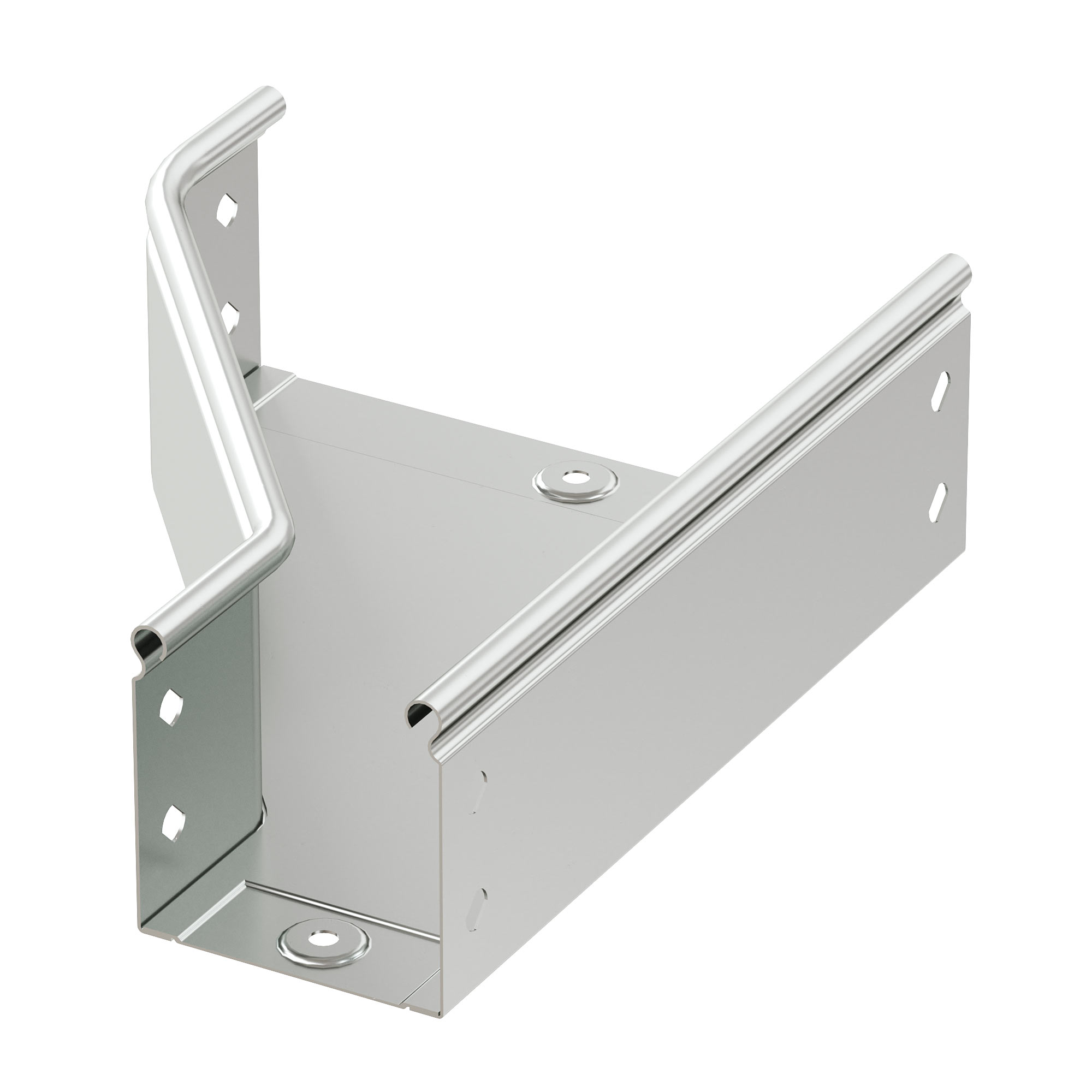

Left-side RRS adapter 600-400 h 50, included with fasteners (joint plates GTO, screws, nuts)
Code: 36467K
Left-side RRS adapter 600-400 h 50, included with fasteners (joint plates GTO, screws, nuts)
Code: 36467K
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Galvanic/electrolytic zinc plated |
| Construction type | Reducing to the left |
| Width (big), mm | 600 |
| Width (small), mm | 400 |
| Material | Steel |
| Cable tray height, mm | 50 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Mounting accessories |
| Type of accessories | Left-side adapter |
| Height | 50 mm |
| Thickness | 0.8 mm |
| Material | Pre-galvanized |
| Width | 400 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37301 | Joint Plate h. 50 | 4 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
| CM010610 | Square neck bolt М6х10 | 12 pcs |
| CM100600 | Hexagon nut with serrate flange М6 | 12 pcs |

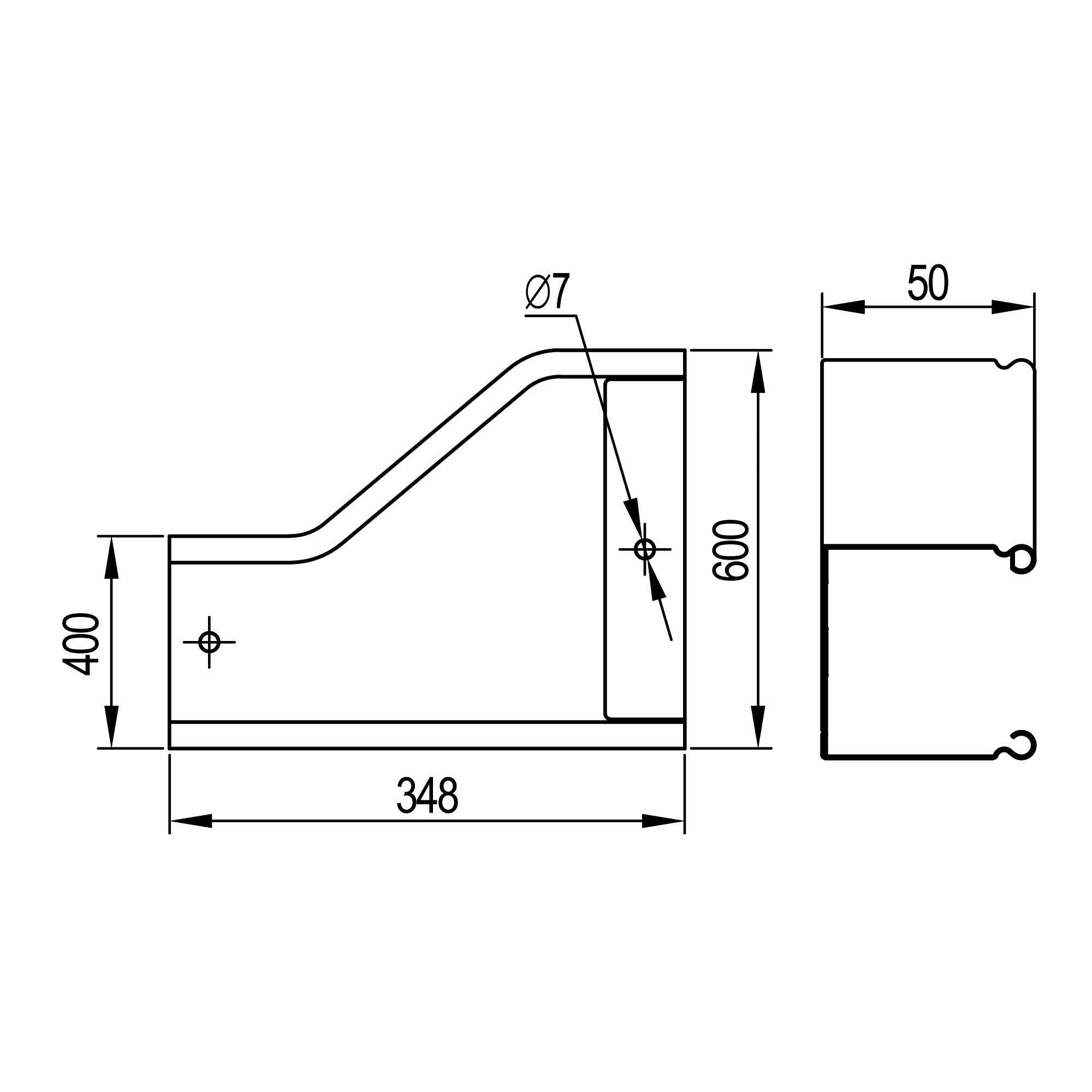

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
