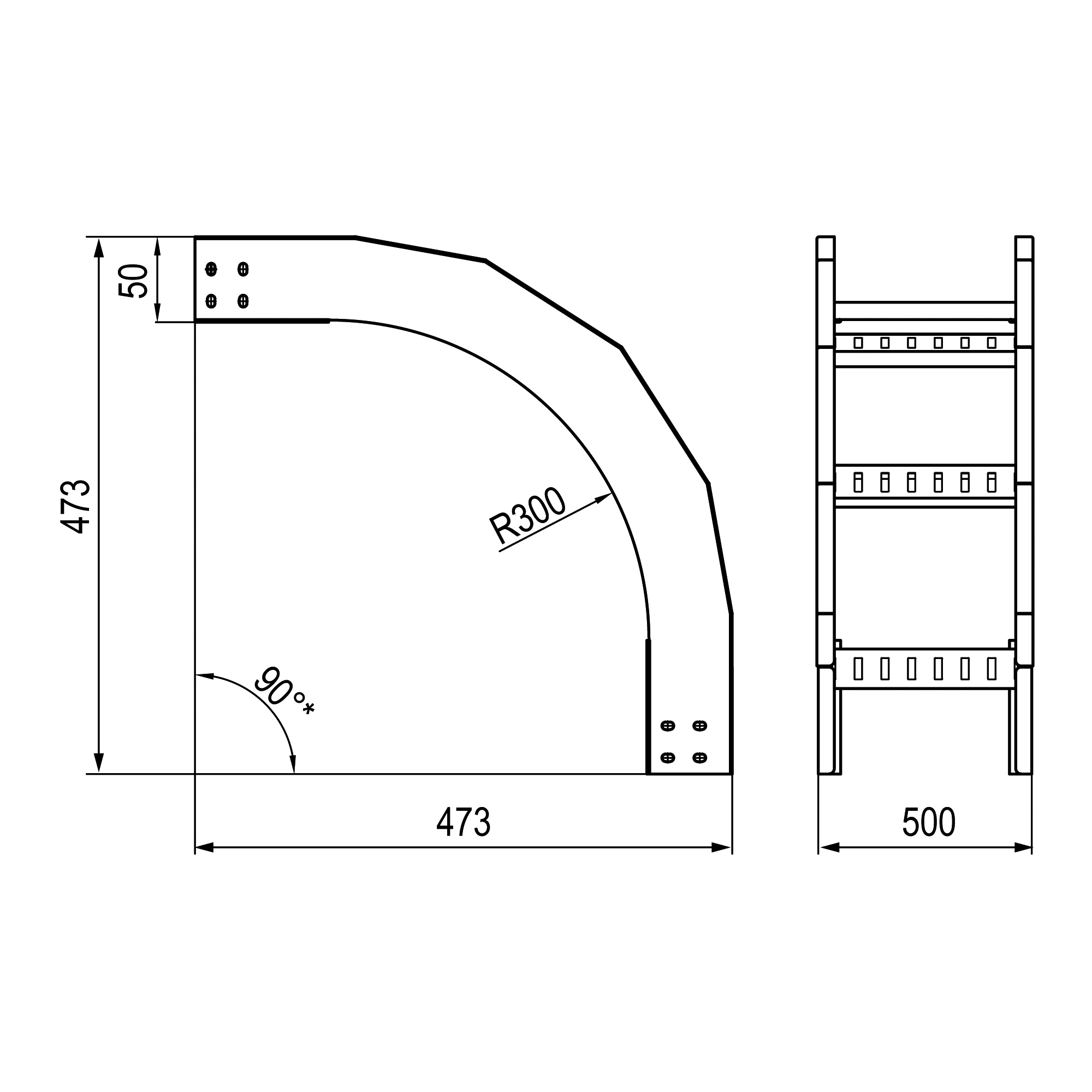

External vertical angle 90° 50x500, R300, included with fasteners (joint plates GTO, screws, nuts), thick. 1,5 mm, hot galvanizing method

Code: LIO5350KHDZ
External vertical angle 90° 50x500, R300, included with fasteners (joint plates GTO, screws, nuts), thick. 1,5 mm, hot galvanizing method
External vertical angle 90° 50x500, R300, included with fasteners (joint plates GTO, screws, nuts), thick. 1,5 mm, hot galvanizing method
Code: LIO5350KHDZ
  • To ask a question
  • Characteristics
  • Promo
  • Viewed items
Type of side joist Profile (open)
Type of rung Perforated profile
Deflection (angle) 90°
Cable ladder height, mm 50
Cable ladder width, mm 500
Model Included connector
Material Steel
Material quality Steel
Surface protection Hot-dip galvanized
Colour Light grey
Change of direction Vertically declining
Hinging No
Product type System accessories
Type of accessories 90º vertical external bend
Width 500 mm
Height 50 mm
Material Hot-dip galvanized
