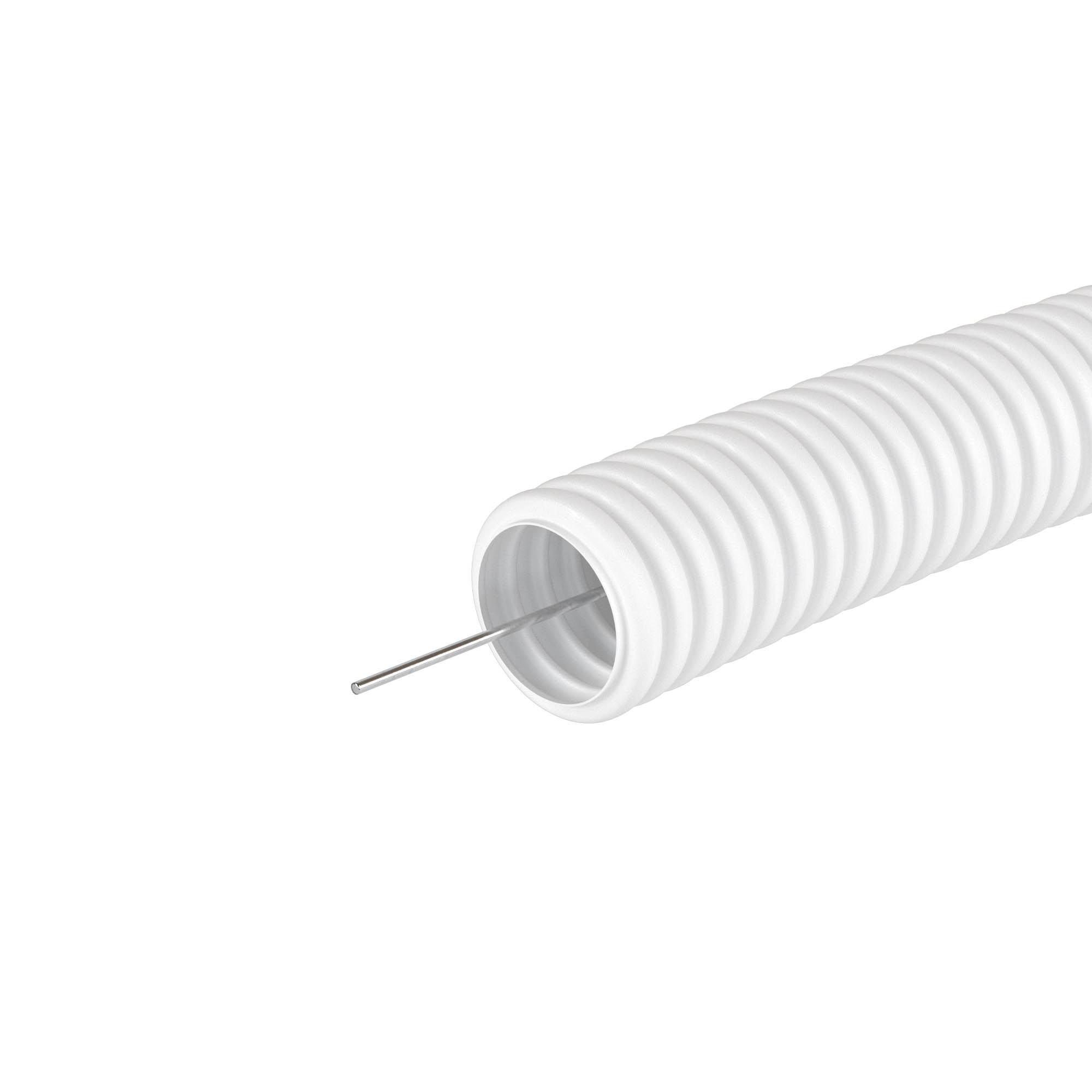

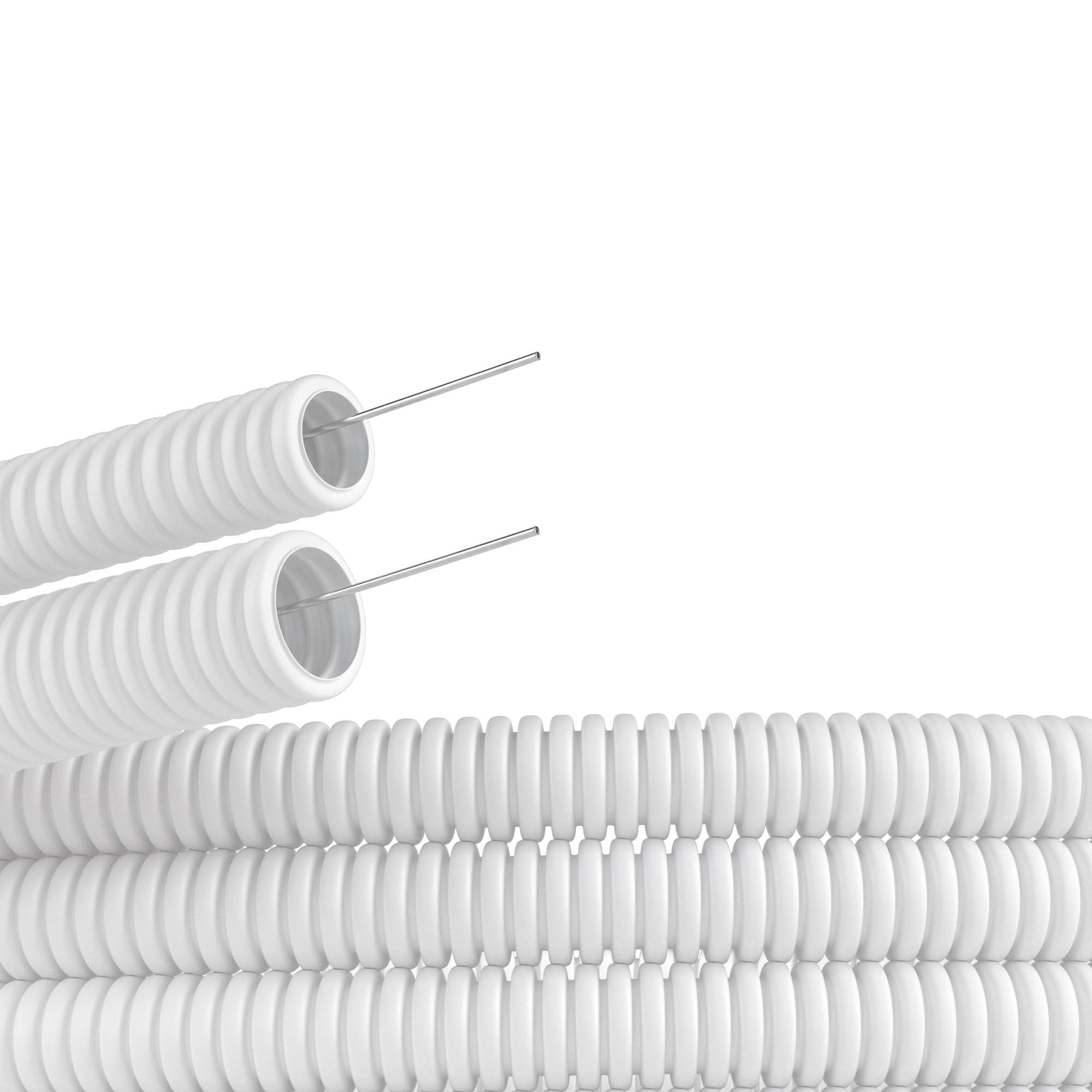

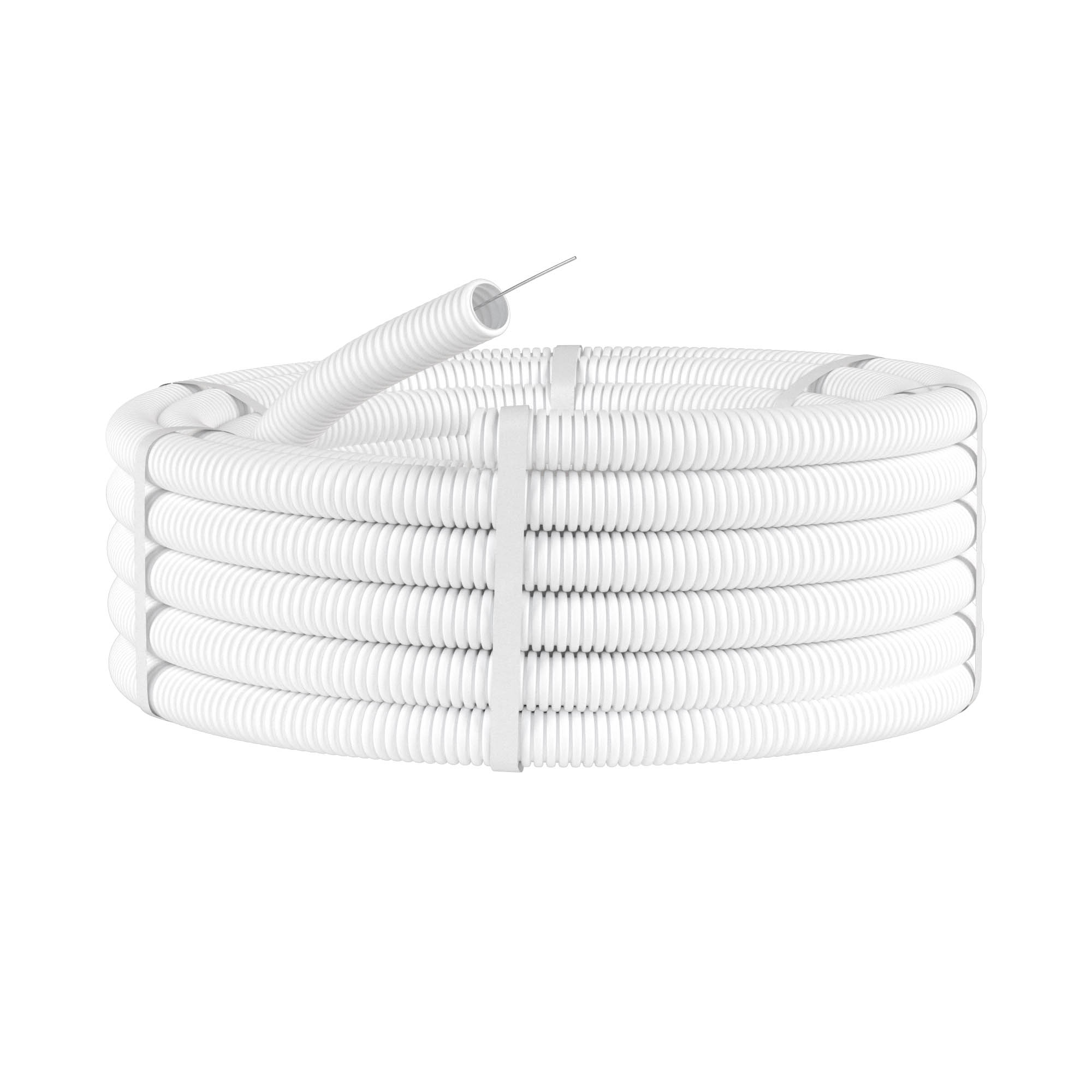

Tube PO flexible corrugated halogen-free, Ø 20 mm, with pull, 100 m, white color
Code: 81820
Tube PO flexible corrugated halogen-free, Ø 20 mm, with pull, 100 m, white color
Code: 81820
Colour | White |
Outer diameter, mm | 19.7 |
UV resistant | No |
Halogen free | Yes |
Inner diameter, mm | 14.8 |
Compressive strength, N | 125 |
Operational temperature, °C | -15...90 |
Fire resistance according to UL94 | V0 |
Bending radius, static, mm | 40 |
Flame accelerating | No |
Tensile strength, N | 200 |
Nominal diameter, mm | 20 |
Nominal size in inch | 3/4 inch |
Degree of protection (IP) | IP55 |
Bending strength | Flexible |
Sheathing material | Not sheathed |
With draw wire | Yes |
-5°С ... +60°С | -15°С ... +90°С |
Ingress Protection rating, IP | IP55 |
от -25°С до +60°С | from -15°С to +90°С |
Shock resistance, J | 0,5 at -15°С |
Cord for wires | No |
ТУ 2248-012-47022248-2009 | Technical specifications 3491-052-47022248-2016 |
3 года | 2 years |
15 лет | 15 years |
Length | 100000 mm |
8 диаметров мм | 2 diameters mm |
Product type | Tube PO flexible corrugated |
