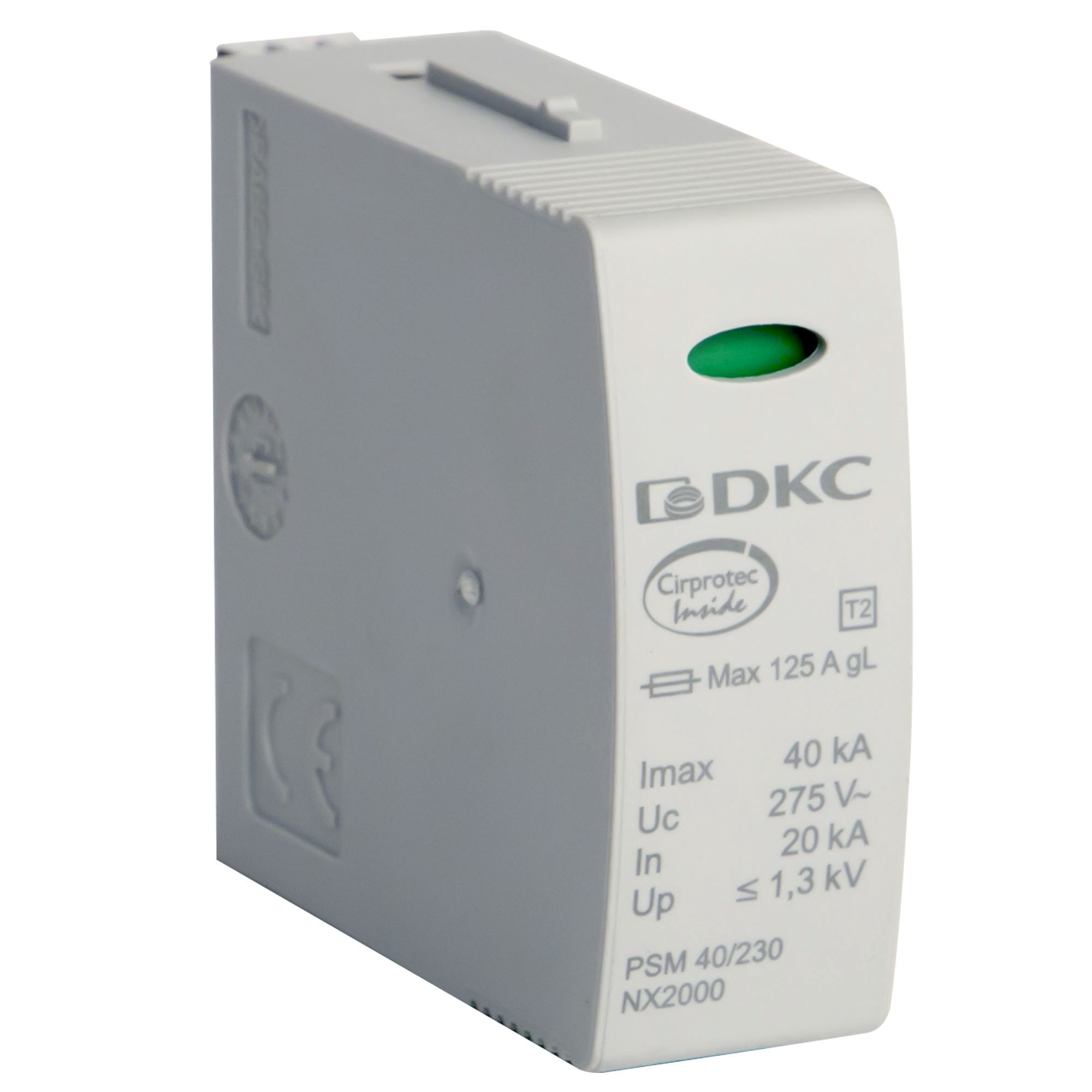

Plug-in modules, Type II, L-N
Code: NX2000
Plug-in modules, Type II, L-N
Code: NX2000
Mounting method | On basic element |
With remote signalling contact | No |
Construction size | 1 modular spacing |
Voltage protection level, kV | 1.3 |
Max. continuous voltage AC, V | 275 |
Nominal discharge surge current (8/20), kA | 20 |
Nominal voltage AC, V | 230 |
Voltage protection level L-N, kV | 1.3 |
Signalling at the device | Optic |
Integrated backup fuse | No |
Max. conductor cross section solid (solid, stranded), mm² | 35 |
Max. conductor cross section flexible (fine-strand), mm² | 25 |
Degree of protection (IP) | IP20 |
Max. discharge surge current (8/20), kA | 40 |
System configuration TN-C-S | No |
System configuration other | No |
System configuration TT | Yes |
System configuration TN-S | Yes |
System configuration TN-C | Yes |
System configuration TN | No |
System configuration IT | Yes |
System configuration DC | No |
Short-circuit breaking capacity (Isccr), kA | 25 |
