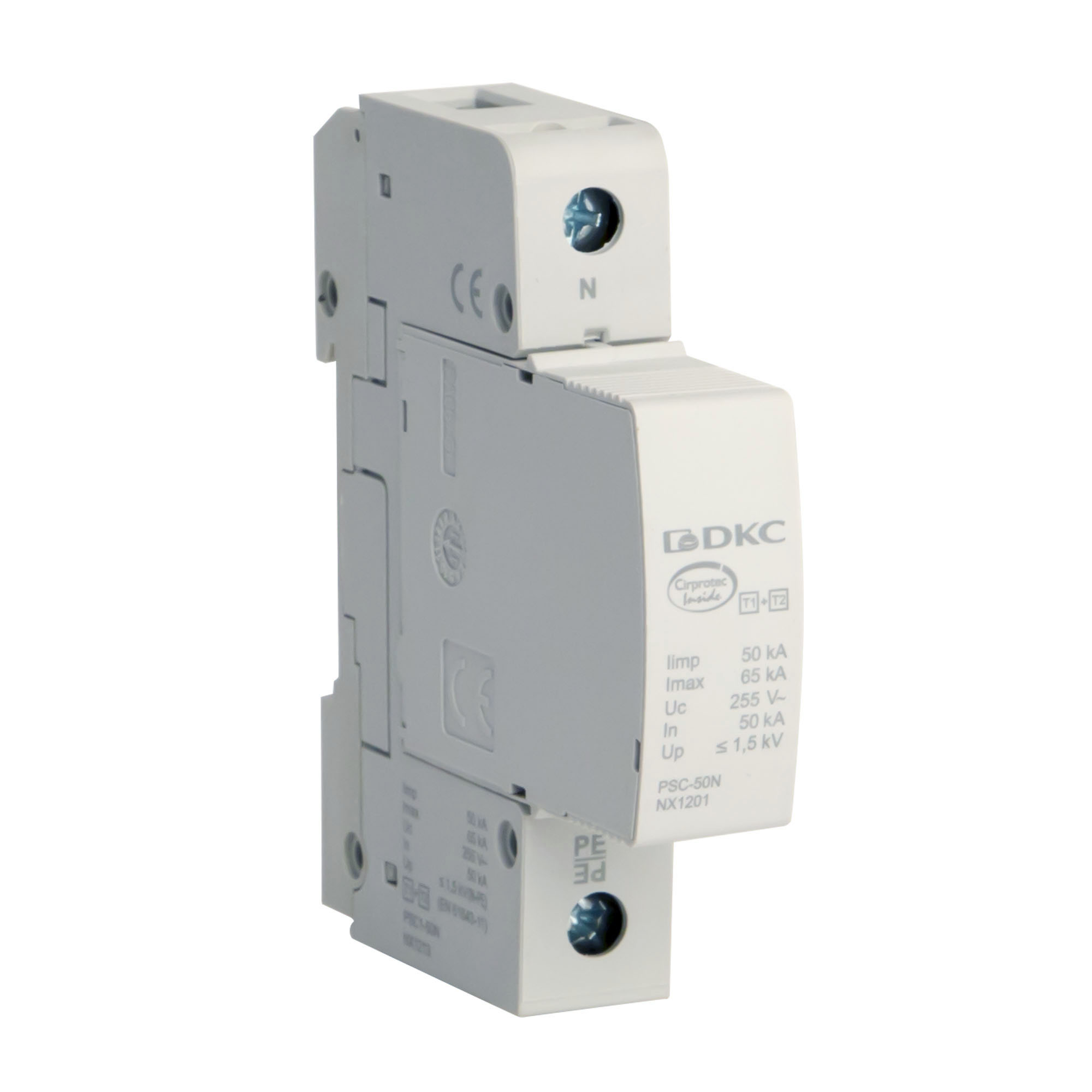

Type I+II SPD, 1P, N-PE, 50kА
Code: NX1213
Type I+II SPD, 1P, N-PE, 50kА
Code: NX1213
Mounting method | DIN rail (top hat rail) 35 mm |
Construction size | 4 modular spacing |
Voltage protection level, kV | 1.5 |
Nominal discharge surge current (8/20), kA | 50 |
With remote signalling contact | No |
Max. continuous voltage AC, V | 255 |
Signalling at the device | Optic |
Voltage protection level N-PE, kV | 1.5 |
Integrated backup fuse | No |
Max. conductor cross section solid (solid, stranded), mm² | 35 |
Max. conductor cross section flexible (fine-strand), mm² | 25 |
Degree of protection (IP) | IP20 |
Max. discharge surge current (8/20), kA | 65 |
System configuration TN-C-S | No |
System configuration other | No |
System configuration TT | Yes |
System configuration TN-S | No |
System configuration TN-C | No |
System configuration TN | No |
System configuration IT | No |
System configuration DC | No |
Short-circuit breaking capacity (Isccr), kA | 25 |
