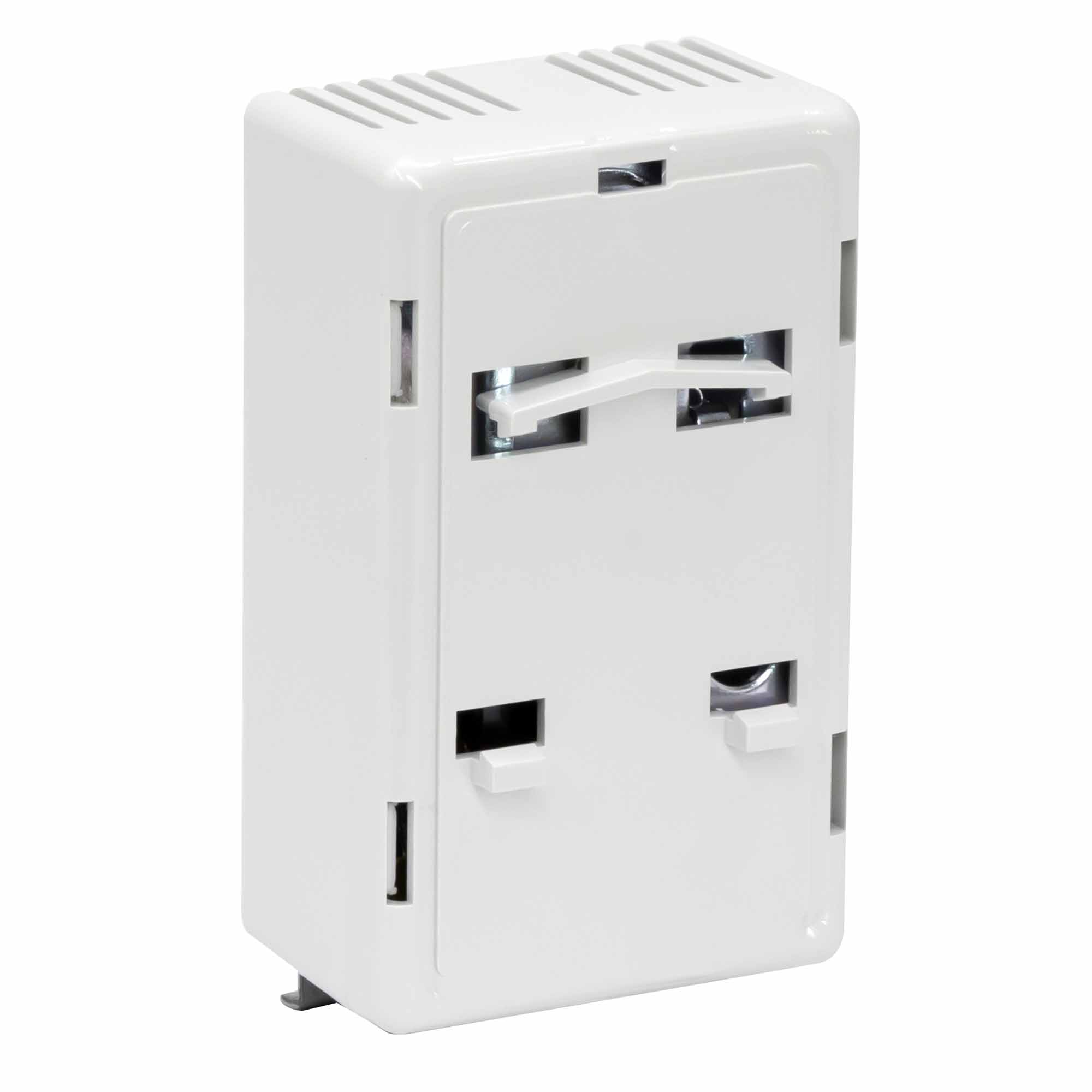

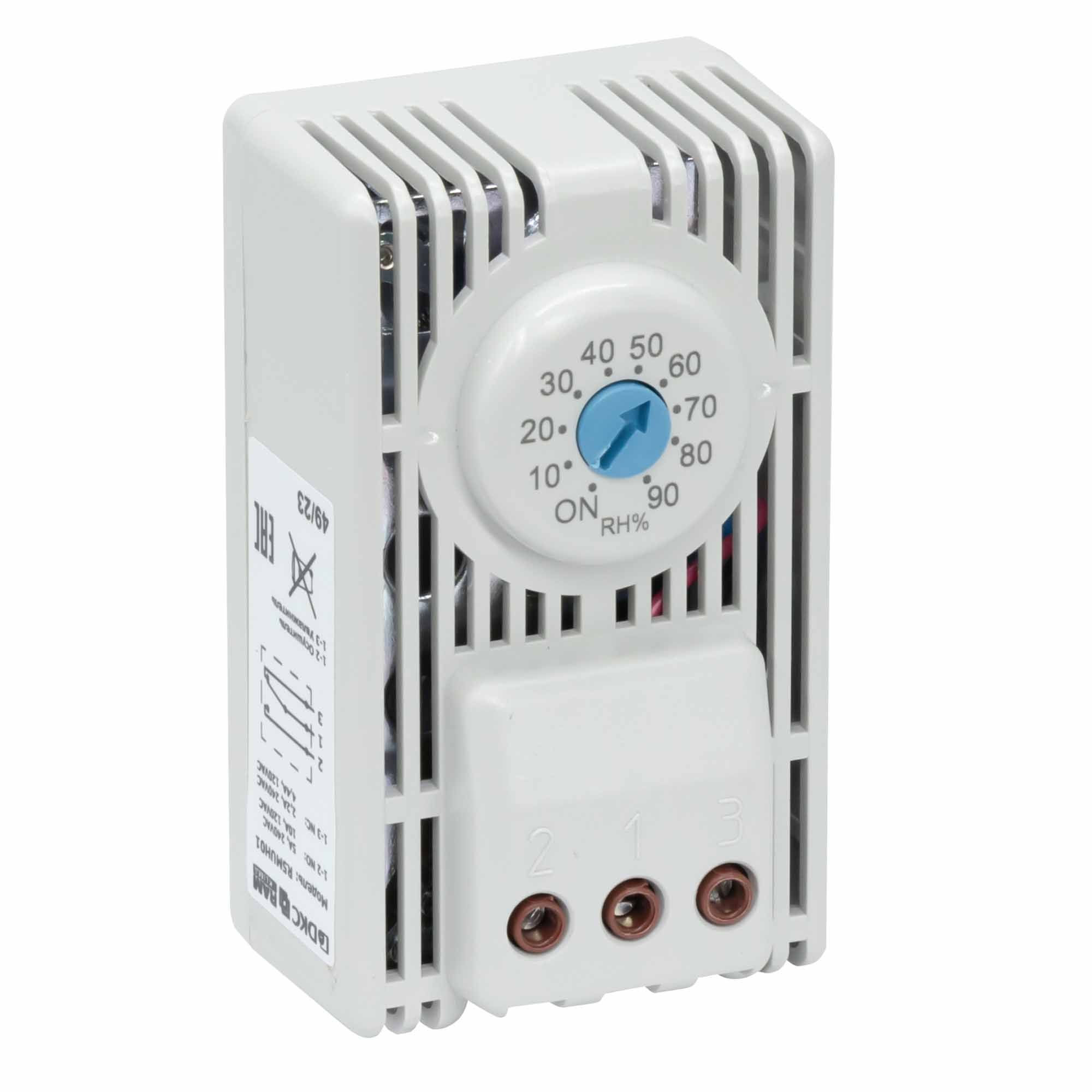

Hygrostat, setting relative humidity range 10...90%, switching contact
Code: R5MUH01
Hygrostat, setting relative humidity range 10...90%, switching contact
Code: R5MUH01
Mounting method | Other |
With digital indication | Нет |
Type of switch function | Change-over contact |
Adjustable setting value for relative air humidity, % | 10…90 |
Product type | Control and Regulation |

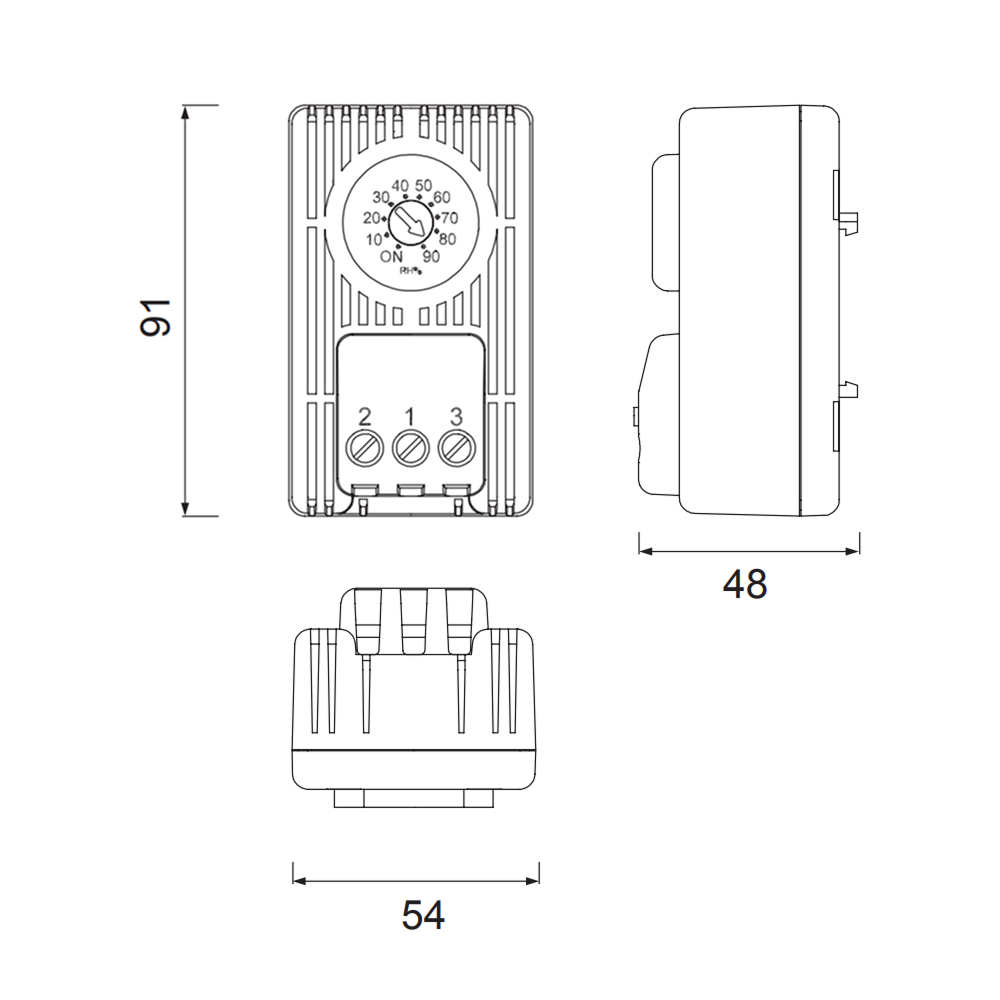

External dimensions (W x H x D), mm | 54 x 48 x 91 |
Relative Humidity setting range, % | from 10 to 90 |
Contact type | Change over |
Precision, % | ±5 |
Hysteresis, % | 5 |
Drawings
