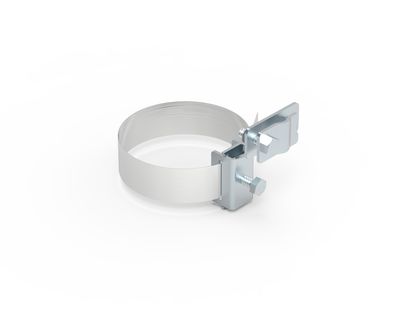

Pipe clamp, D20-80 mm
Code:
NG3002
Pipe clamp, D20-80 mm
Code:
NG3002
| Mounting type conductor | With screw clamp |
| Mounting type holder | Rain pipe |
| Pipe chucking range, mm | 20...80 |
| Material of holder | Stainless steel V2A |
| Material of carrier | Stainless steel V2A |
| Suitable for diameter round conductor, mm | 8...10 |
| Material base part | Stainless steel V2A |
| Suitable for width flat conductor, mm | 25...25 |
| Product type | Holders |
| Material | Stainless steel |
| Fixed conductor | wire, 8-10 mm/ strip, 25 mm |
| Application area | metal pipe |
| Mounting type conductor | screw clamp |
| Clamping range | 20-80 mm |
