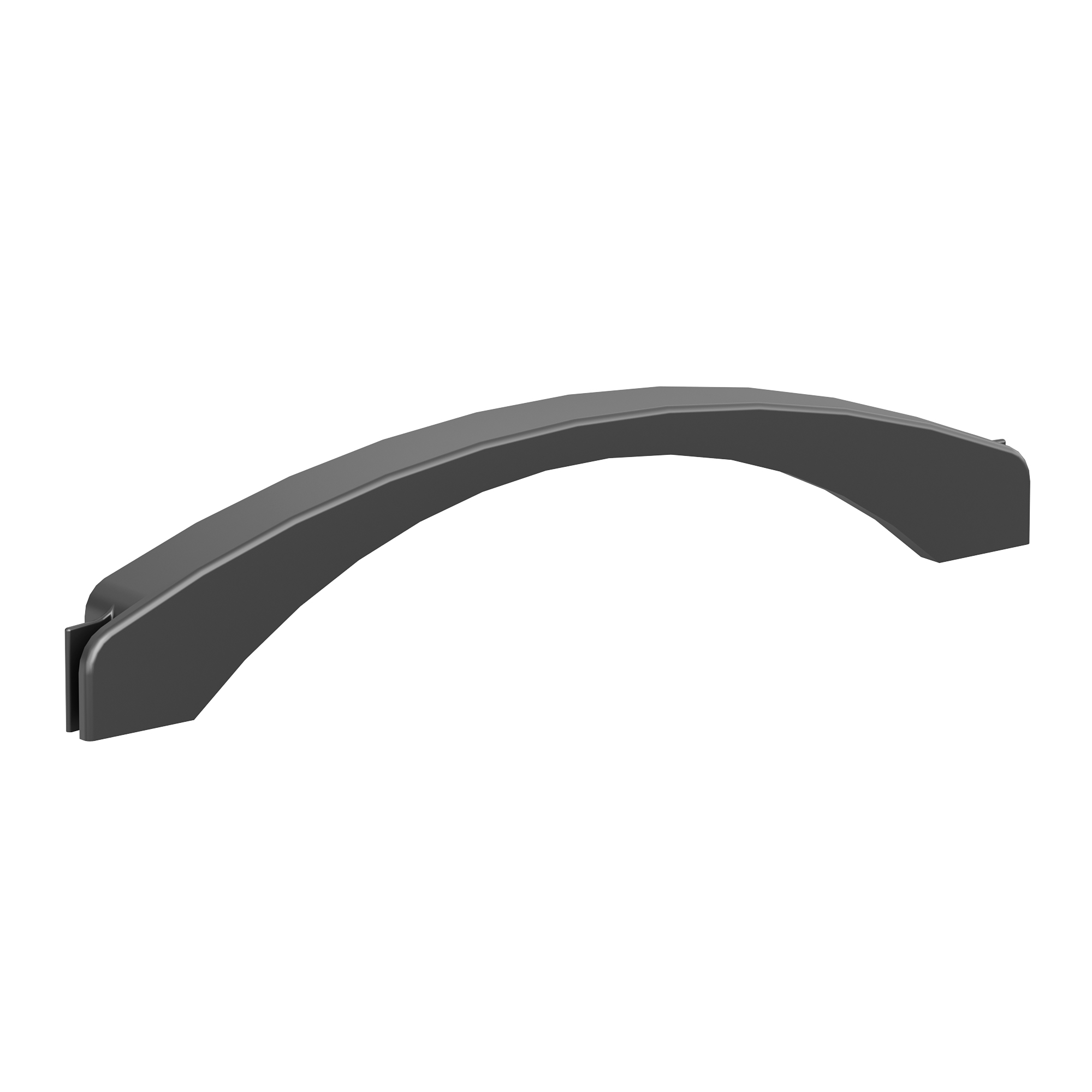

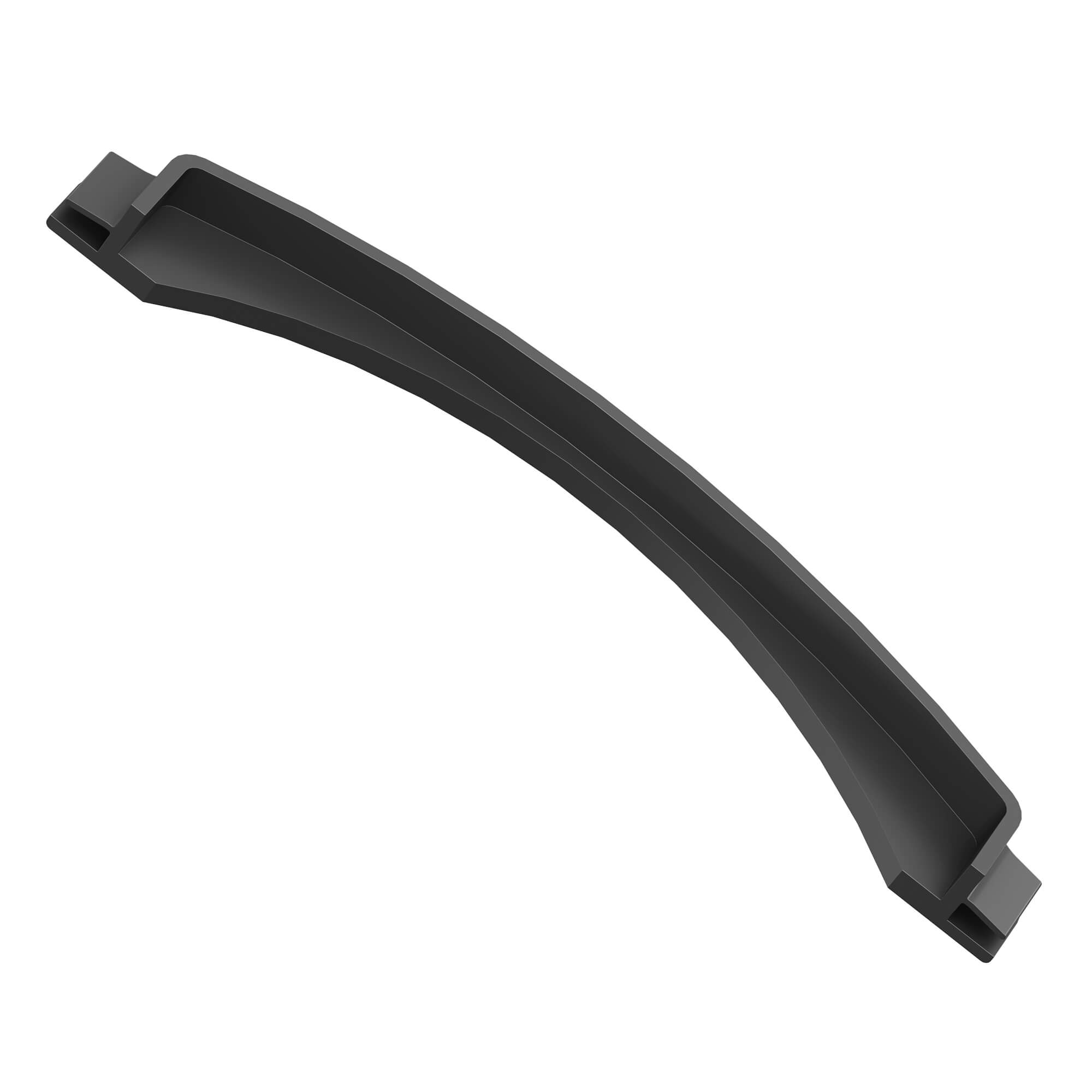

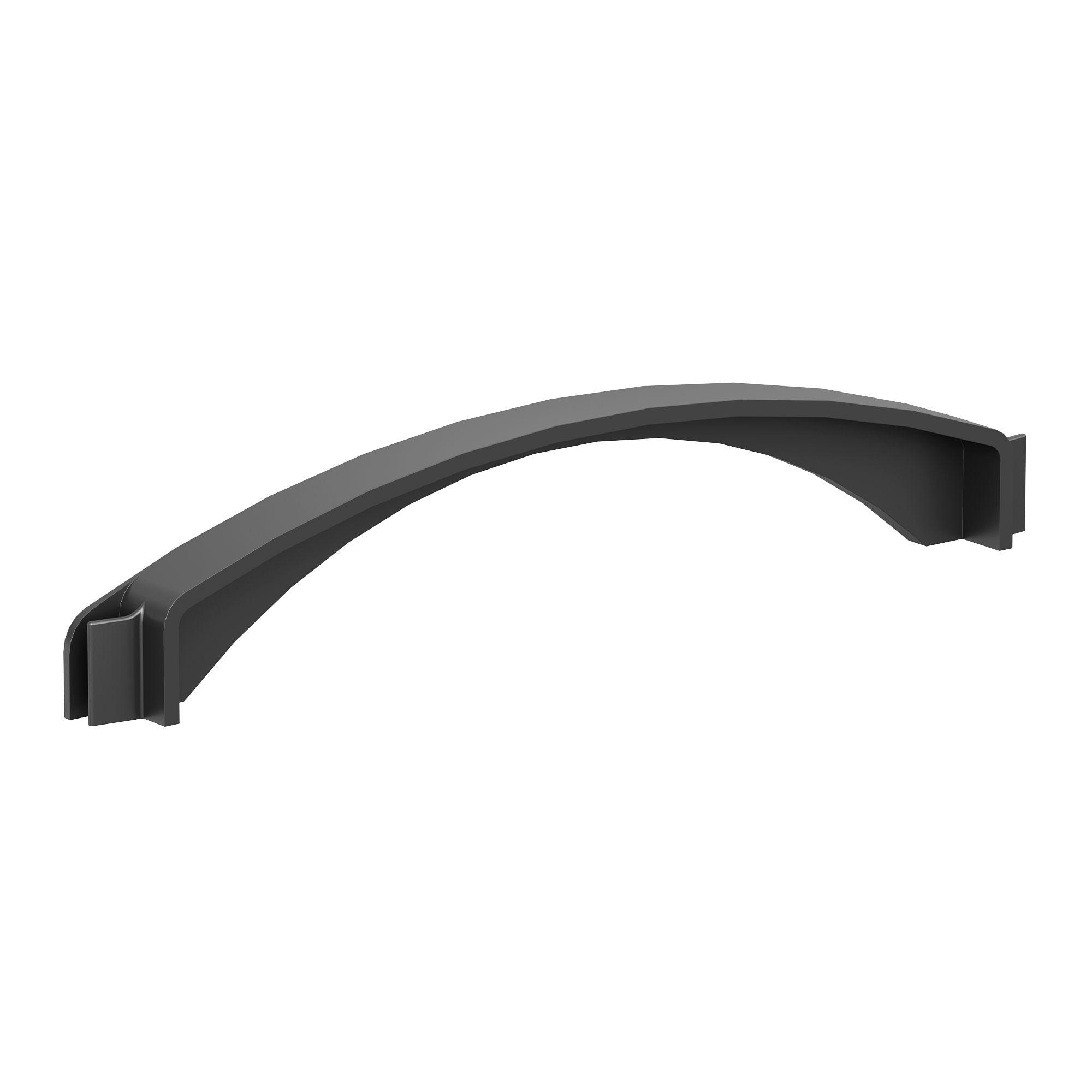

Adapter for cable duct floor 50x12 mm, black
Code: 05917
Adapter for cable duct floor 50x12 mm, black
Code: 05917
Colour | Black |
Width, mm | 6 |
Height, mm | 16 |
Self-adhesive | No |
Length, mm | 78 |
Material | Plastic |
Number of partitions | 1 |
Sealing lip | No |
Color | black |
Material | PVC |
Height, mm | 16 |
Width, mm | 78 |
Thickness, mm | 6 |
Temperature of mounting, °C | 5°С ... +60°С |
Width (nominal), mm | 75 |
Ingress Protection rating, IP | IP40 |
Temperature of operation, °C | 5°С ... +60°С |
Temperature of operation, °C | +60°C |
Climate version | UHL4 |
Height (nominal), mm | 17 |
Q'ty of holes | 1 |
Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
Self-glueing base | false |
Product type | Floor cable ducts |
Type of groupe | Floor cable accessories |
