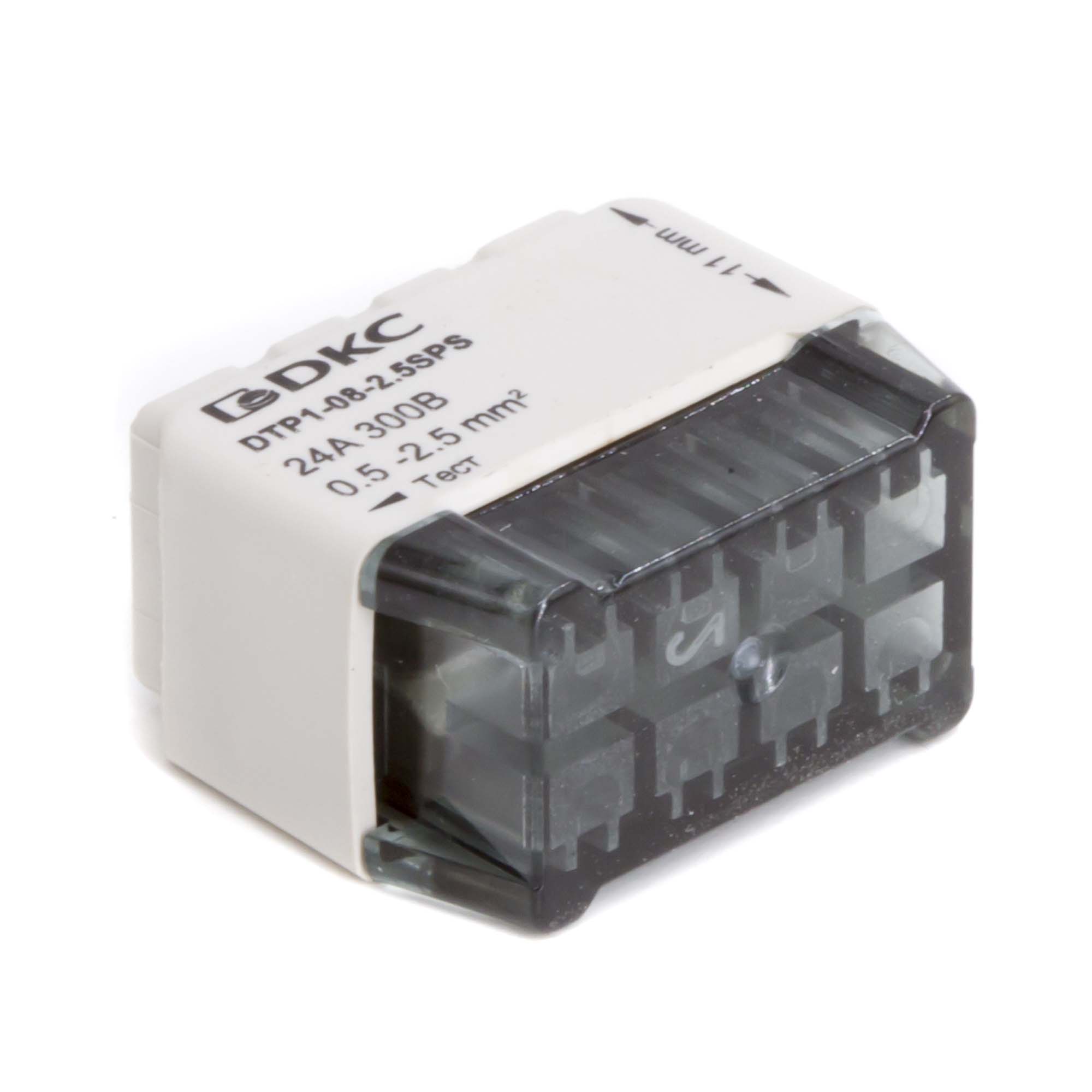

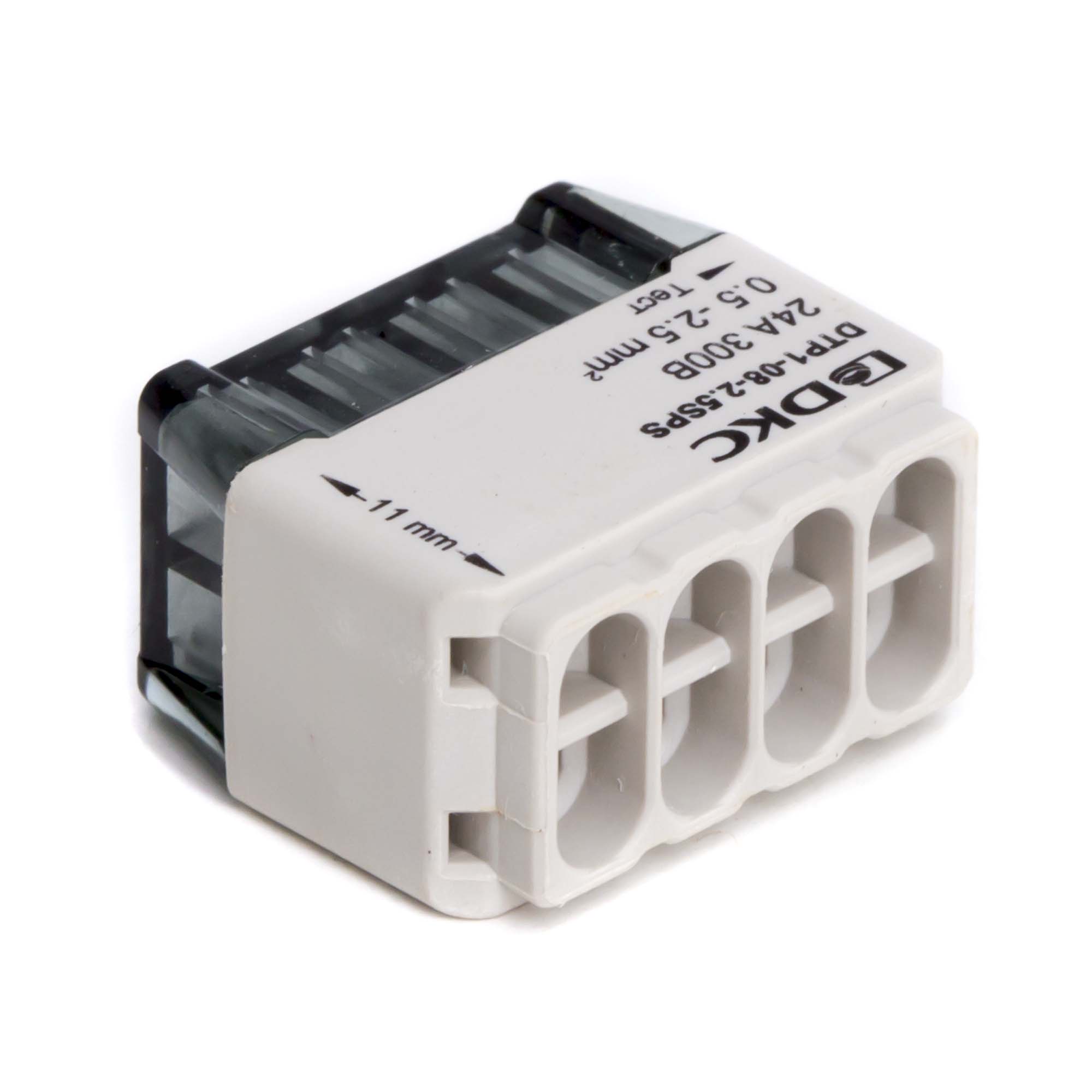

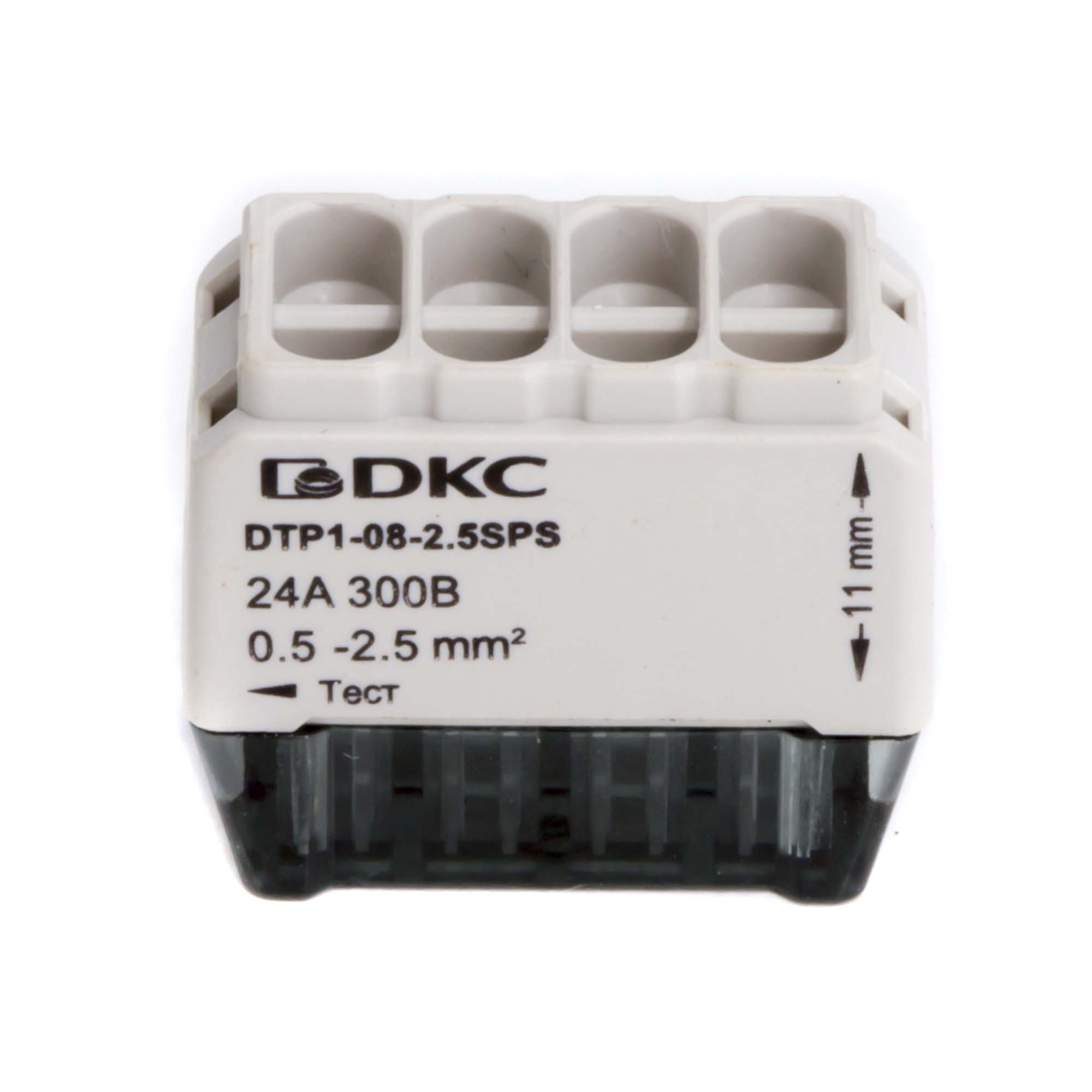

Screwless distributed terminal pad for solid cable 2.5 sq.mm 8 contact, white
Code: DTP1-08-2.5SPS
Screwless distributed terminal pad for solid cable 2.5 sq.mm 8 contact, white
Code: DTP1-08-2.5SPS
Mounting method | Direct mounting |
Colour | Grey |
Rated voltage, V | 300 |
Number of poles | 1 |
Length, mm | 24 |
Operating temperature, °C | -40...80 |
Number of clamp positions per pole | 8 |
Inflammability class of insulation material according to with UL94 | V0 |
Width/grid dimension, mm | 16.45 |
Height at lowest possible mounting height, mm | 11.0 |
Closing plate required | No |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Transparent | Yes |
Connectable conductor cross section solid-core, mm² | 0.5...2.5 |
Material insulation body | Other |
Connection position | Sideways |
Rated current In, A | 24 |
Explosion-tested version 'Ex e' | No |

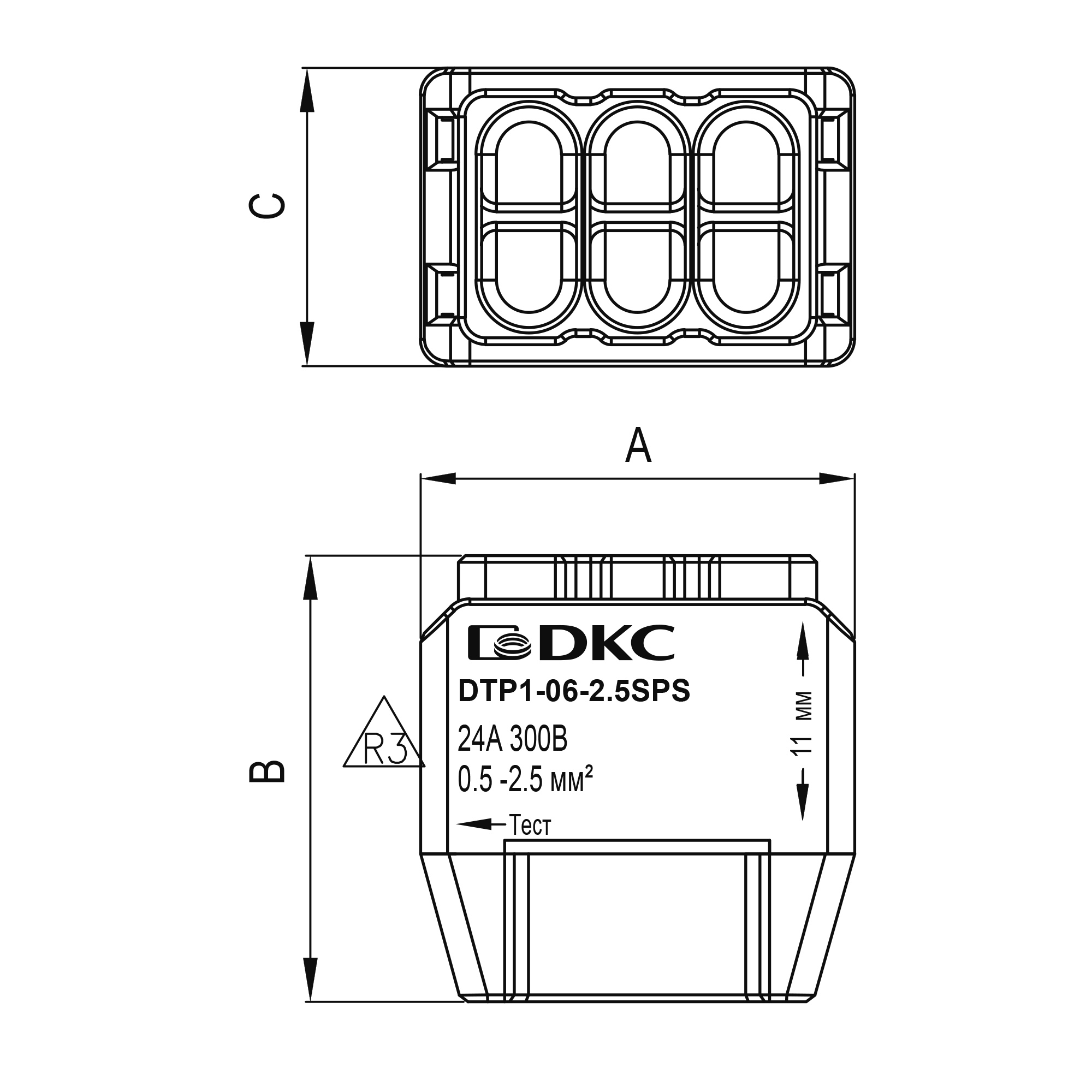

Drawings
Seria | Name | Eplan |
---|---|---|
