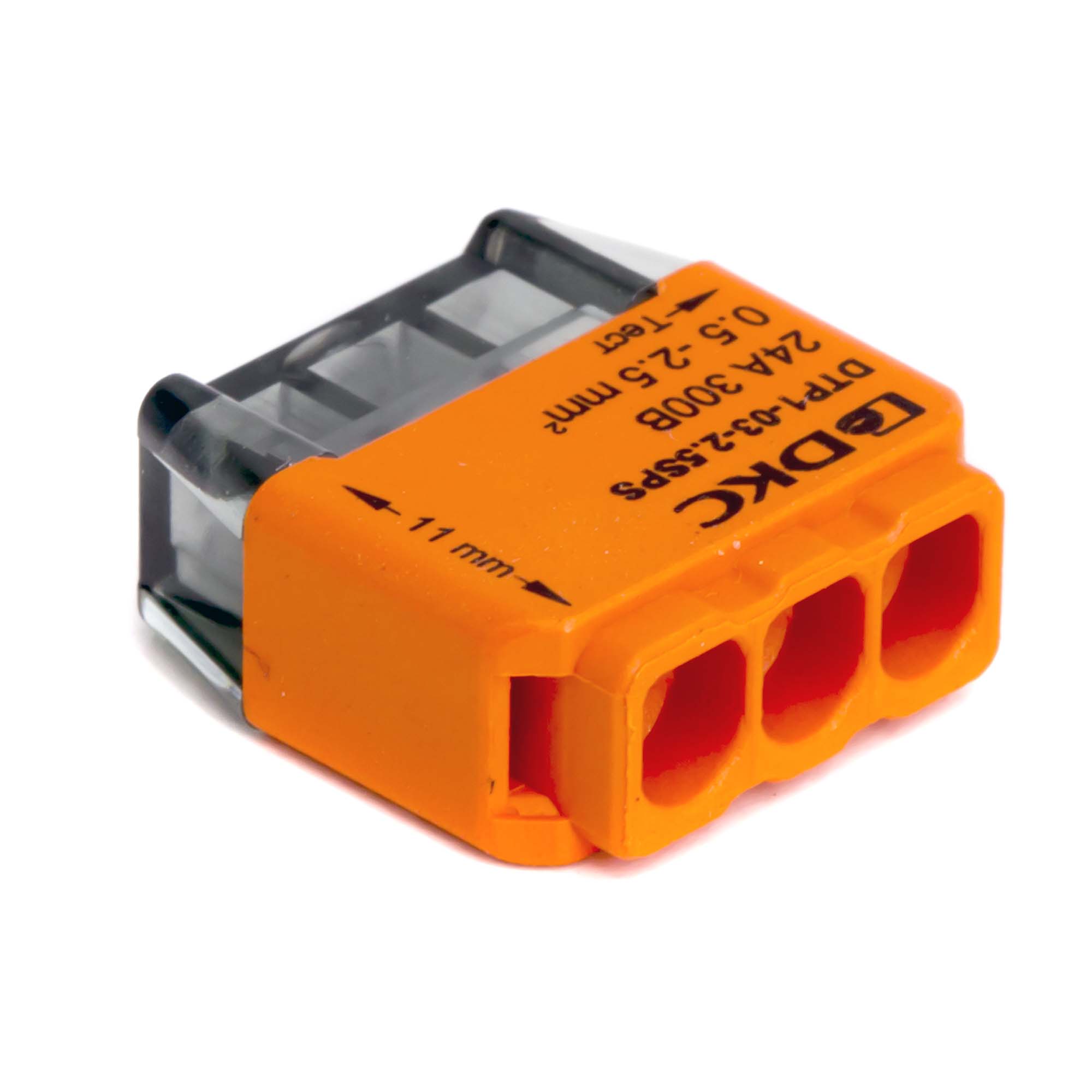

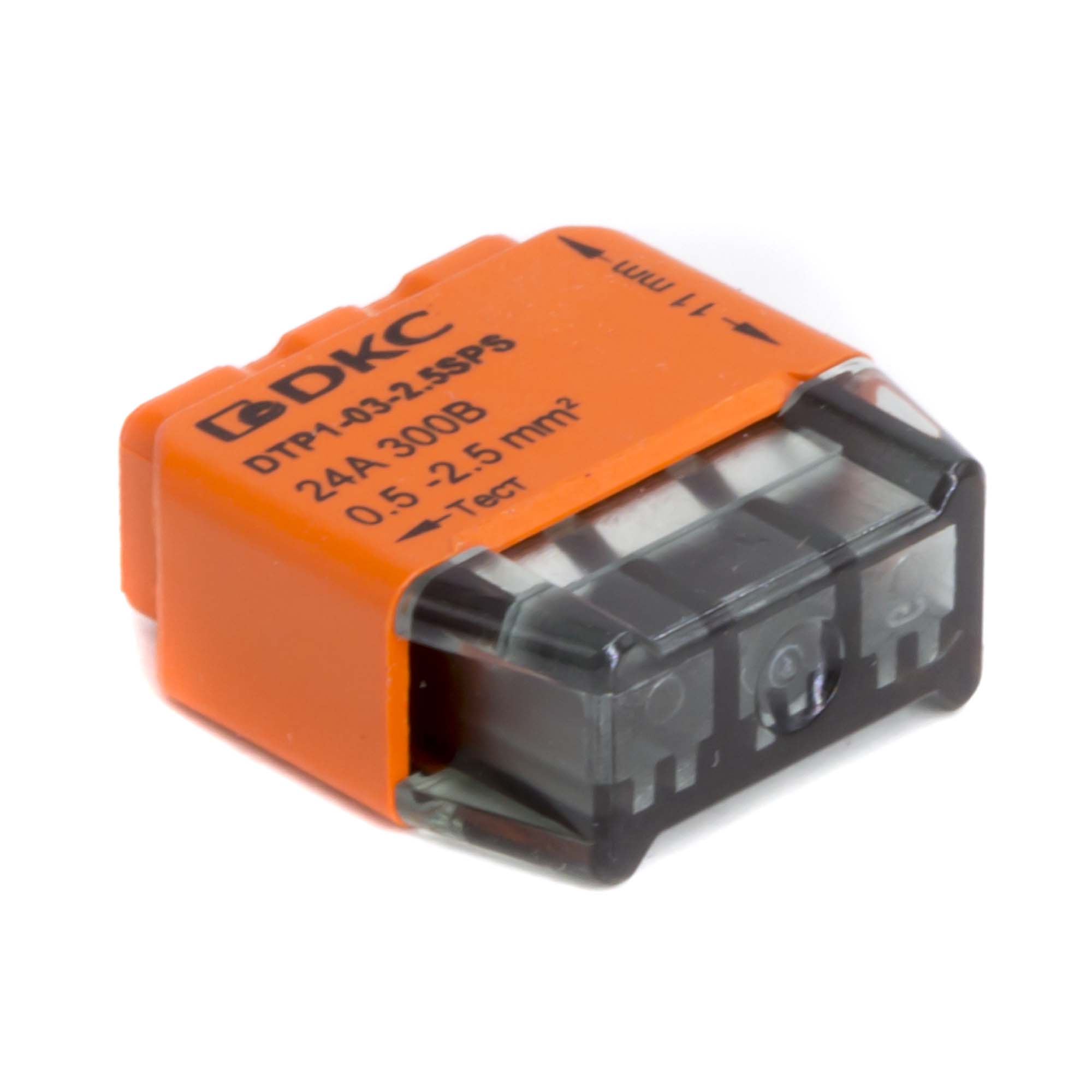

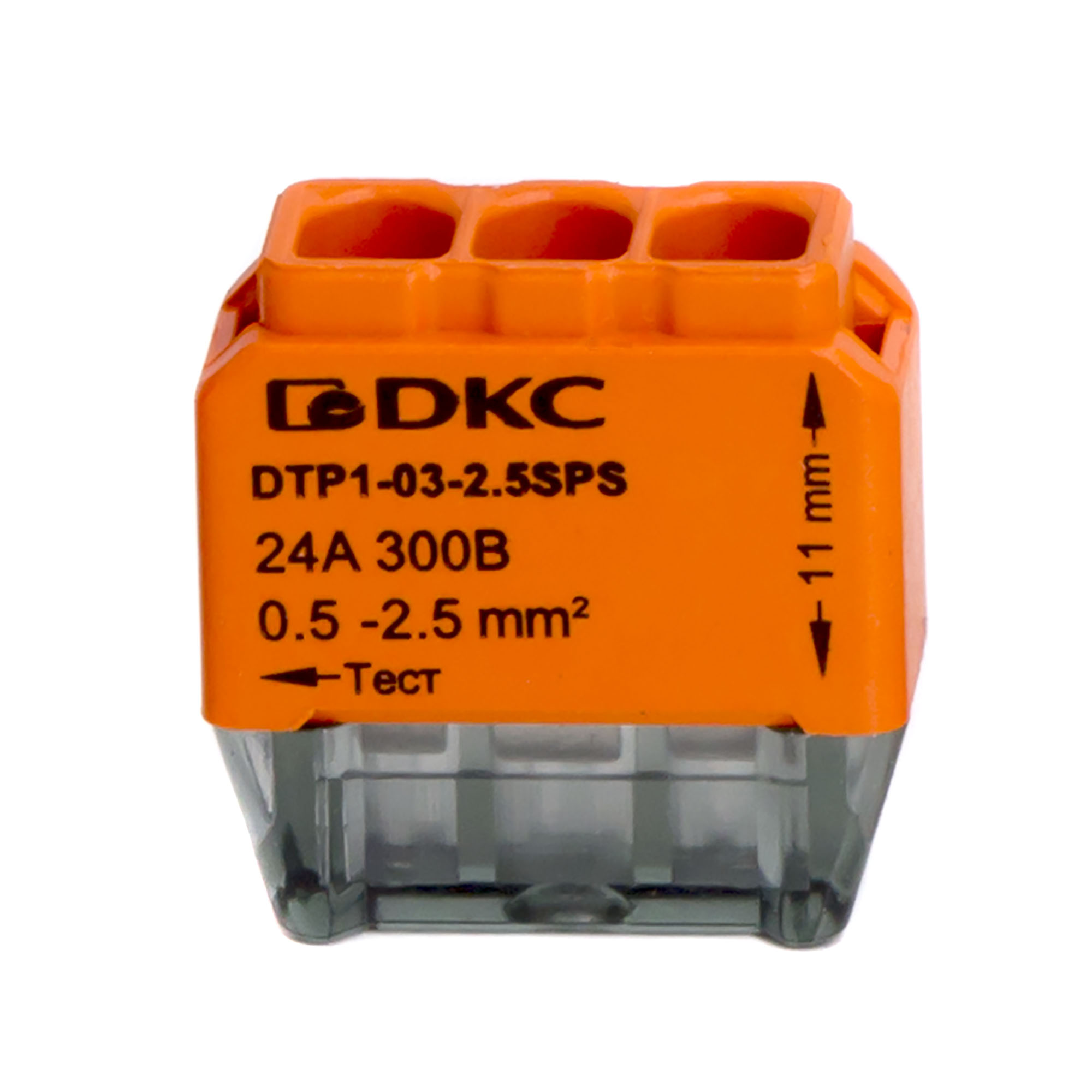

Screwless distributed terminal pad for solid cable 2.5 sq.mm 3 contact, orange
Code: DTP1-03-2.5SPS
Screwless distributed terminal pad for solid cable 2.5 sq.mm 3 contact, orange
Code: DTP1-03-2.5SPS
| Mounting method | Direct mounting |
| Colour | Orange |
| Rated voltage, V | 300 |
| Number of poles | 1 |
| Length, mm | 16 |
| Operating temperature, °C | -40...80 |
| Number of clamp positions per pole | 3 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Width/grid dimension, mm | 16.45 |
| Height at lowest possible mounting height, mm | 6.95 |
| Closing plate required | No |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Transparent | Yes |
| Connectable conductor cross section solid-core, mm² | 0.5...2.5 |
| Material insulation body | Other |
| Connection position | Sideways |
| Rated current In, A | 24 |
| Explosion-tested version 'Ex e' | No |

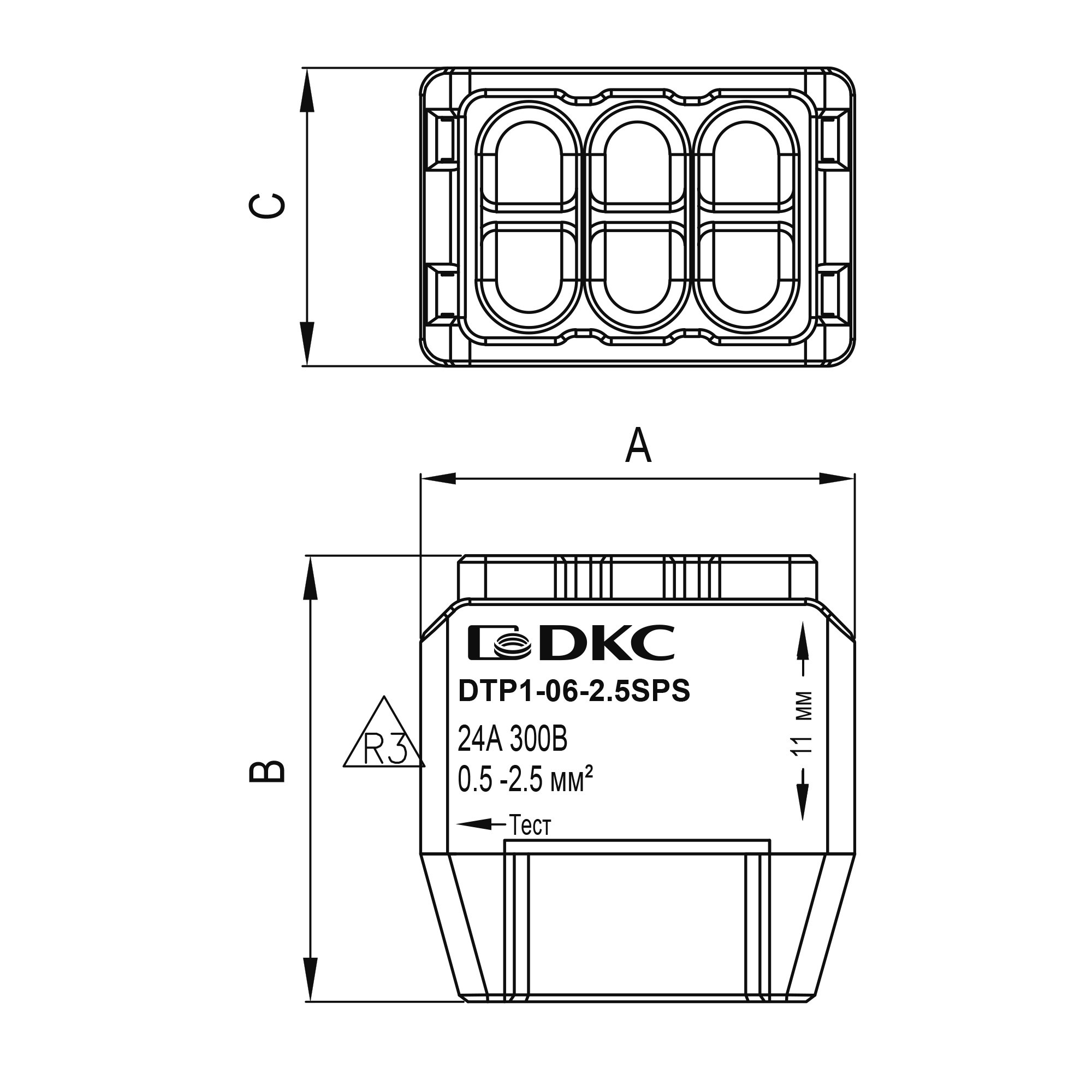

Drawings
| Seria | Name | Eplan |
|---|---|---|
|
