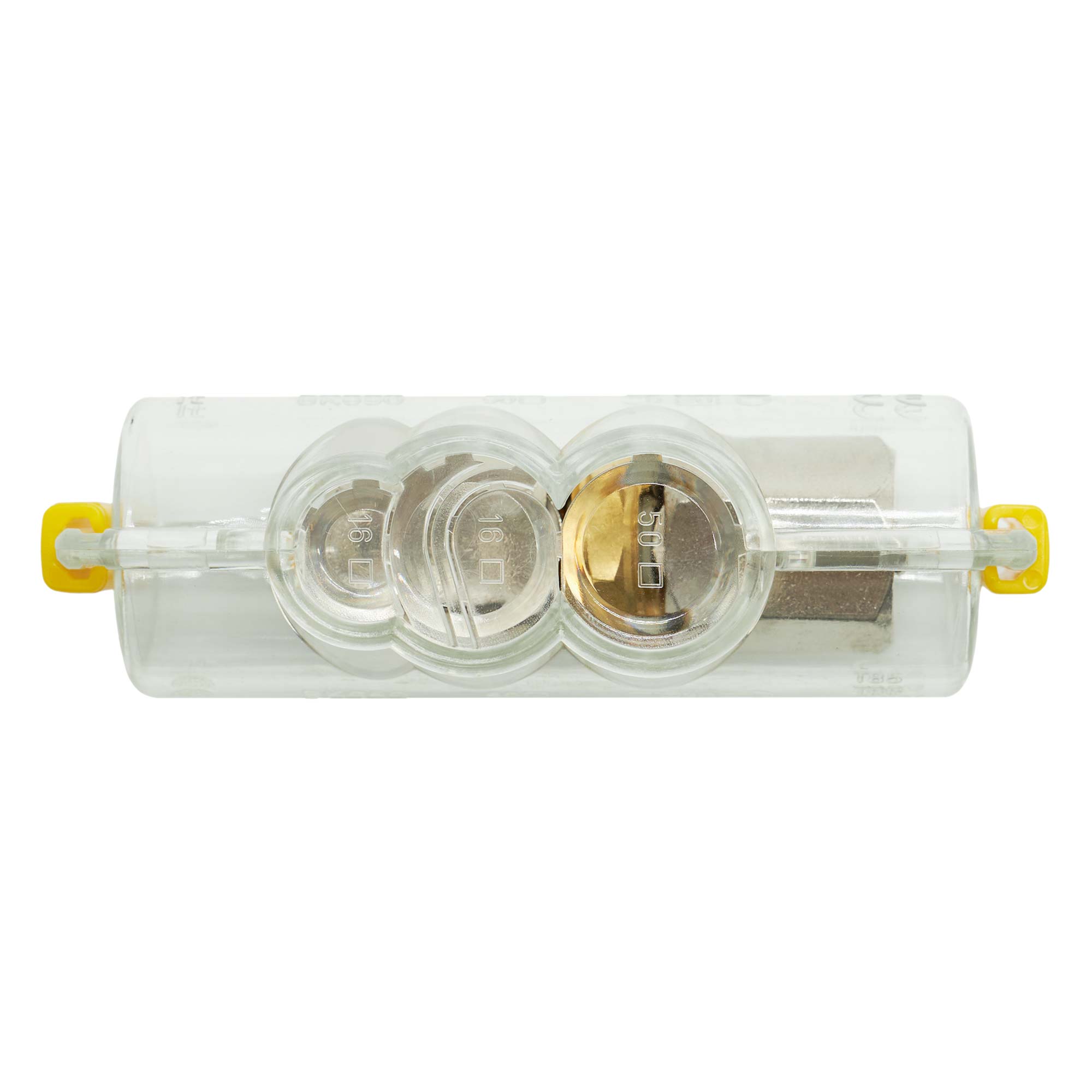

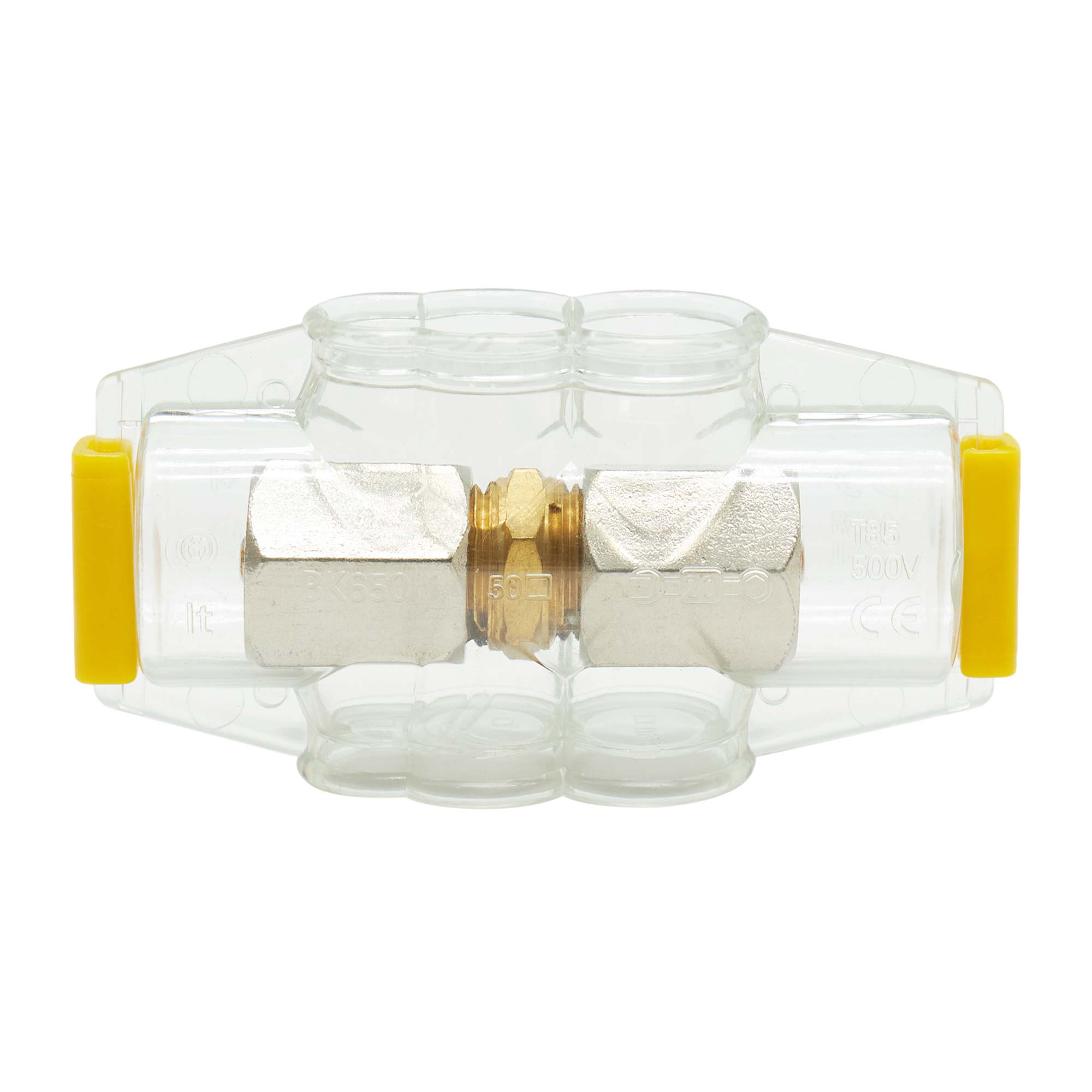

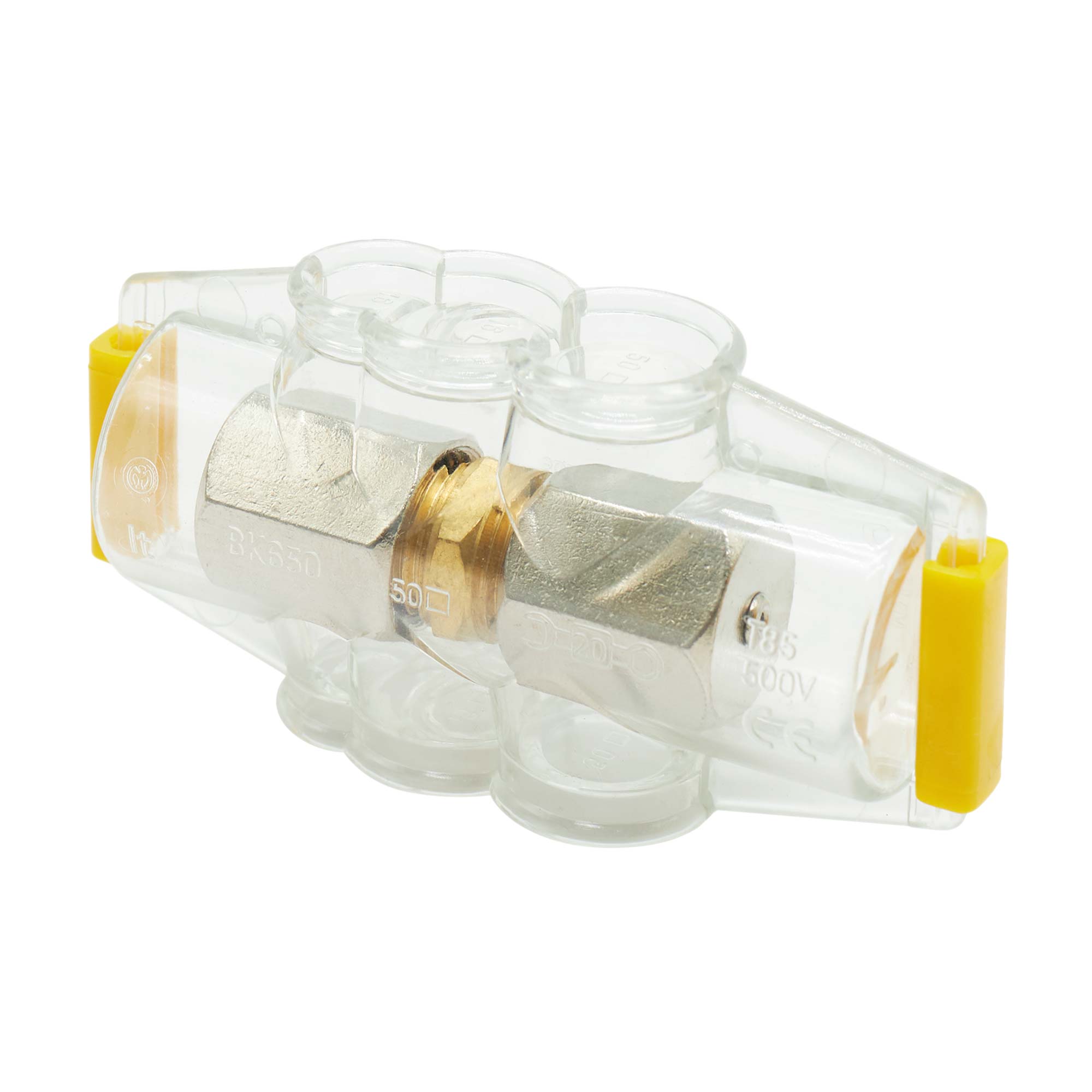

Universal Terminal Block 50/50/16mm²
Code: BK650
Universal Terminal Block 50/50/16mm²
Code: BK650
Mounting method | Other |
Colour | Other |
Rated voltage, V | 750 |
Number of poles | 1 |
Length, mm | 95.0 |
Operating temperature, °C | -5...85 |
Number of clamp positions per pole | 2 |
Width/grid dimension, mm | 29.0 |
Closing plate required | No |
Transparent | Yes |
Connectable conductor cross section multi-wired, mm² | 16...50 |
Explosion-tested version 'Ex e' | No |
Inflammability class of insulation material according to with UL94 | V2 |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Material insulation body | Other |
Connection position | Sideways |
Height at lowest possible mounting height, mm | 50.0 |
Rated current In, A | 151 |
Product type | Branch terminal blocks |
