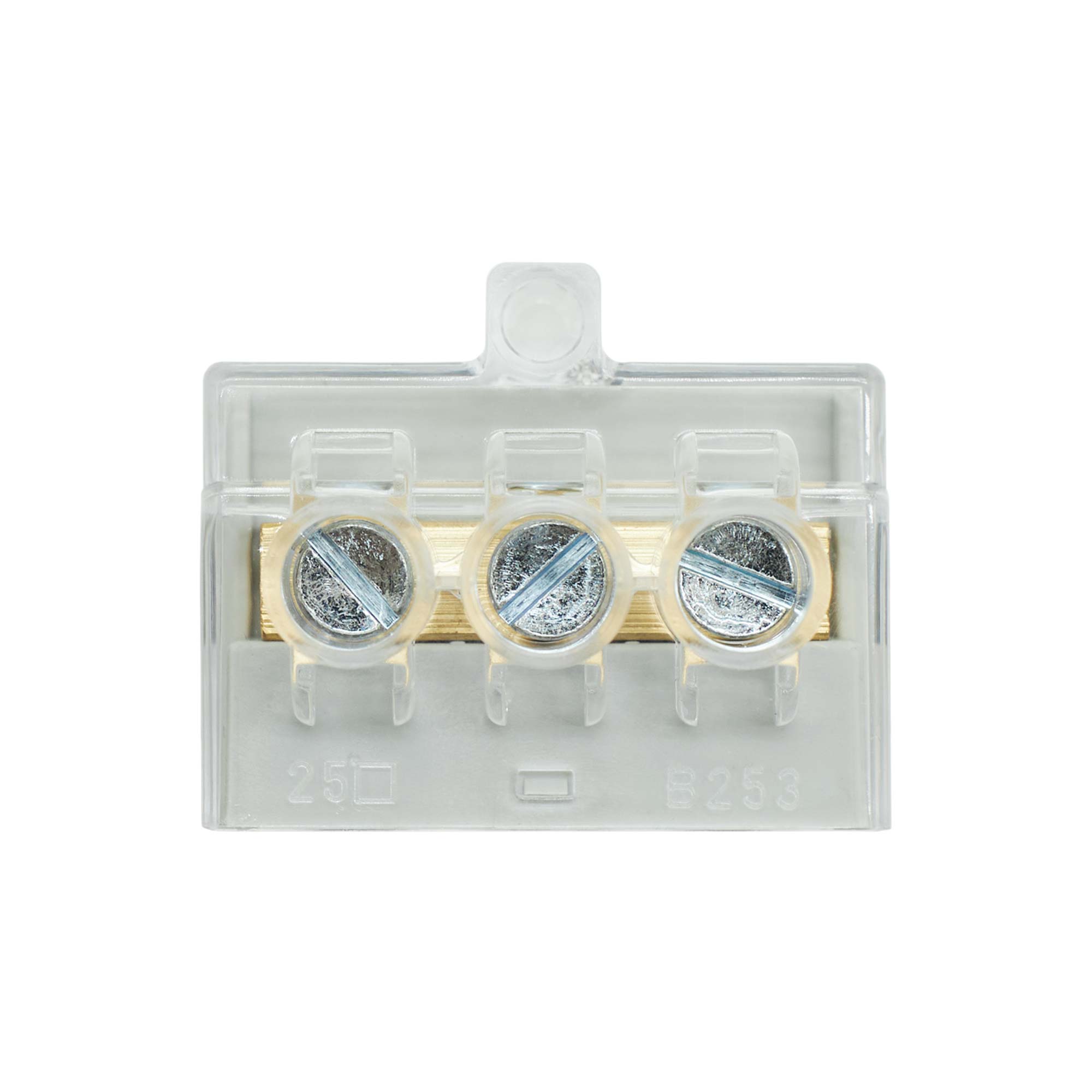

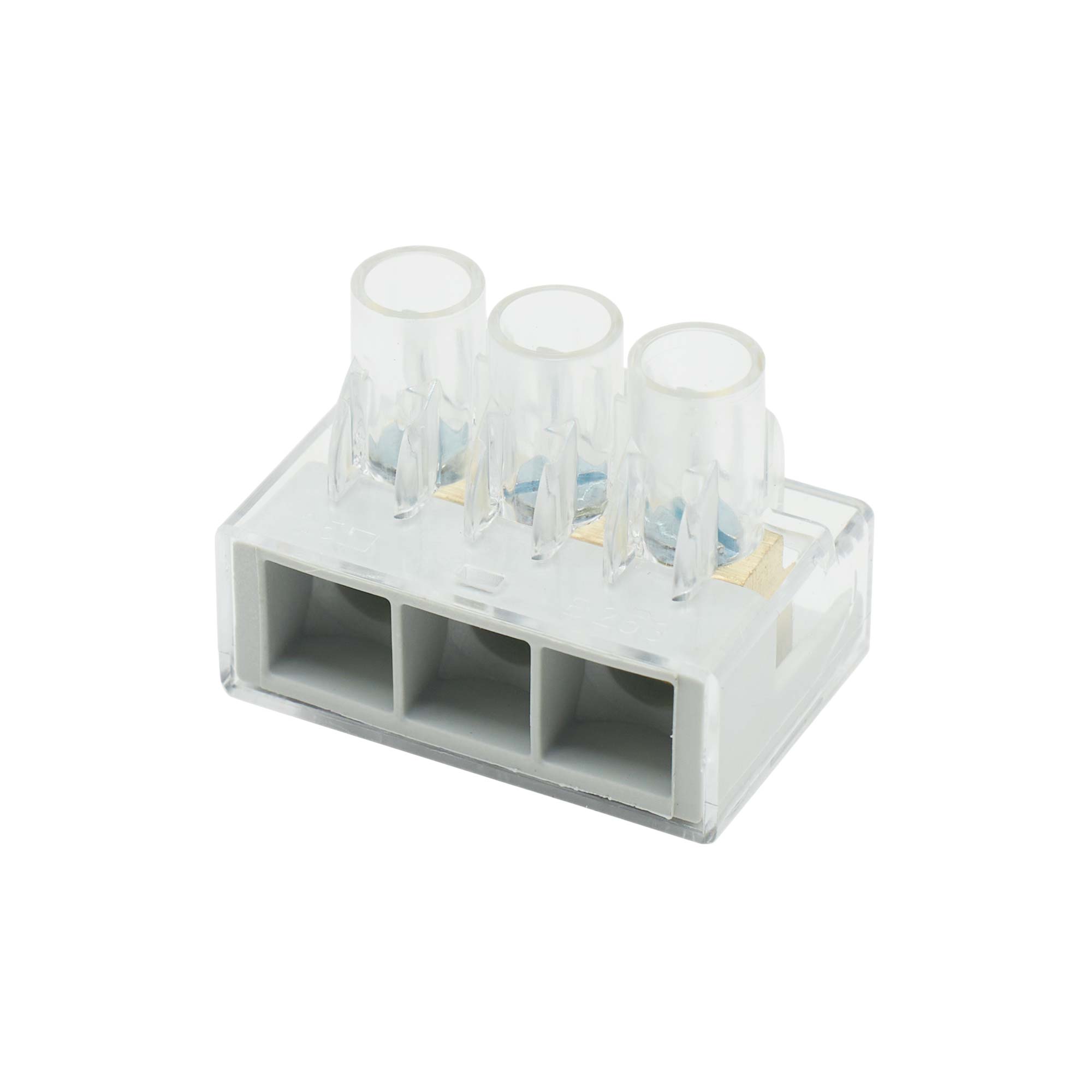

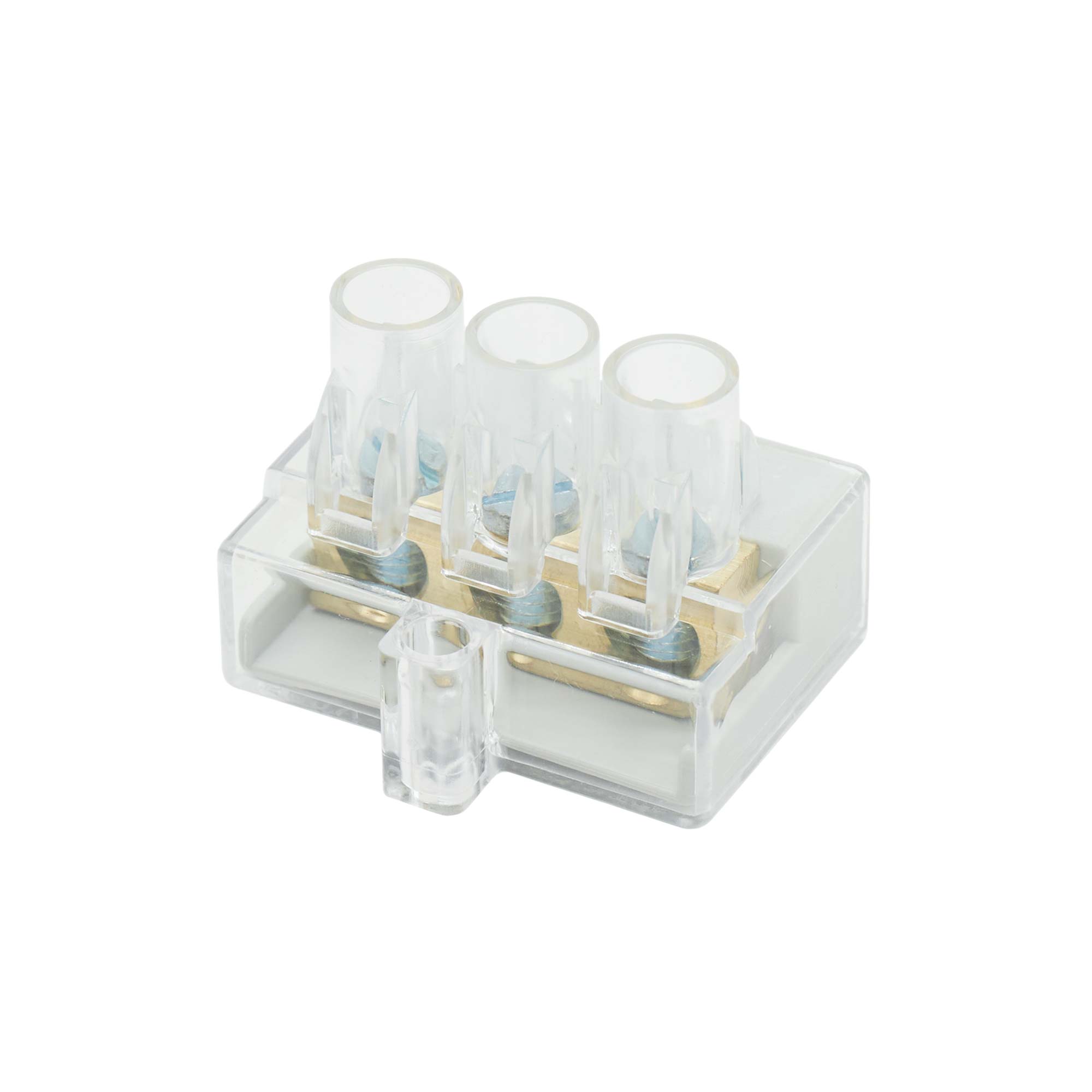

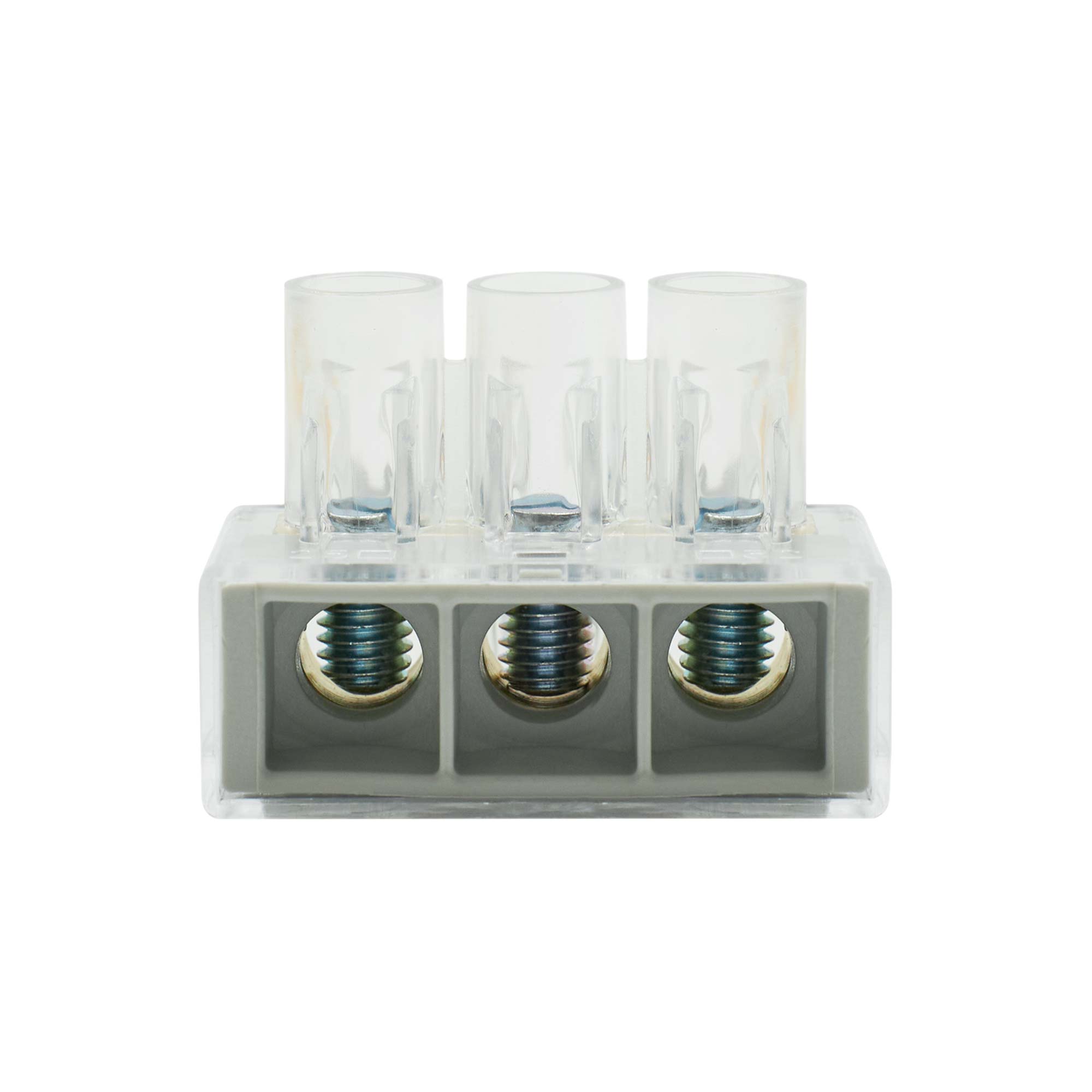

Unipolar terminal blocks 3х7,5mm
Code: B253
Unipolar terminal blocks 3х7,5mm
Code: B253
| Mounting method | Other |
| Colour | Grey |
| Rated voltage, V | 500 |
| Number of poles | 1 |
| Length, mm | 40.0 |
| Operating temperature, °C | -5...85 |
| Number of clamp positions per pole | 3 |
| Width/grid dimension, mm | 33.0 |
| Closing plate required | No |
| Transparent | Yes |
| Connectable conductor cross section multi-wired, mm² | 1...25 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Other |
| Connection position | Sideways |
| Height at lowest possible mounting height, mm | 30.0 |
| Rated current In, A | 100 |
| Product type | Connecting terminal blocks |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
