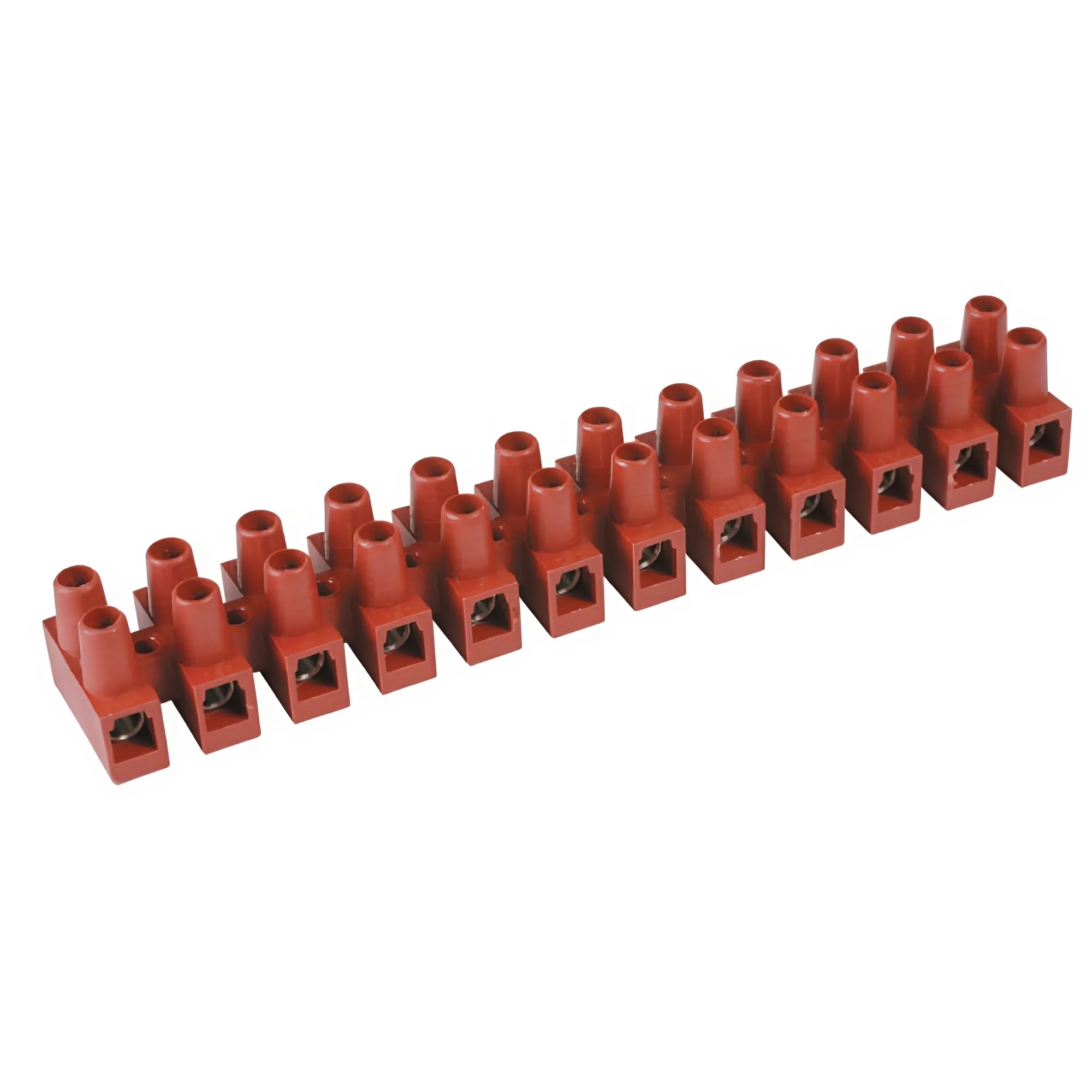

Terminal blocks fiberglass, 2р, 150 °С, 450V, 24A, 2,5mm² (р)
Code: 43102FVR
Terminal blocks fiberglass, 2р, 150 °С, 450V, 24A, 2,5mm² (р)
Code: 43102FVR
Mounting method | Direct mounting |
Colour | Red |
Rated voltage, V | 450 |
Number of poles | 2 |
Length, mm | 15.8 |
Operating temperature, °C | -20...150 |
Number of clamp positions per pole | 2 |
Width/grid dimension, mm | 16.5 |
Closing plate required | No |
Transparent | No |
Connectable conductor cross section multi-wired, mm² | 0.75...2.5 |
Rated current In, A | 24 |
Explosion-tested version 'Ex e' | No |
Inflammability class of insulation material according to with UL94 | V0 |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Material insulation body | Other |
Connection position | Sideways |
Product type | Screw terminal blocks |
Drawings
Seria | Name | Eplan |
---|---|---|
Terminal blocks - "Quadro"
|
