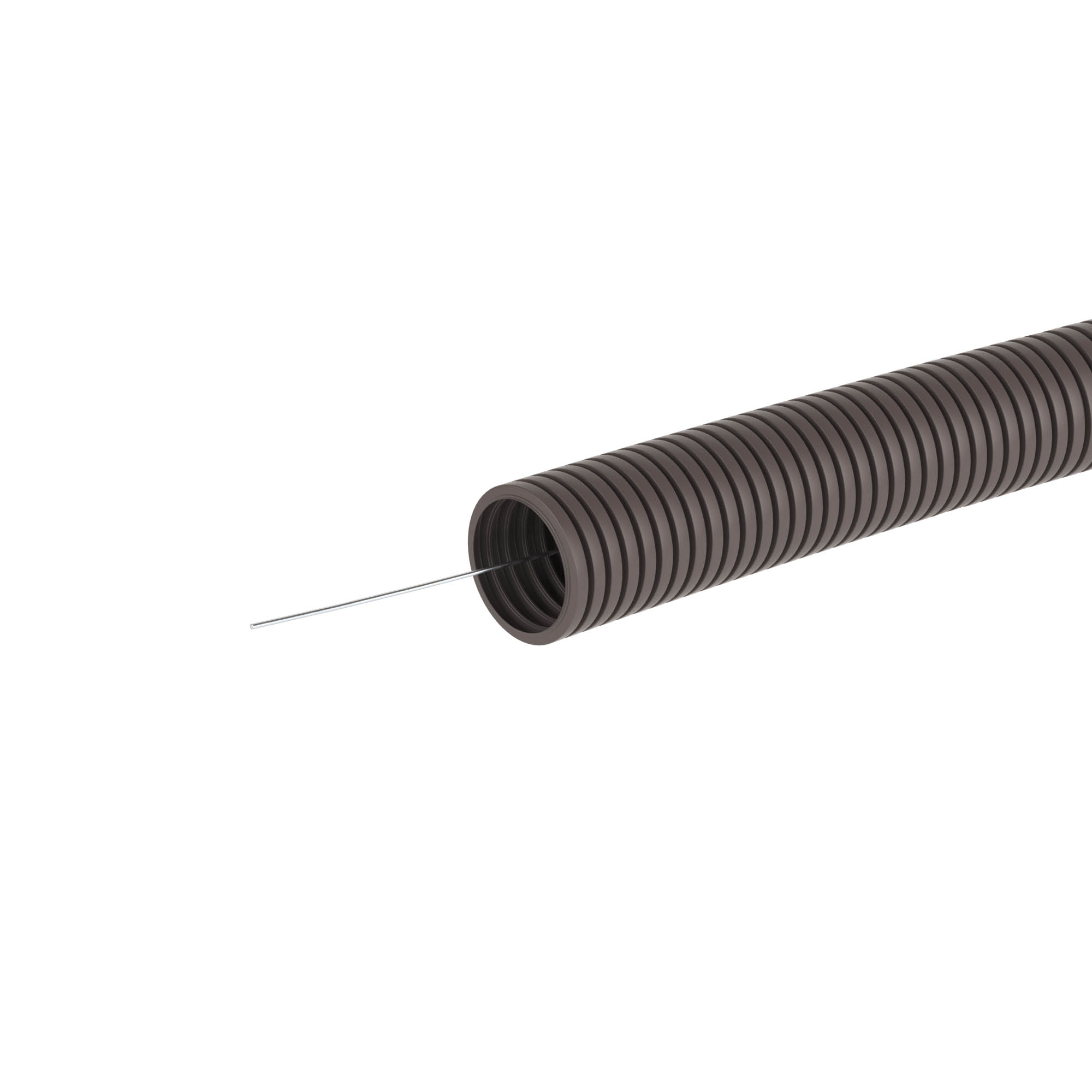

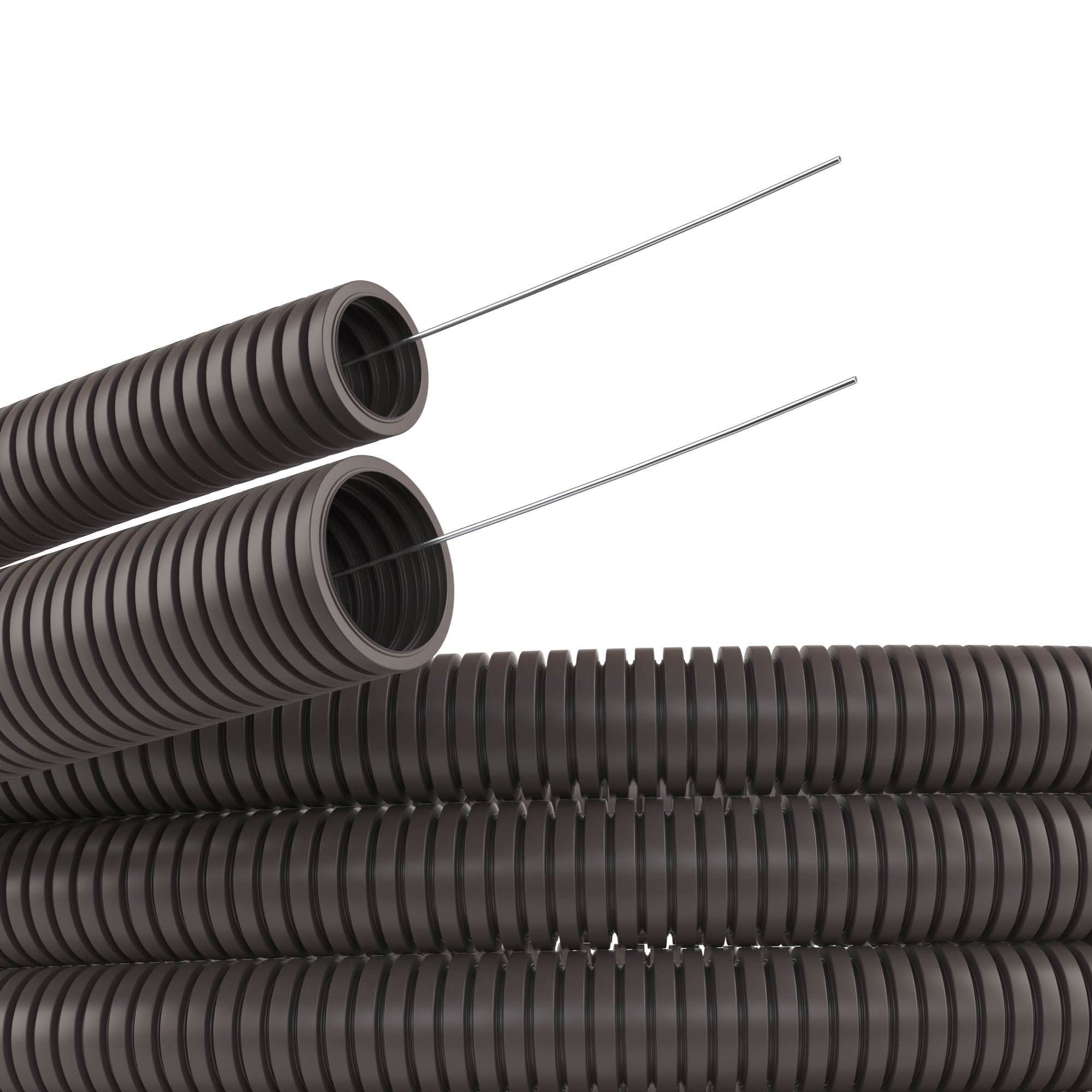

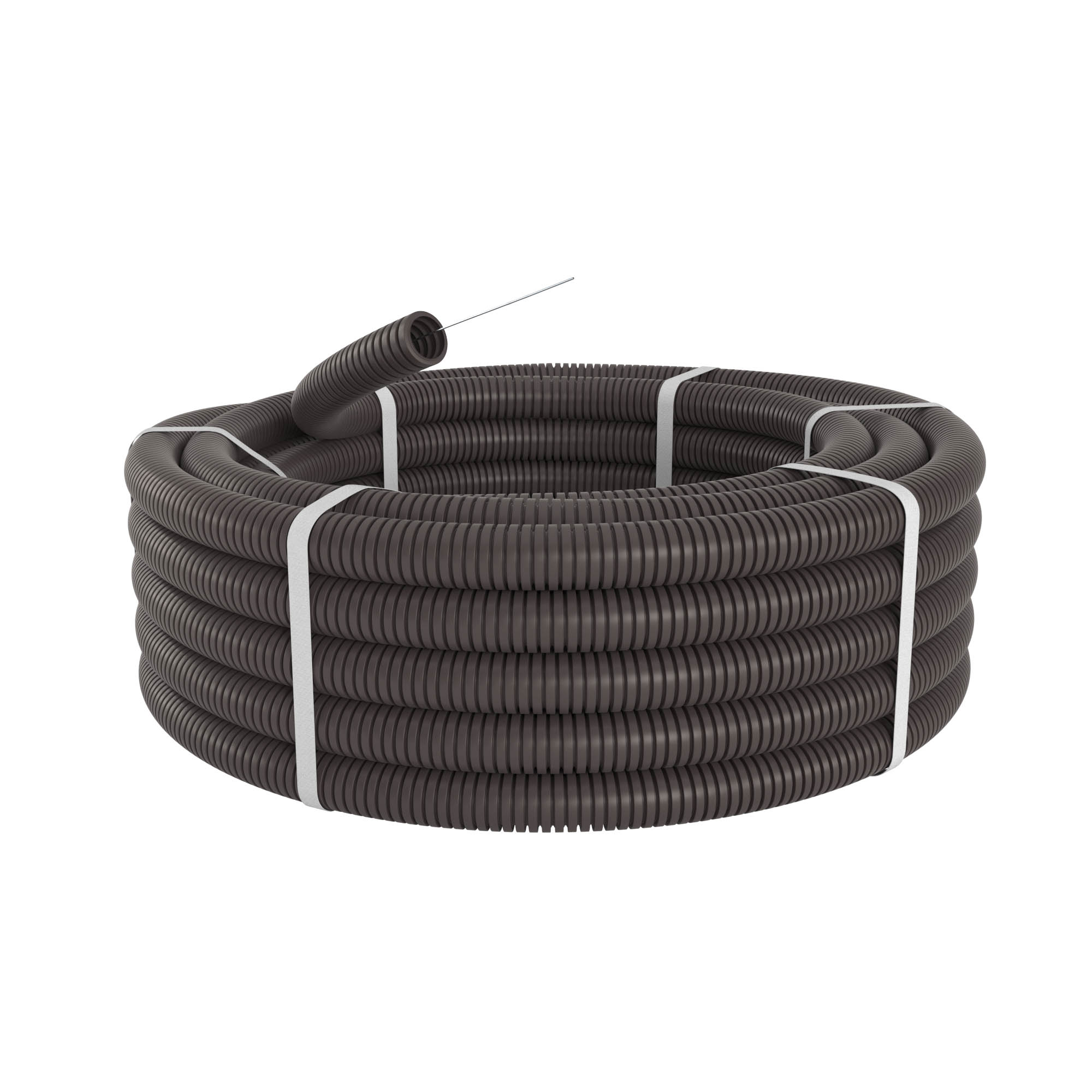

Tube PA6V0 flexible corrugatted with pull, DN17mm, V0, Din16,8 mm, Dex 21,2 mm , dark gray color
Code: PA611721F0
Tube PA6V0 flexible corrugatted with pull, DN17mm, V0, Din16,8 mm, Dex 21,2 mm , dark gray color
Code: PA611721F0
Colour | Grey |
Outer diameter, mm | 21.2 |
Oil resistant | Yes |
UV resistant | Yes |
Inner diameter, mm | 16.8 |
Compressive strength, N | 200 |
Operational temperature, °C | -40...105 |
Fire resistance according to UL94 | V0 |
Bending radius, static, mm | 35 |
Flame accelerating | No |
Material | Polyamide 6 |
Tensile strength, N | 300 |
Nominal diameter, mm | 17 |
Nominal size in inch | 5/8 inch |
Bending strength | Flexible |
Sheathing material | Not sheathed |
With draw wire | Yes |
Color | Dark gray |
Material | PVC |
Length, mm | 50000 |
Ingress Protection rating, IP | IP68 |
Temperature of operation, °C | from -40°С to +105°С |
Shock resistance, J | >1 |
Cord for wires | Yes |
Fire protection | V-0 ( по UL-94) |
Diameter (nominal), mm | 17 |
ТУ 2248-012-47022248-2009 | Technical specifications 2247-024-47022248-2009 |
3 года | 3 years |
15 лет | 15 years |
