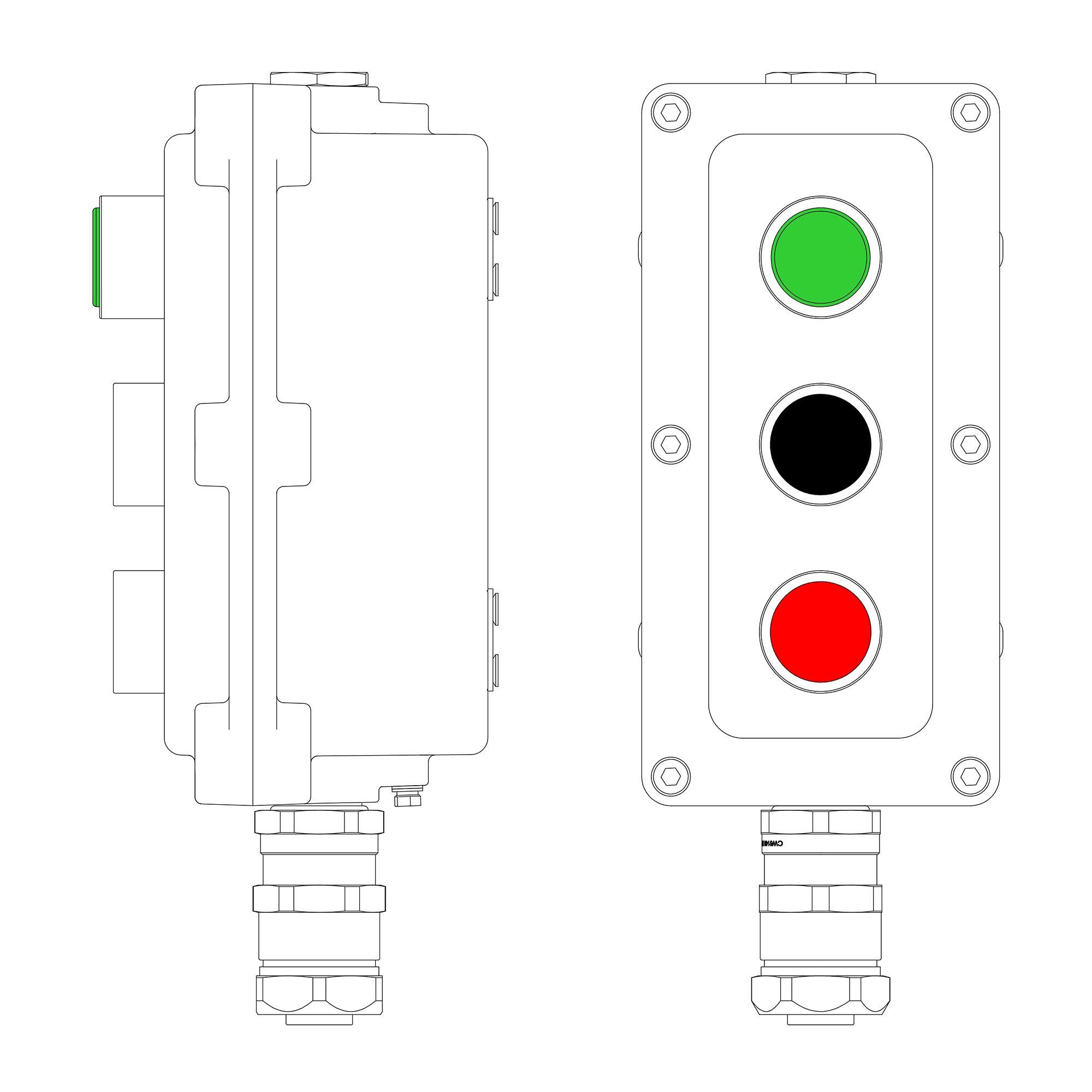

No name
Code: LCSD21000121
No name
Code: LCSD21000121
Mounting method | Surface mounted (plaster) |
Material | Aluminium |
Explosion-tested version | Yes |
Impact strength | IK07 |
Cover attachment | Screwed |
Degree of protection (IP) | IP66 |
For Ex-zone gas | 1, 2 |
For Ex-Zone dust | 21, 22 |
Number of controls | 3 pcs. |
Element controls 1 | Light filter |
Type 1 element | 1 pc. x L1 green 20V-250V AC/DC |
Element controls 2 | Push-button |
Type 2 element | 1 pc. x P1 black 1NC+1NO |
Element controls 3 | Push-button |
Type 3 element | 1 pc. x P1 red 1NC+1NO |
Type of a cable gland for | Unarmored cable in a flexible conduit "Cosmec" |
Nominal diameter of the flexible conduit, mm | DN15 mm |
Installation side: C | 1 pc. x outer D: 5,5-13 mm |
Material | Aluminium alloy |
Ex | d, tb |
Electrical equipment group | IIB ethylene |
