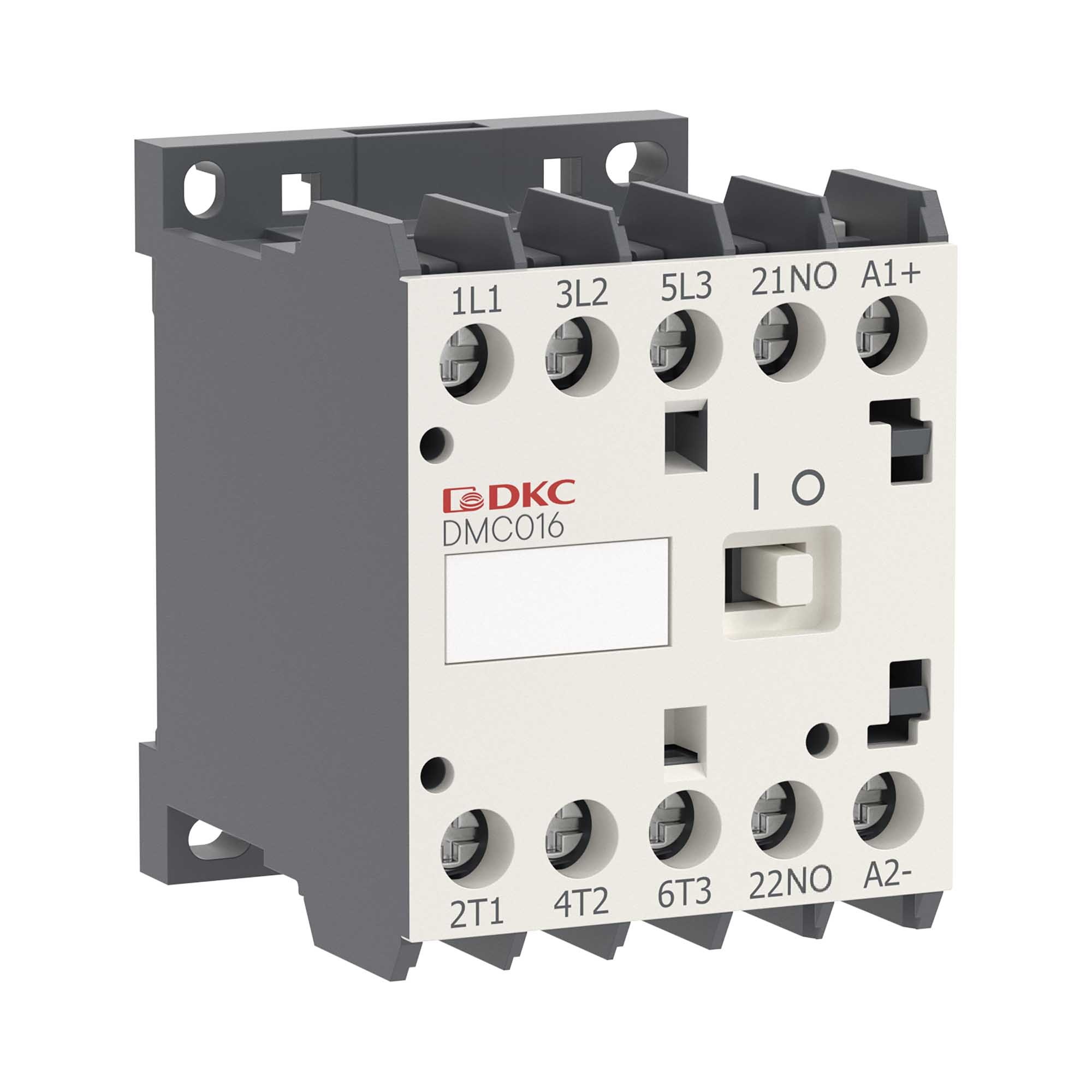

MC016P3010A380B MC Range Mini Contactors AC Coil16A AC 3Pole3 Power Pole & 4 th Pole (Aux) Either NO Or NC
Code: DMC016-3C10A380
MC016P3010A380B MC Range Mini Contactors AC Coil16A AC 3Pole3 Power Pole & 4 th Pole (Aux) Either NO Or NC
Code: DMC016-3C10A380
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 7.5 |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Rated operation current Ie at AC-3, 400 V, A | 16 |
| Rated operation current Ie at AC-1, 400 V, A | 22 |
| Rated control supply voltage Us at AC 50HZ, V | 380...380 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V, A | 13.3 |
| Rated operation power at AC-4, 400 V, kW | 5.5 |
| Type of contactors | DMC016 |
| Poles | 3 |
| Contacts | 1NO |
| Type of voltage | AC |
| Supply voltage | 380 V |
