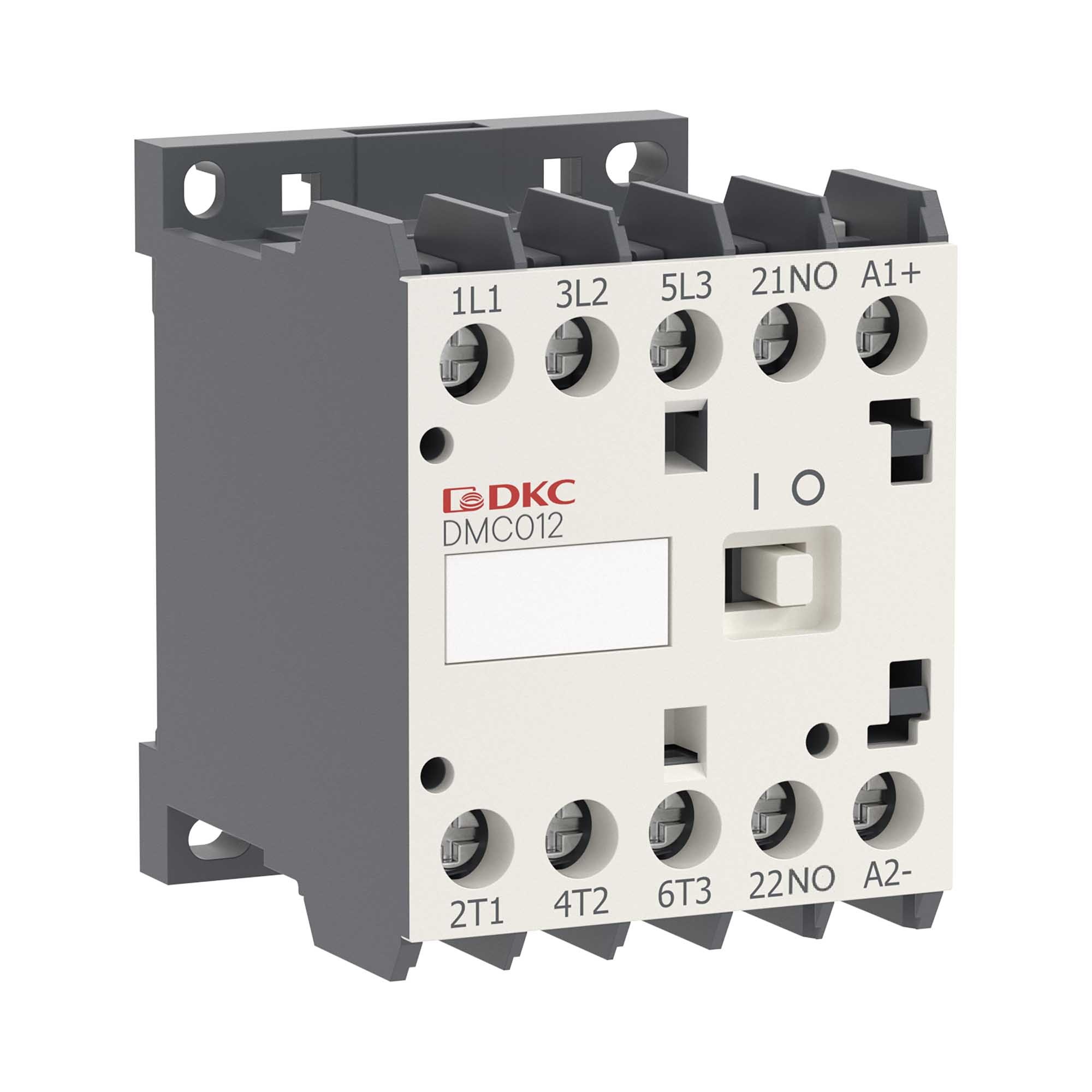

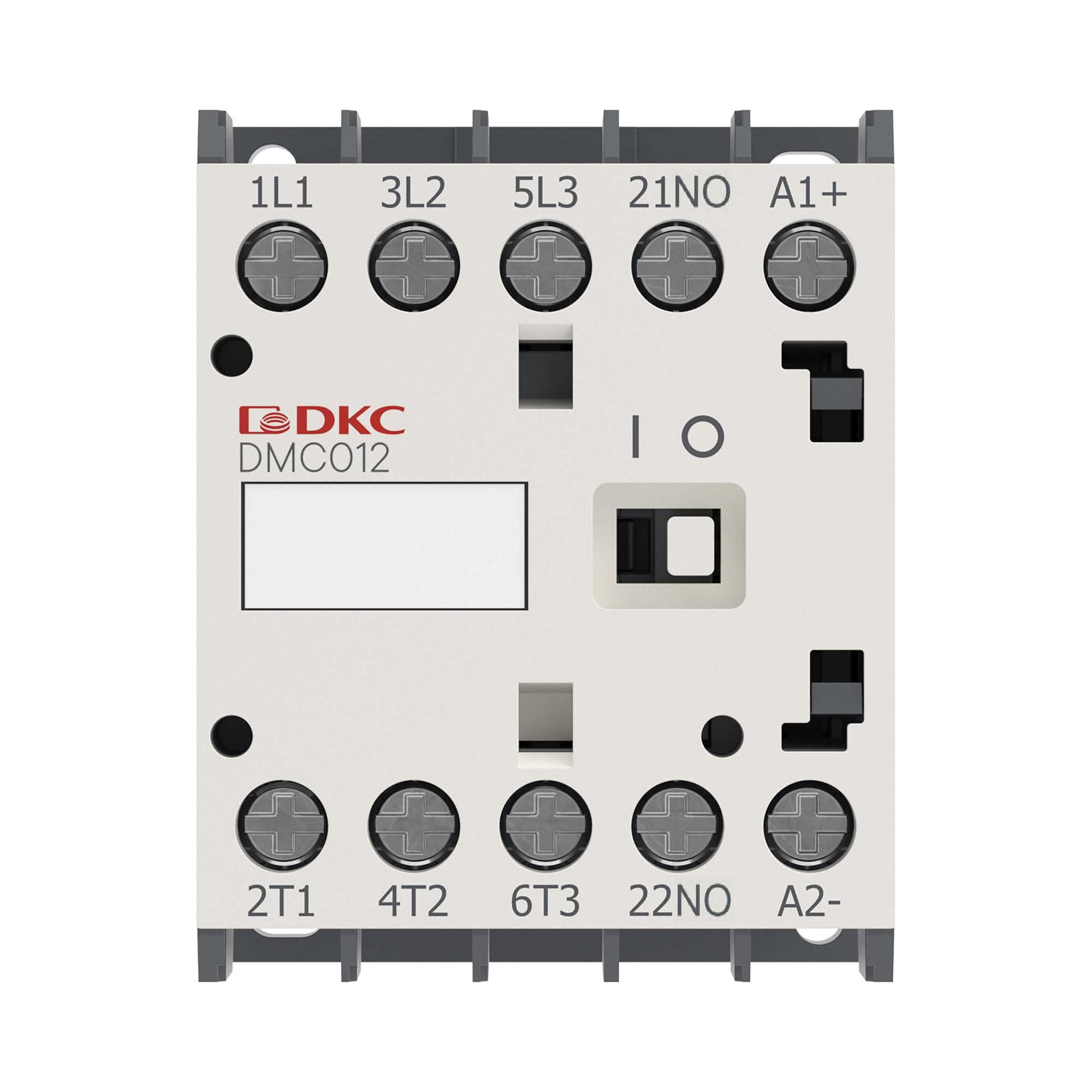

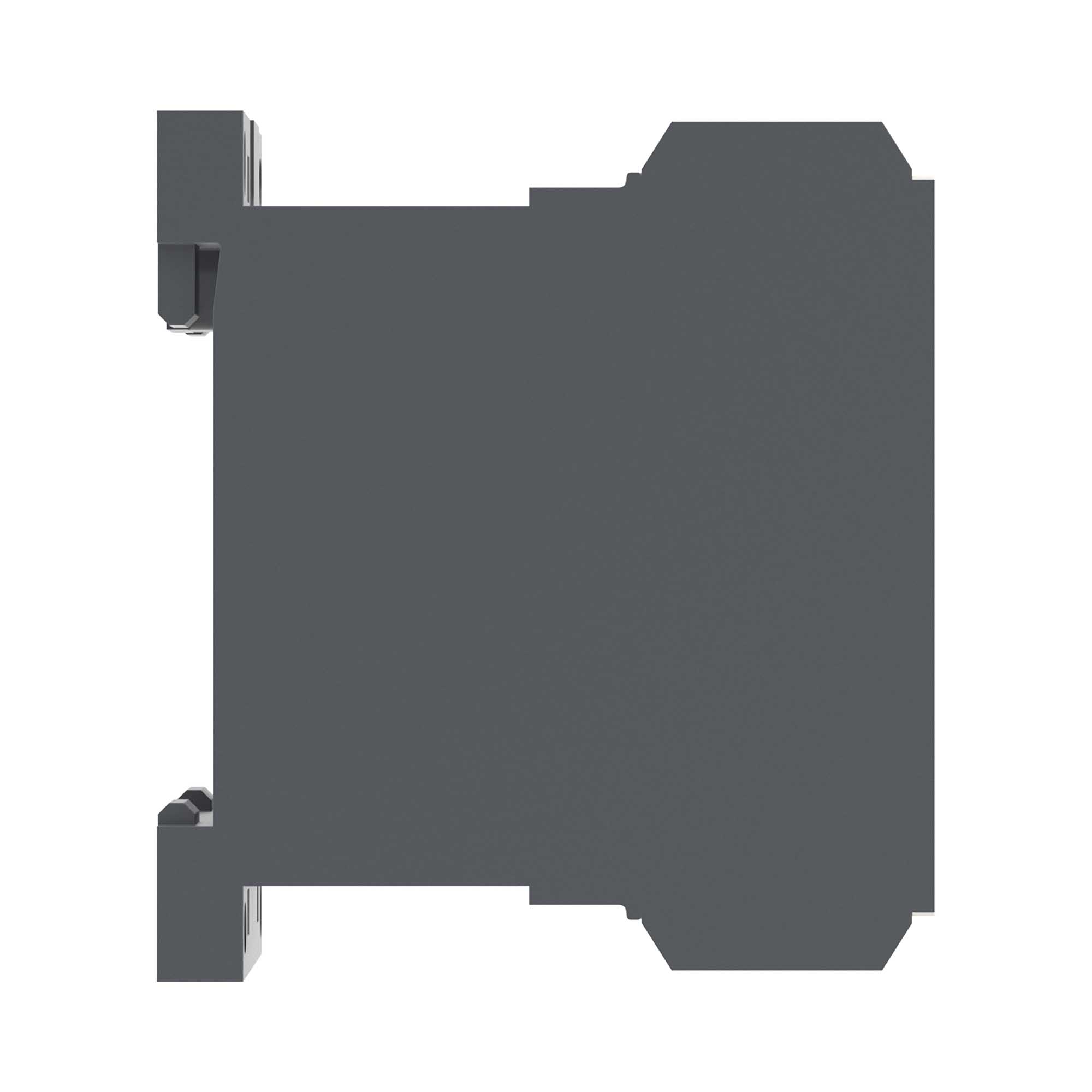

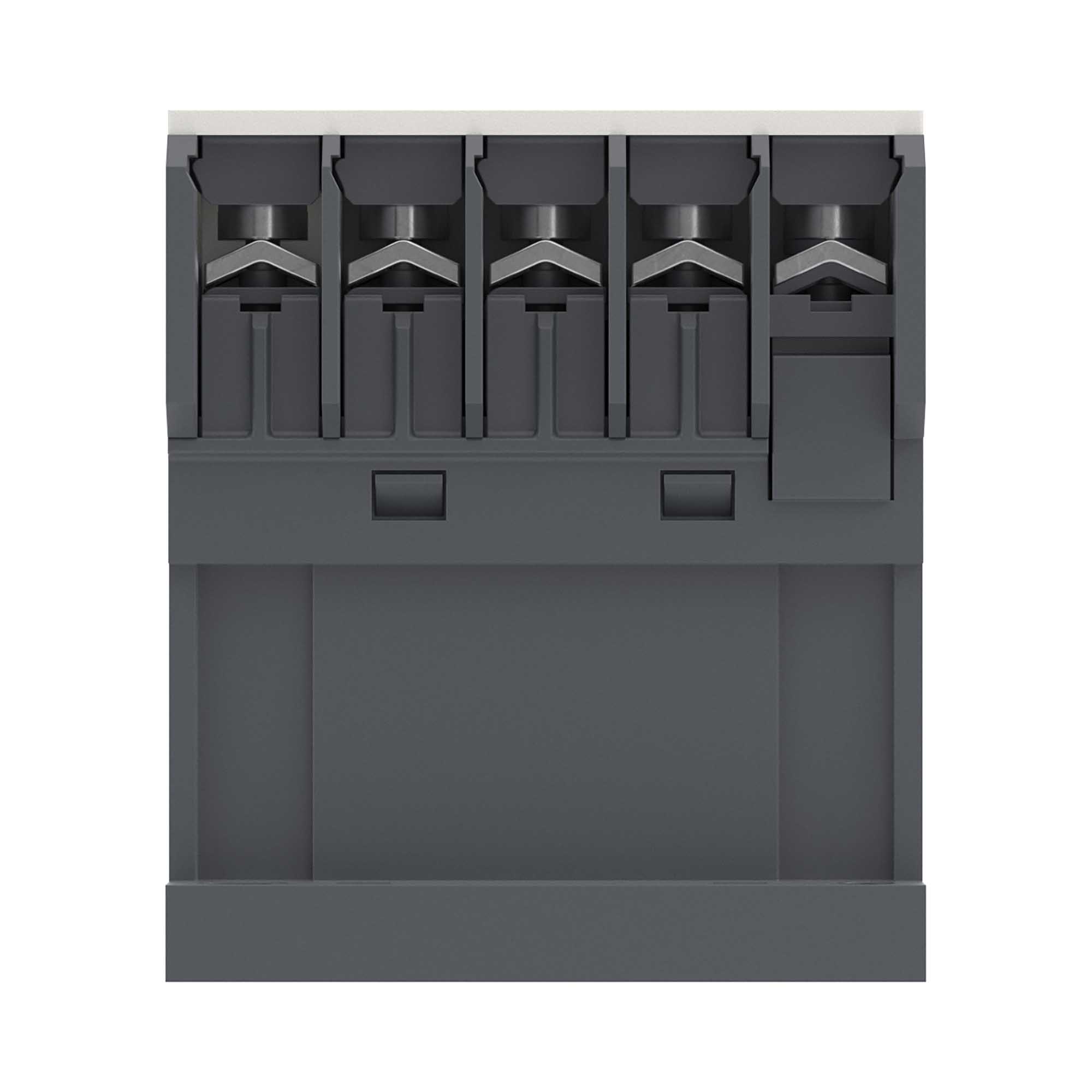

MC012P3010A380B MC Range Mini Contactors AC Coil12A AC 3Pole3 Power Pole & 4 th Pole (Aux) Either NO Or NC
Code: DMC012-3C10A380
MC012P3010A380B MC Range Mini Contactors AC Coil12A AC 3Pole3 Power Pole & 4 th Pole (Aux) Either NO Or NC
Code: DMC012-3C10A380
Modular version | No |
Rated operation power at AC-3, 400 V, kW | 5.5 |
Number of main contacts as normally open contact | 3 |
Number of auxiliary contacts as normally open contact | 1 |
Rated operation current Ie at AC-3, 400 V, A | 12 |
Rated operation current Ie at AC-1, 400 V, A | 22 |
Rated control supply voltage Us at AC 50HZ, V | 380...380 |
Type of electrical connection of main circuit | Cable clamp |
Voltage type for actuating | AC |
Rated operation current Ie at AC-4, 400 V, A | 10 |
Rated operation power at AC-4, 400 V, kW | 4 |
Type of contactors | DMC012 |
Poles | 3 |
Contacts | 1NO |
Type of voltage | AC |
Supply voltage | 380 V |
