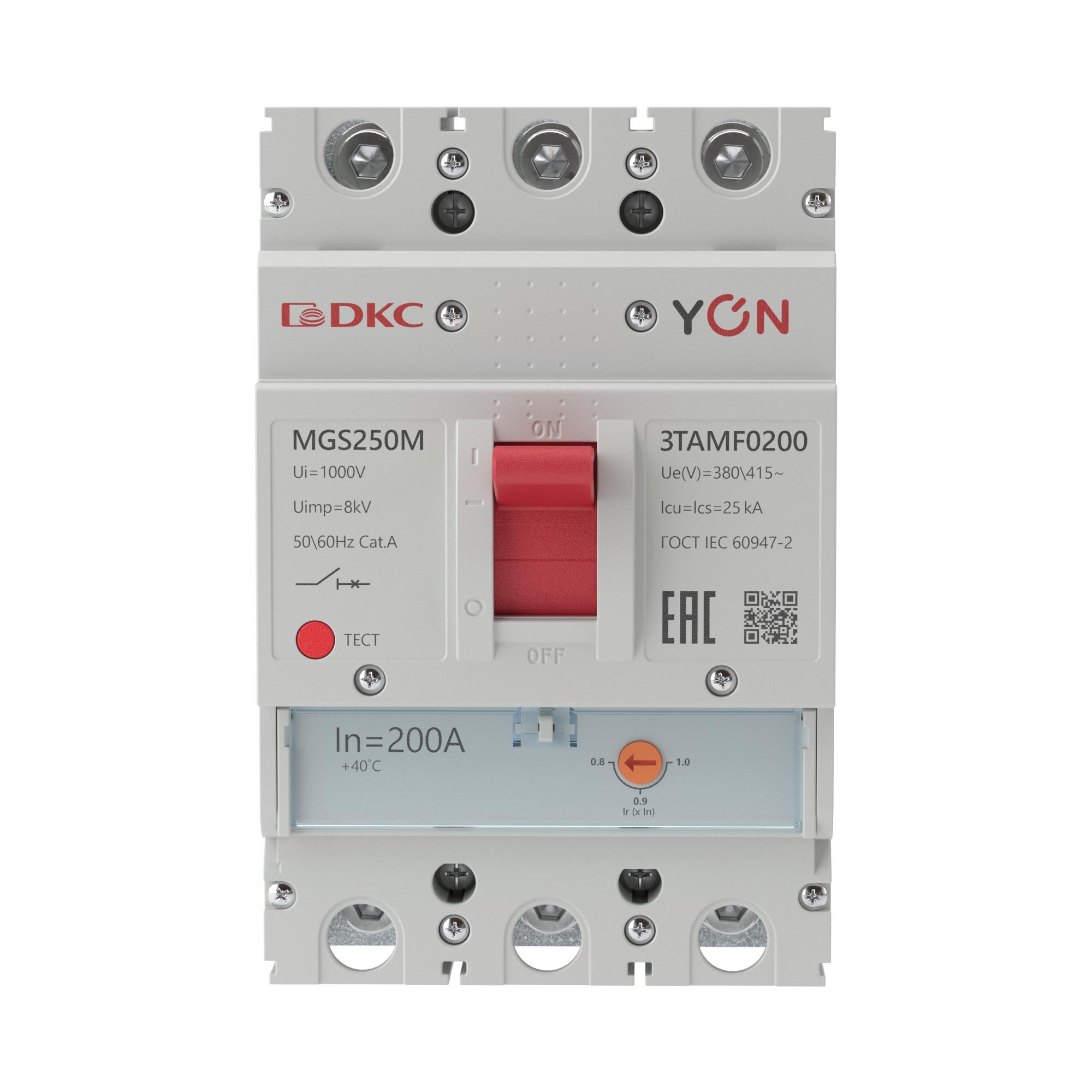

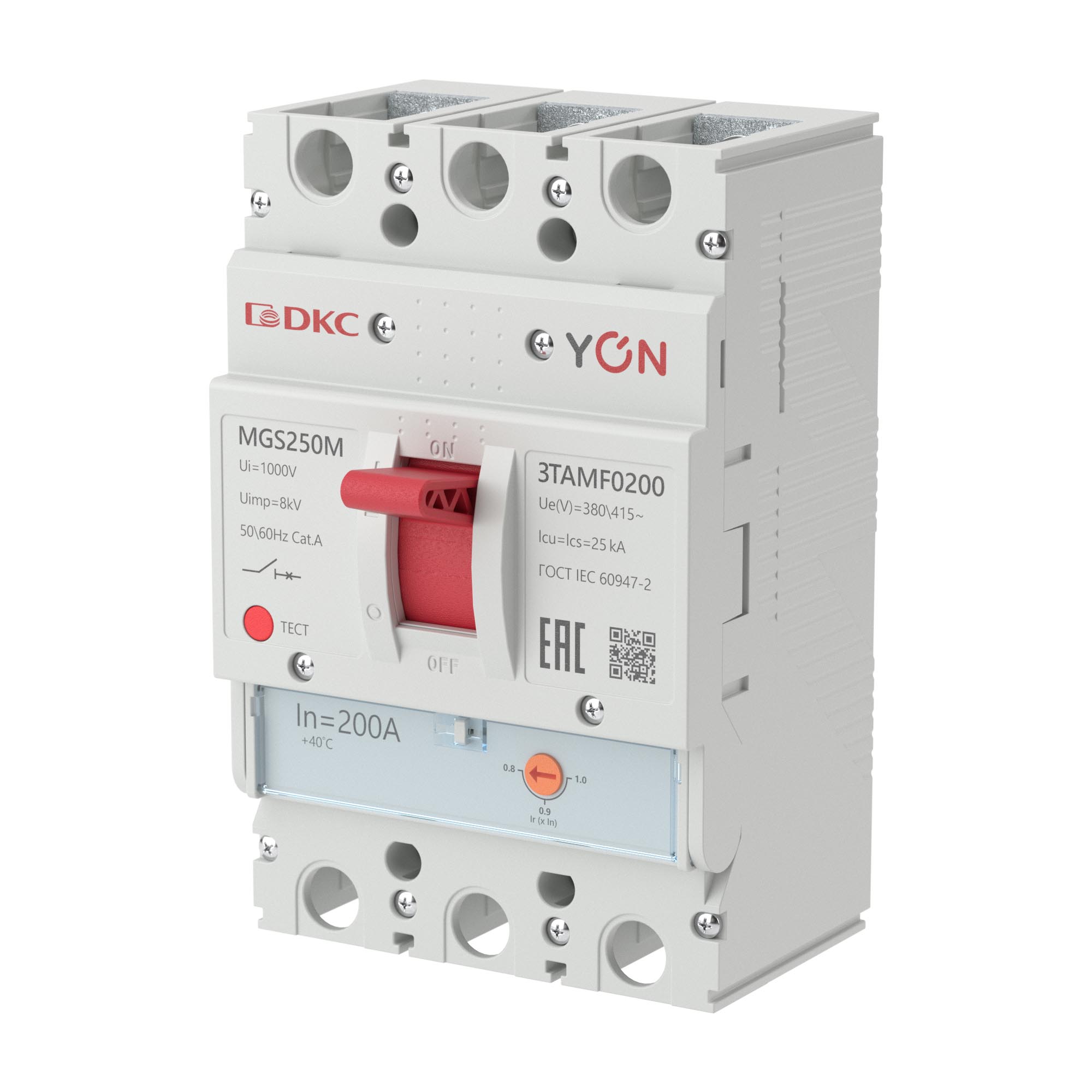

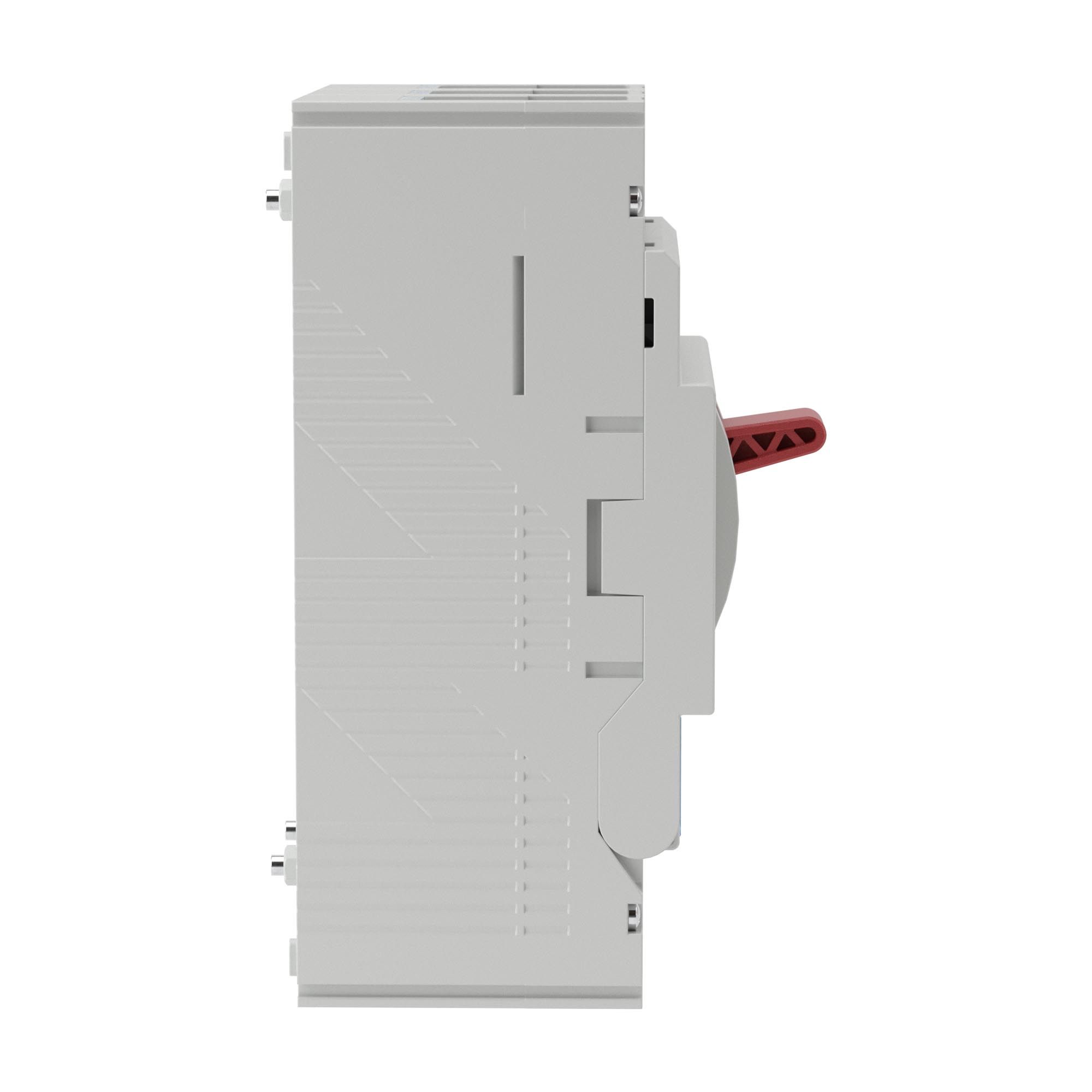

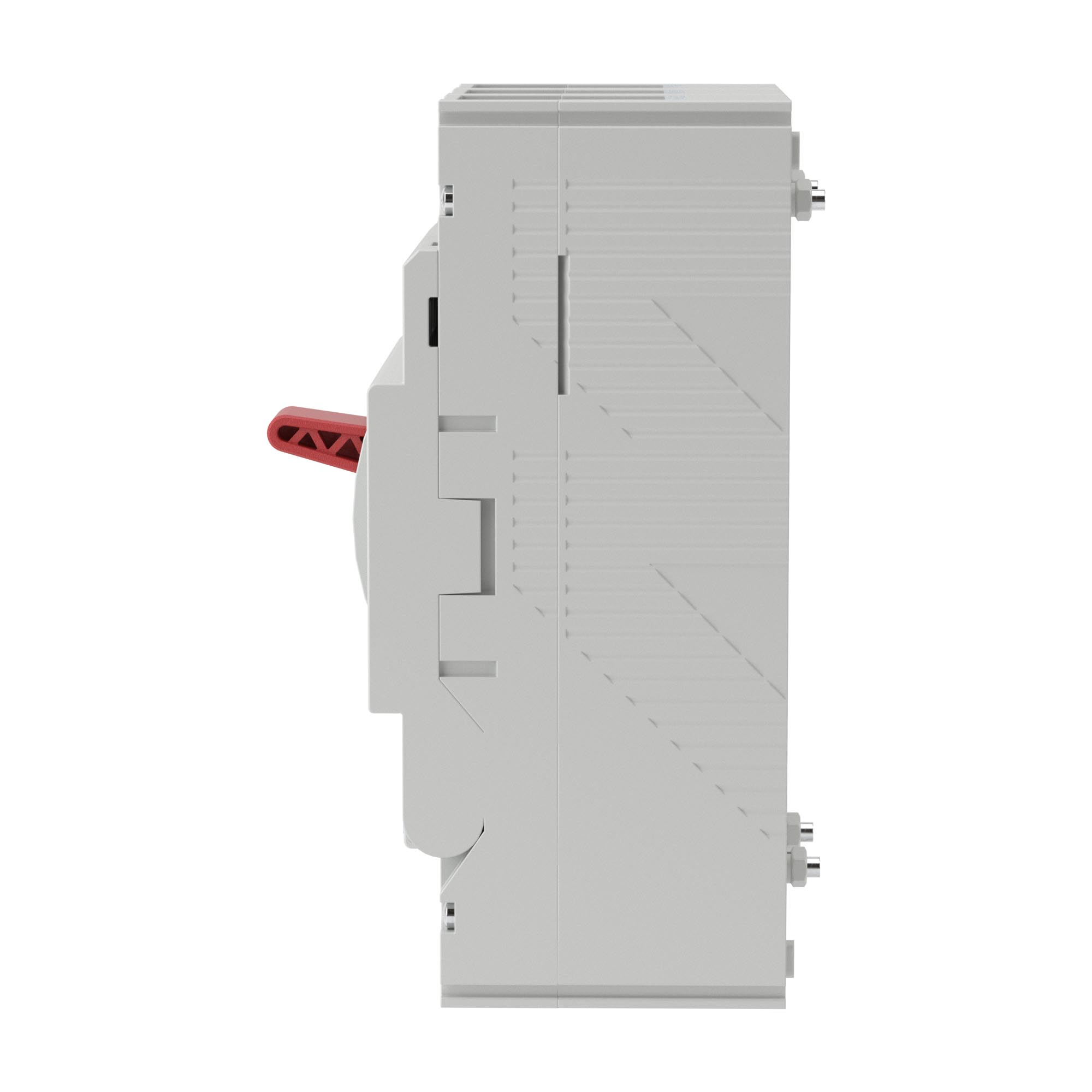

MCCB MGS250M-3TAMF0200
Code: MGS250M-3TAMF0200
MCCB MGS250M-3TAMF0200
Code: MGS250M-3TAMF0200
Rated permanent current Iu, A | 200 |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 25 |
Overload release current setting, A | 160...200 |
Type of electrical connection of main circuit | Bolt connection |
Device construction | Built-in device fixed built-in technique |
Suitable for DIN rail (top hat rail) mounting | No |
Number of poles | 3 |
Position of connection for main current circuit | Front side |
Degree of protection (IP) | IP20 |
Rated voltage, V | 380...415 |
Rated current In | 200А |
Q'ty of poles | 3 |
Type release | Thermal and electromagnetic |
Breaking Capacity Limit Icu | 25kA |
Regulation of currents in the overload zone | Yes |
Regulation of currents in the short-circuit zone | No |
