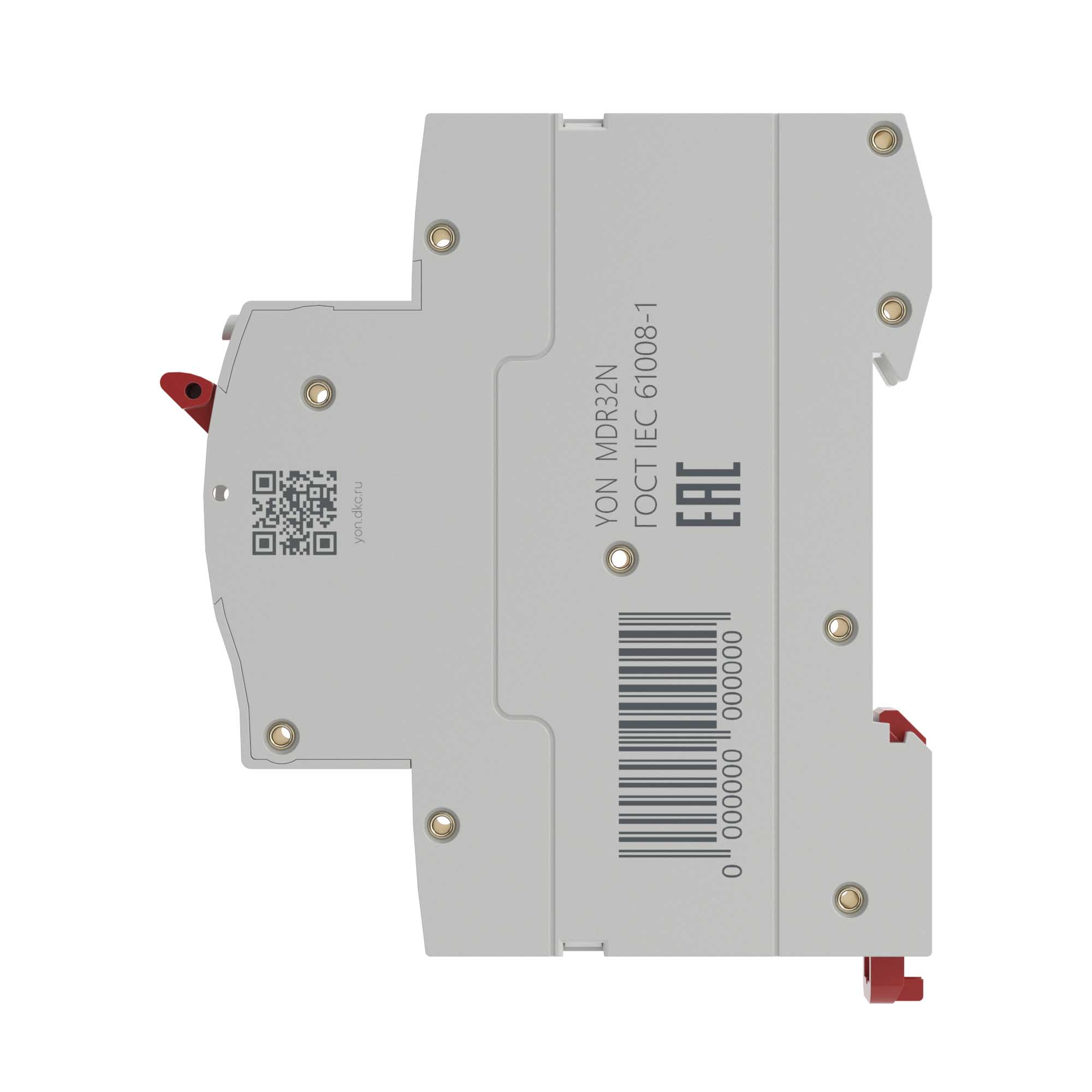

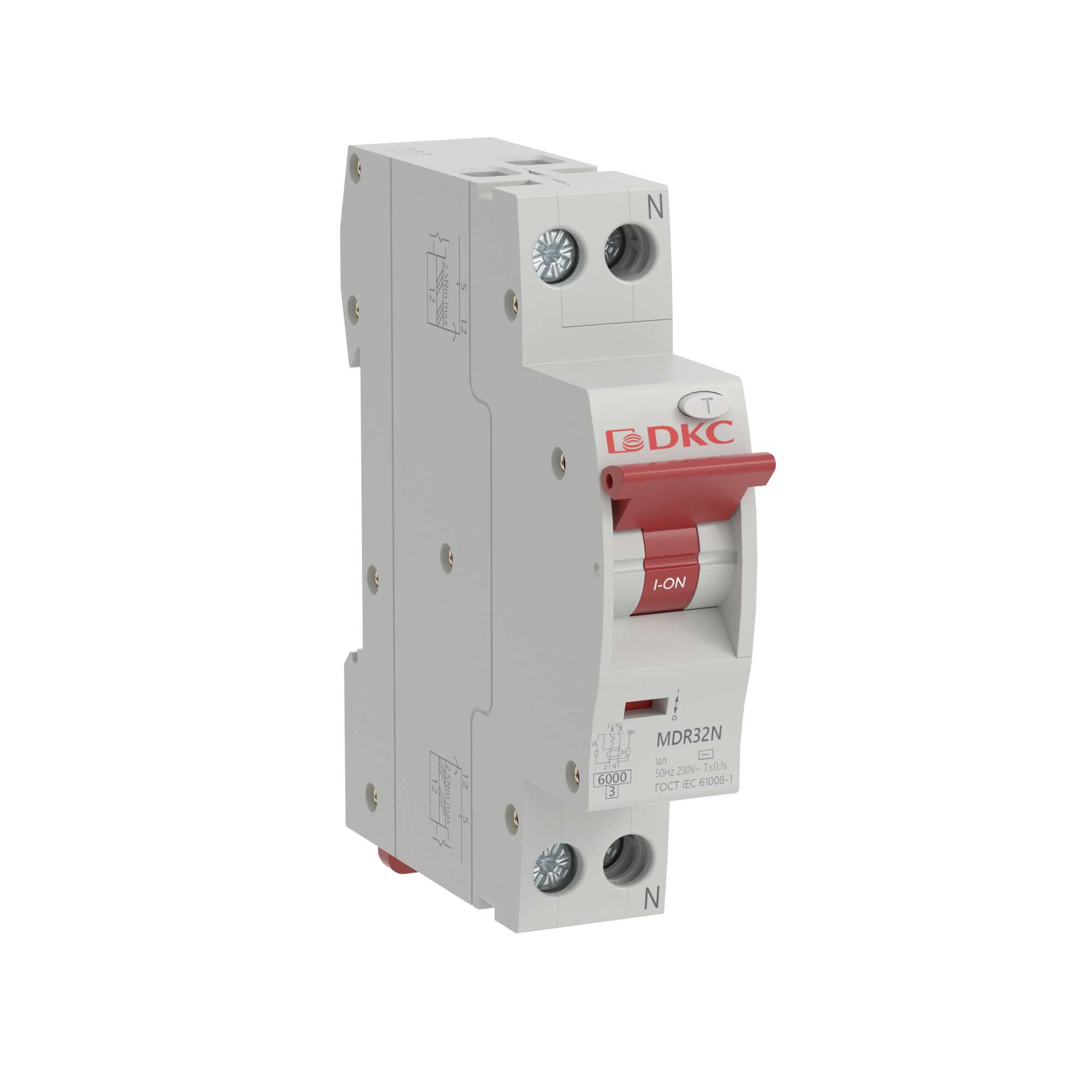

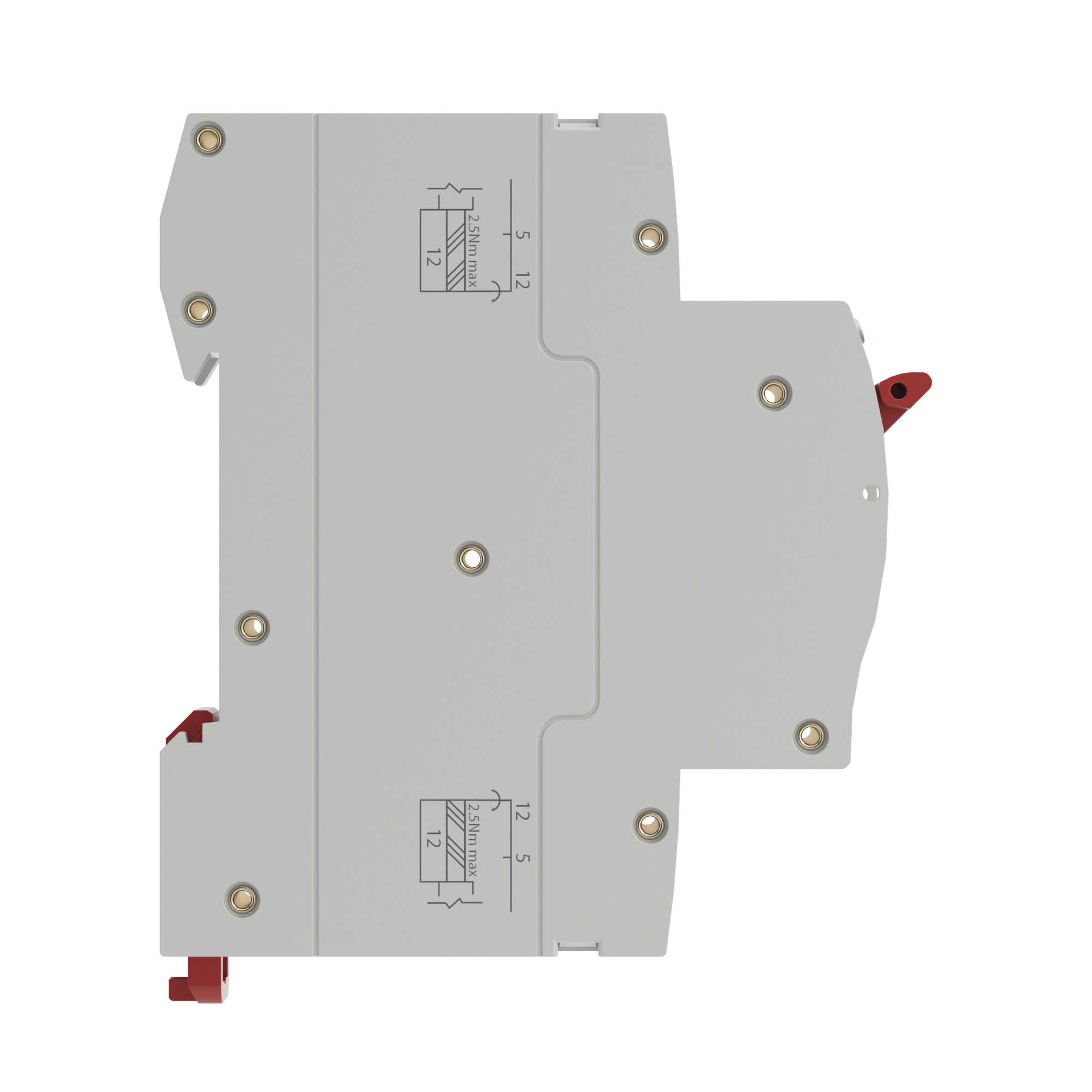

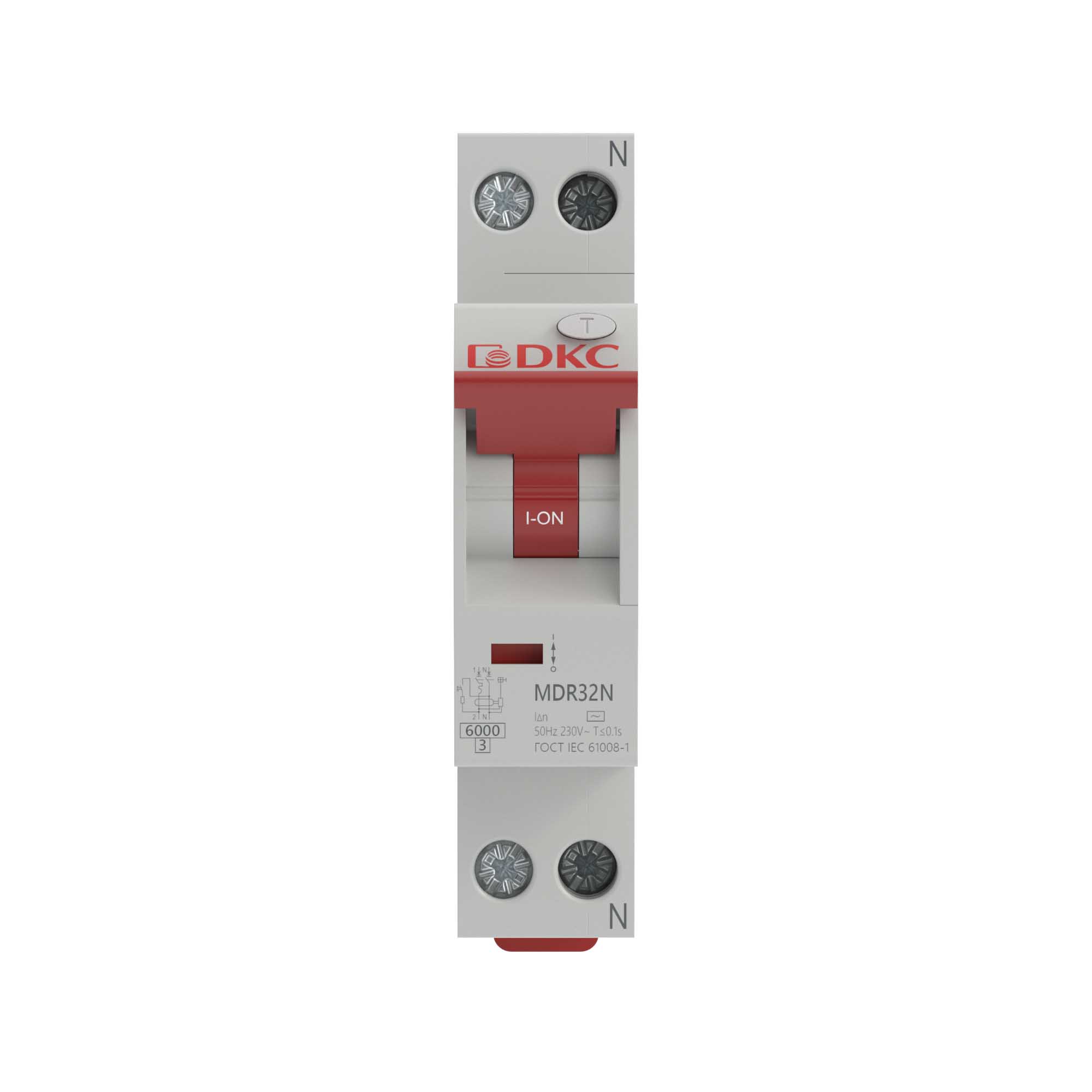

RCBO YON MDR32N 1P+N 10A C 300mA 6kA type A
Code: MDR32N-1N4C10-A
RCBO YON MDR32N 1P+N 10A C 300mA 6kA type A
Code: MDR32N-1N4C10-A
Voltage type | AC |
Built-in depth, mm | 78.2 |
Rated current, A | 10 |
Rated voltage, V | 240 |
Release characteristic | C |
Rated insulation voltage Ui, V | 690 |
Rated fault current, A | 0.3 |
Leakage current type | A |
Width in number of modular spacings | 1 |
Frequency | 50 Hz |
Degree of protection (IP) | IP20 |
Number of protected poles | 1 |
Concurrently switching N-neutral | Yes |
Rated short-circuit breaking capacity IEC 60947-2, kA | 6 |
Connectable conductor cross section solid-core, mm² | 16...16 |
Connectable conductor cross section multi-wired, mm² | 16...16 |
Ambient temperature during operating, °C | -25...40 |
Number of poles (total) | 2 |
Rated impulse withstand voltage Uimp, kV | 4 |
Rated short-circuit breaking capacity Icn according to EN 61009-1, kA | 6 |
Disconnection characteristic | Undelayed |
Rated short-circuit breaking capacity according to EN 61009, kA | 6 |
