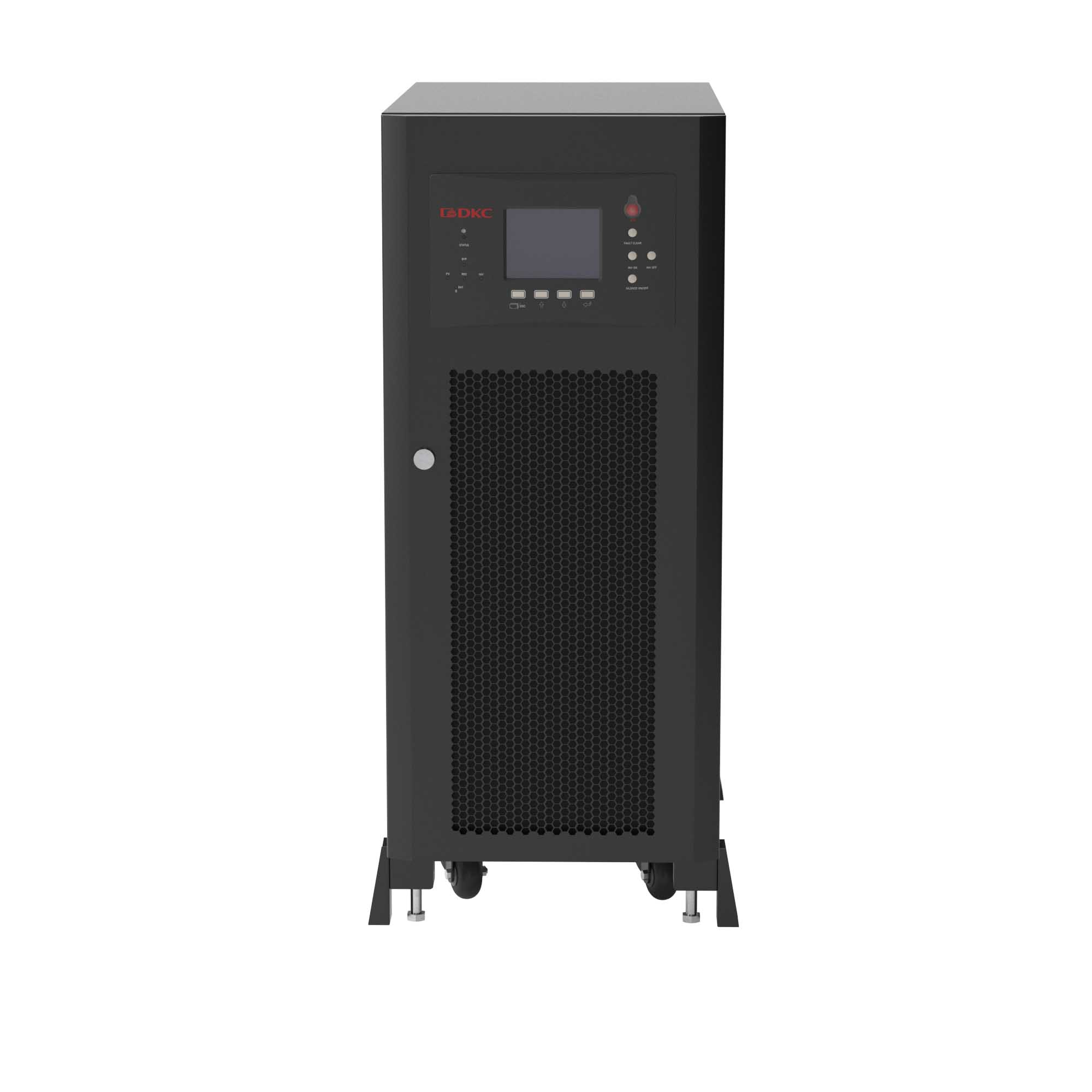

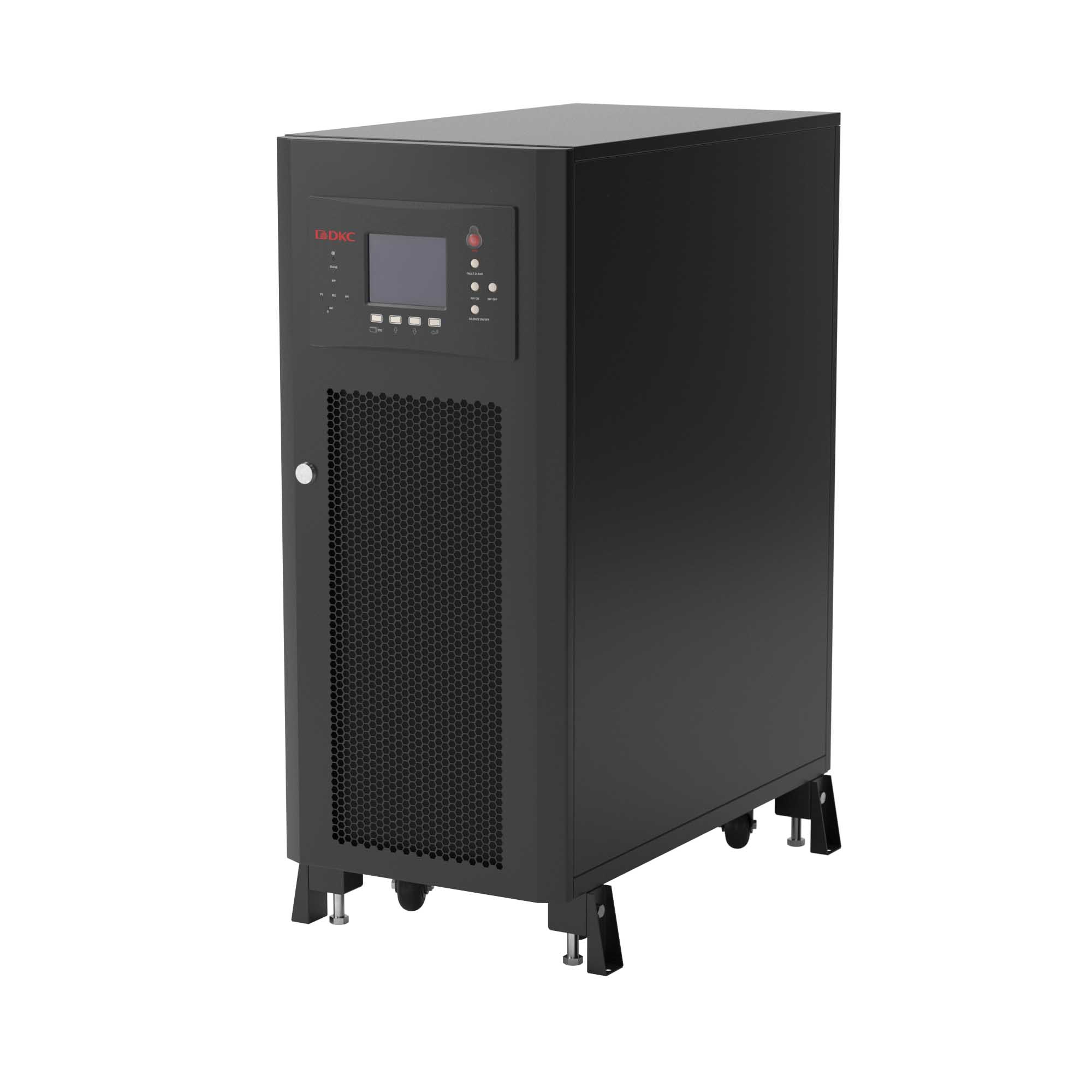

Three-phase solar inverter EOS Power Off-grid 18 kW/1MPPT
Code: EPA025D018A
Three-phase solar inverter EOS Power Off-grid 18 kW/1MPPT
Code: EPA025D018A
Width, mm | 450 |
Height, mm | 1100 |
Depth, mm | 840 |
Weight, kg | 223 |
With transformer | Yes |
Display | Standard |
Ethernet | No |
Input voltage, V | 310...450 |
3-phase power supply | Yes |
AC-nominal output power, W | 18000 |
Number of DC-screw connections | 4 |
Suitable for outdoor mounting | No |
Max. DC- input capacity, W | 25000 |
Max. input current, A | 60 |
MPP-voltage, V | 450...550 |
Net monitoring | 3-phase |
Degree of protection (IP) | IP20 |
Built-in battery | No |
Number MPP tracker | 1 |
Emergency power compatible | Yes |
With data logging | Yes |
Phase | Three-Phase |
Battery voltage | 358…384 VDC |
Max. voltage PV | 750 VDC |
Bypass | Separated, stable + service |
Communication interfaces | RS232/RS485/USB/Relay (base); SNMP/Wi-Fi/GPRS (option) |
Power connection | Screw terminals |
