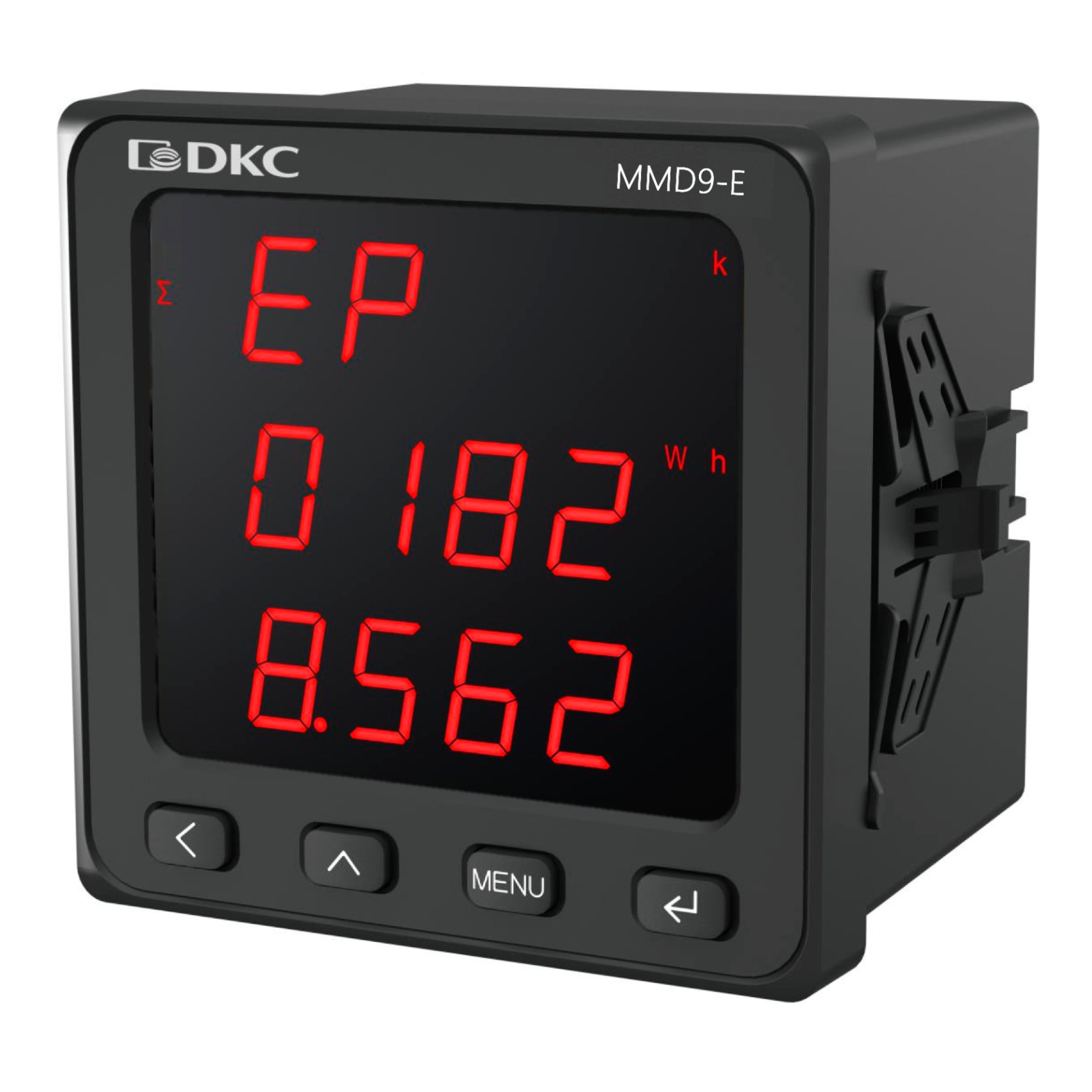

Multifunction measuring device MMD9-E, LED display
Code: MMD9-E-RS
Multifunction measuring device MMD9-E, LED display
Code: MMD9-E-RS
Ampere meter | Yes |
Blind power meter | Yes |
Rotational speed meter | No |
Frequency meter | Yes |
Pulse counter | Yes |
Voltmeter | Yes |
Effective power measurement device | Yes |

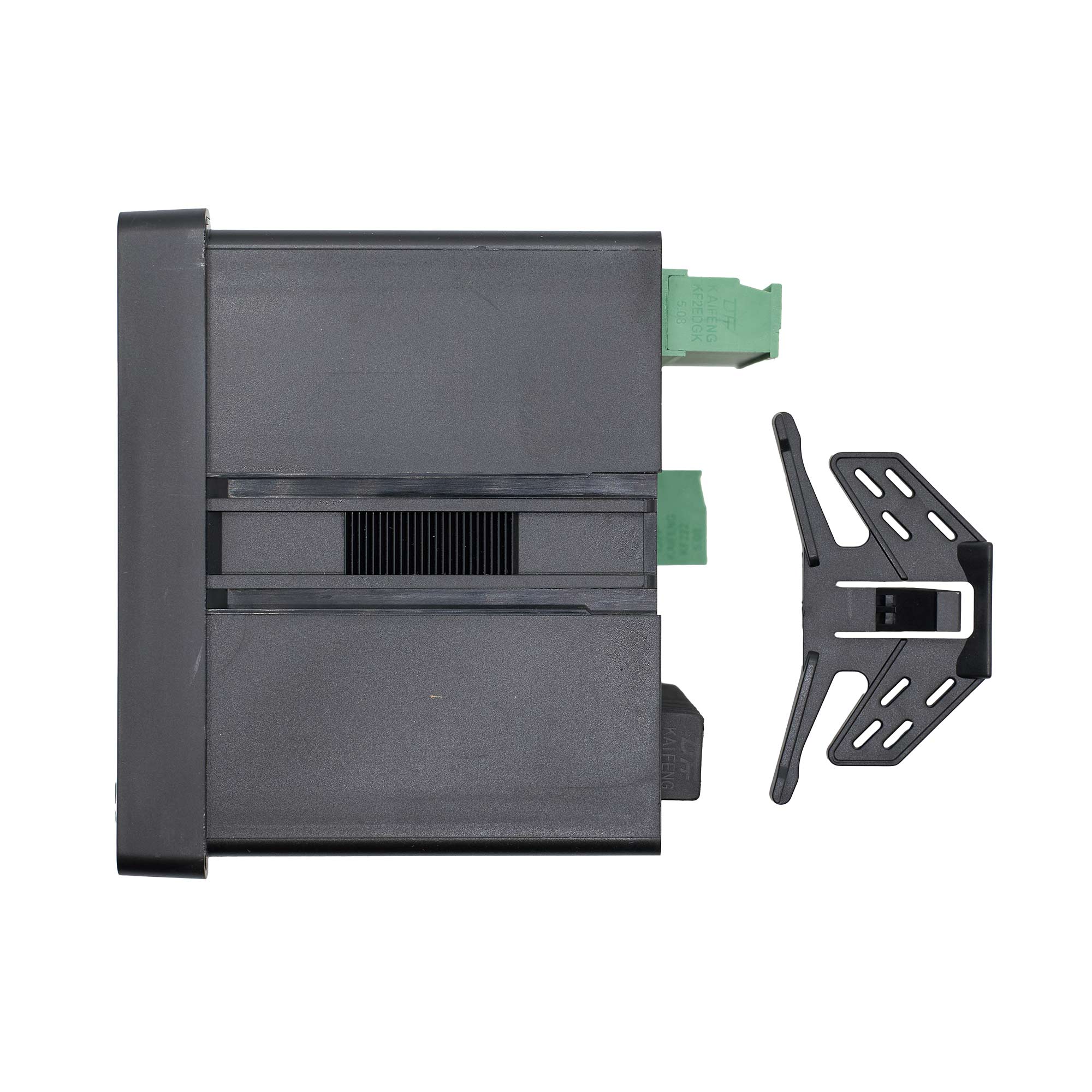

Mounting | Mounting clips |

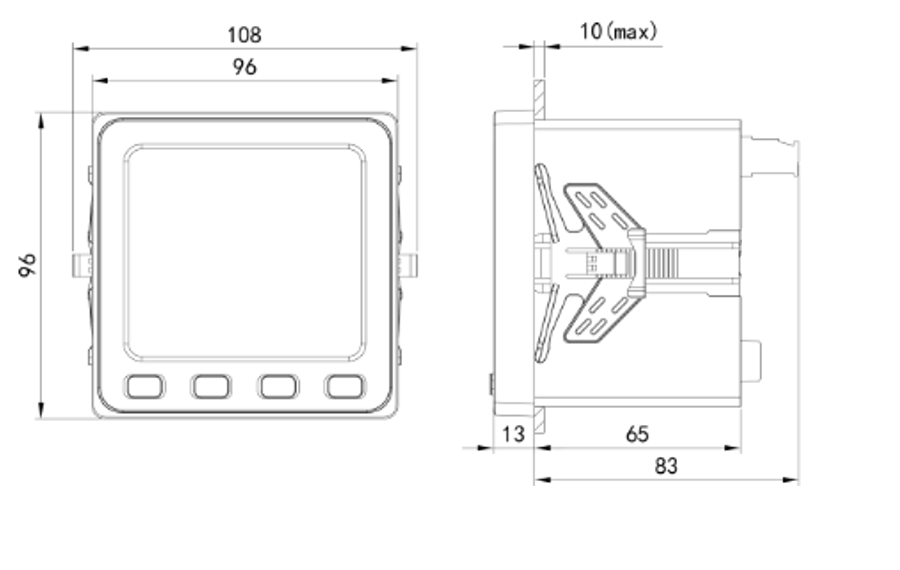

Width | 96 mm |
Height | 96 mm |
Depth | 83 mm |
Display | LED |
Degree of protection | Frontal panel: IP 65, case: IP20 |
Voltage input | 230/400 VAC |
Current input | 1 A or 5 A |
Frequency | 50/60 Hz ± 5 Hz |
Auxiliary power supply | AC/DC 80 V...270 V |
Communication interface | RS-485 |
Operating temperature range | -40°C...+70°C |
