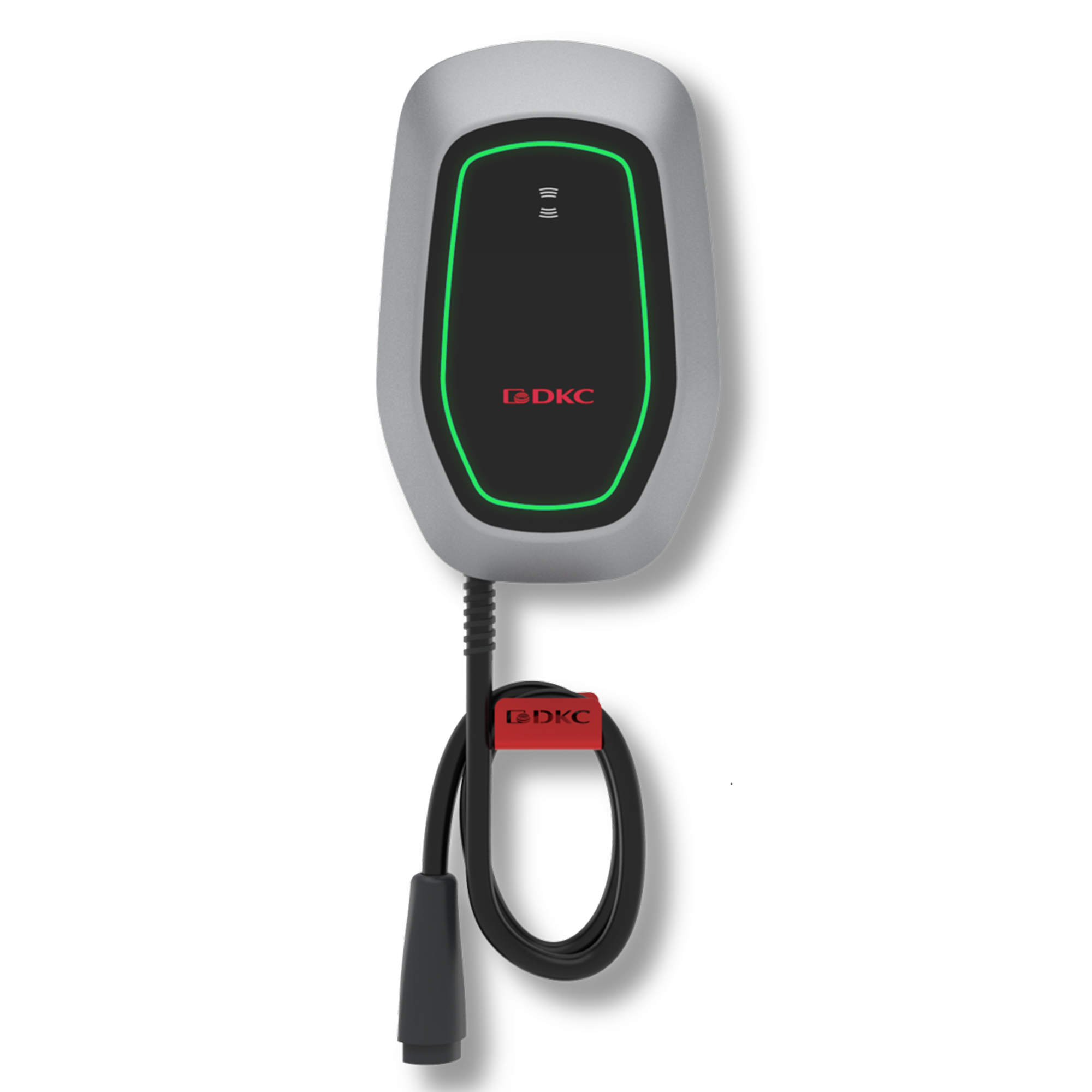

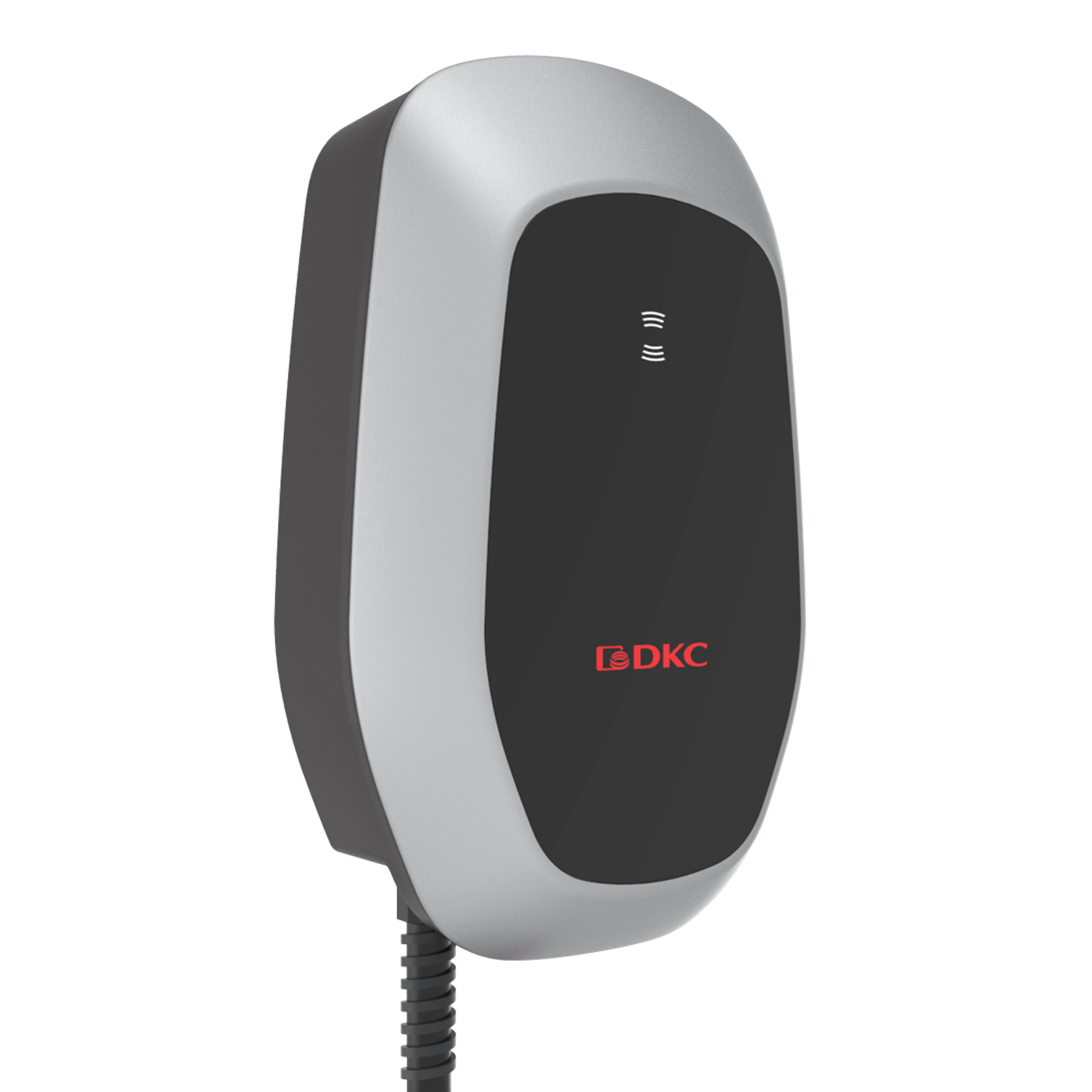

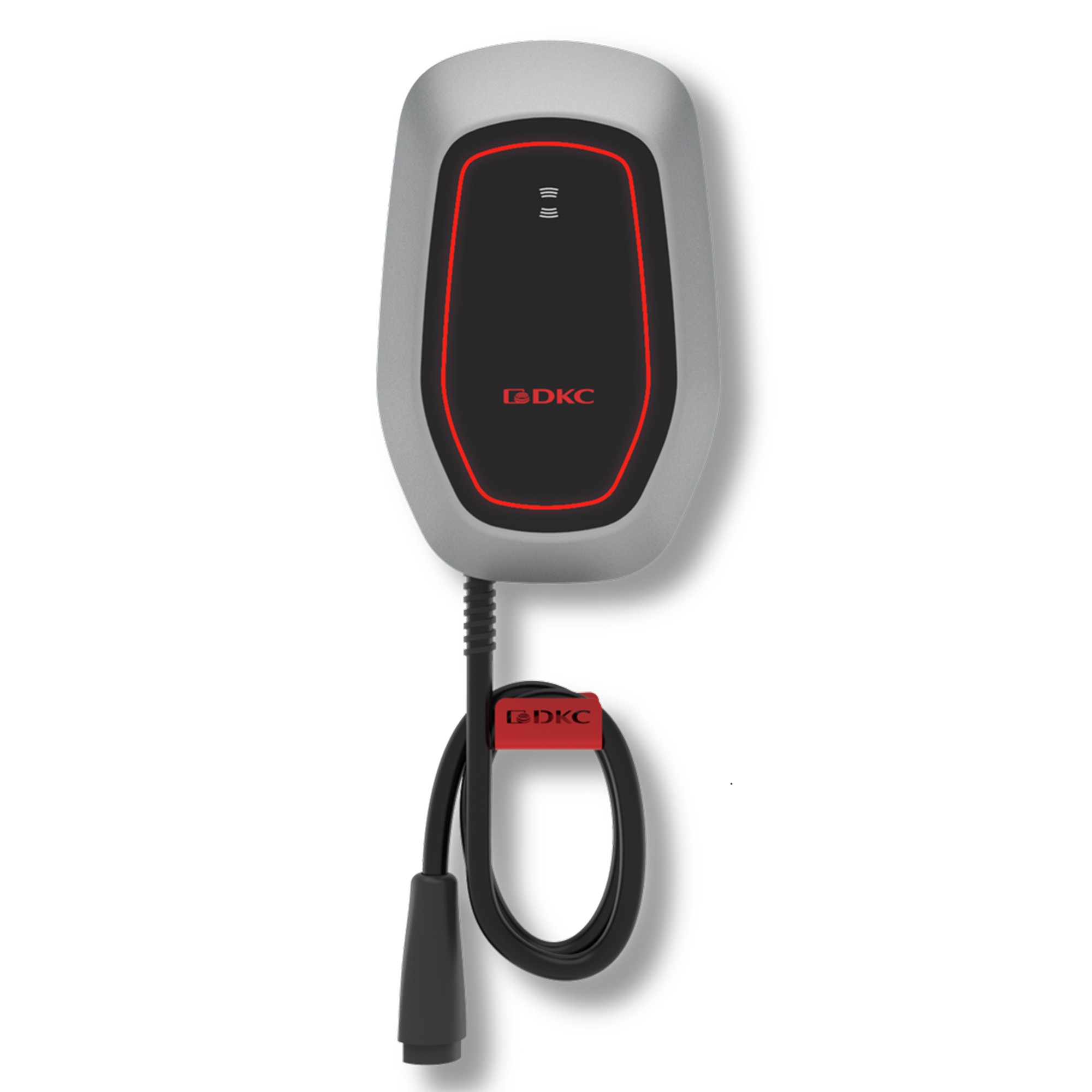

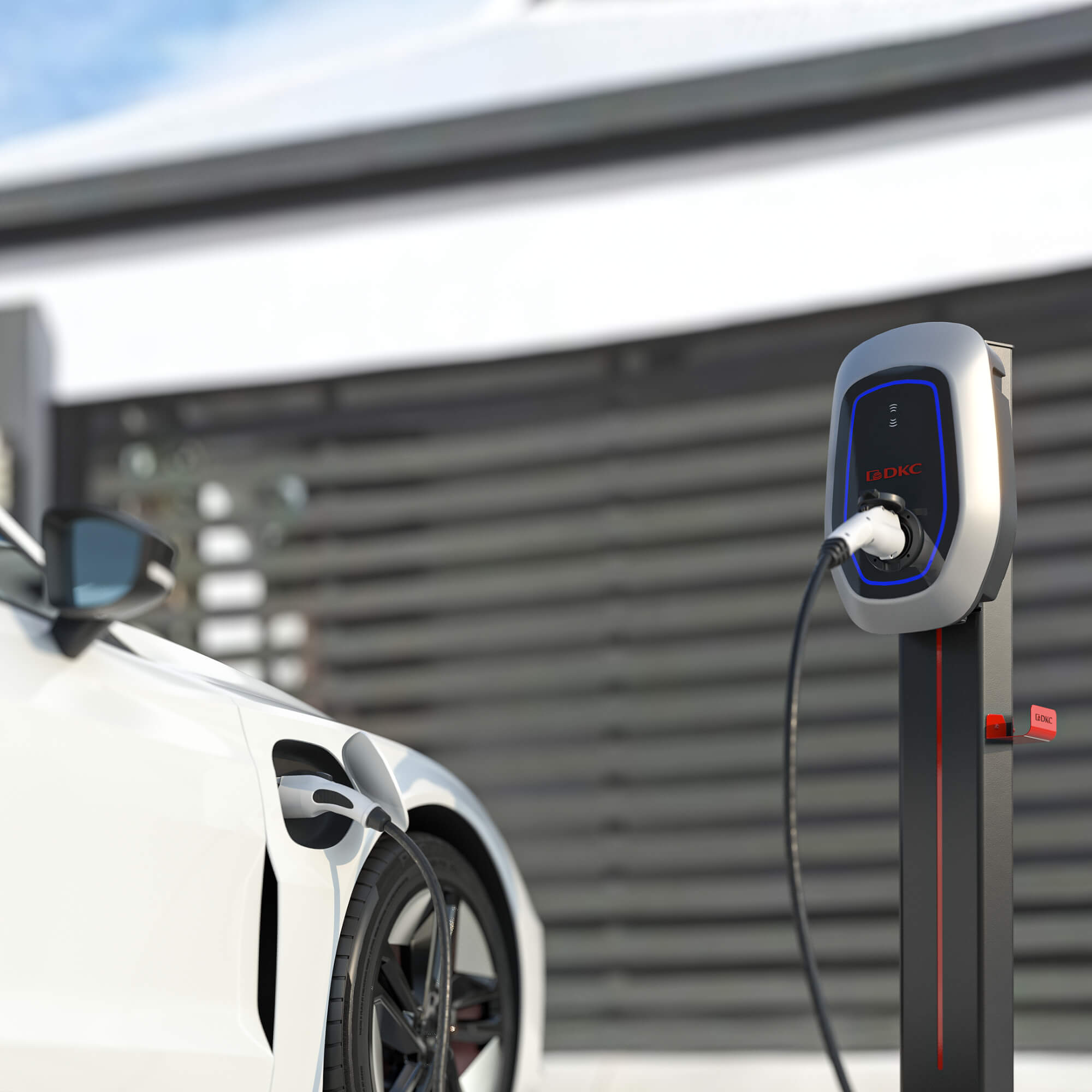

AC Charging Station - EOS Charge 22kW T2C 5m - RFID - WiFi - LAN - PowerMeter
Code: EC22CCOMS
AC Charging Station - EOS Charge 22kW T2C 5m - RFID - WiFi - LAN - PowerMeter
Code: EC22CCOMS
Mounting method | Wall mounting |

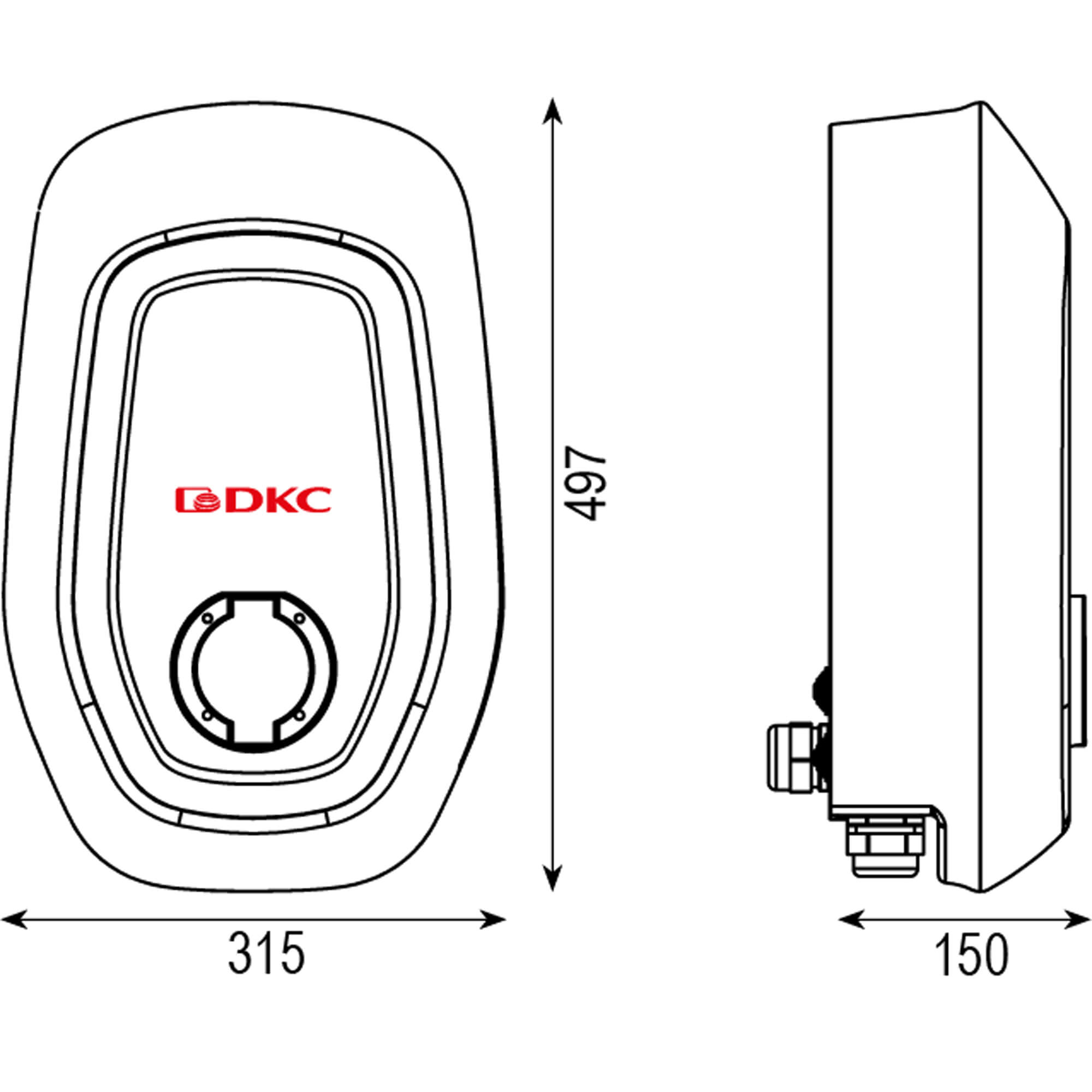

Width, mm | 315 |
Height, mm | 497 |
Depth, mm | 150 |
Material housing | Plastic |
Nominal connection power, kW | 22 |
Impact strength | IK10 |
Degree of protection (IP) | IP54 |
With communication interface | Yes |
Function access control | Yes |
Number of charging units | 1 |
With house connection box | No |
Number of earth leakage circuit breakers type A | 1 |
Max. power per charging point, kW | 22 |
With load management | Yes |
With energy meter | No |

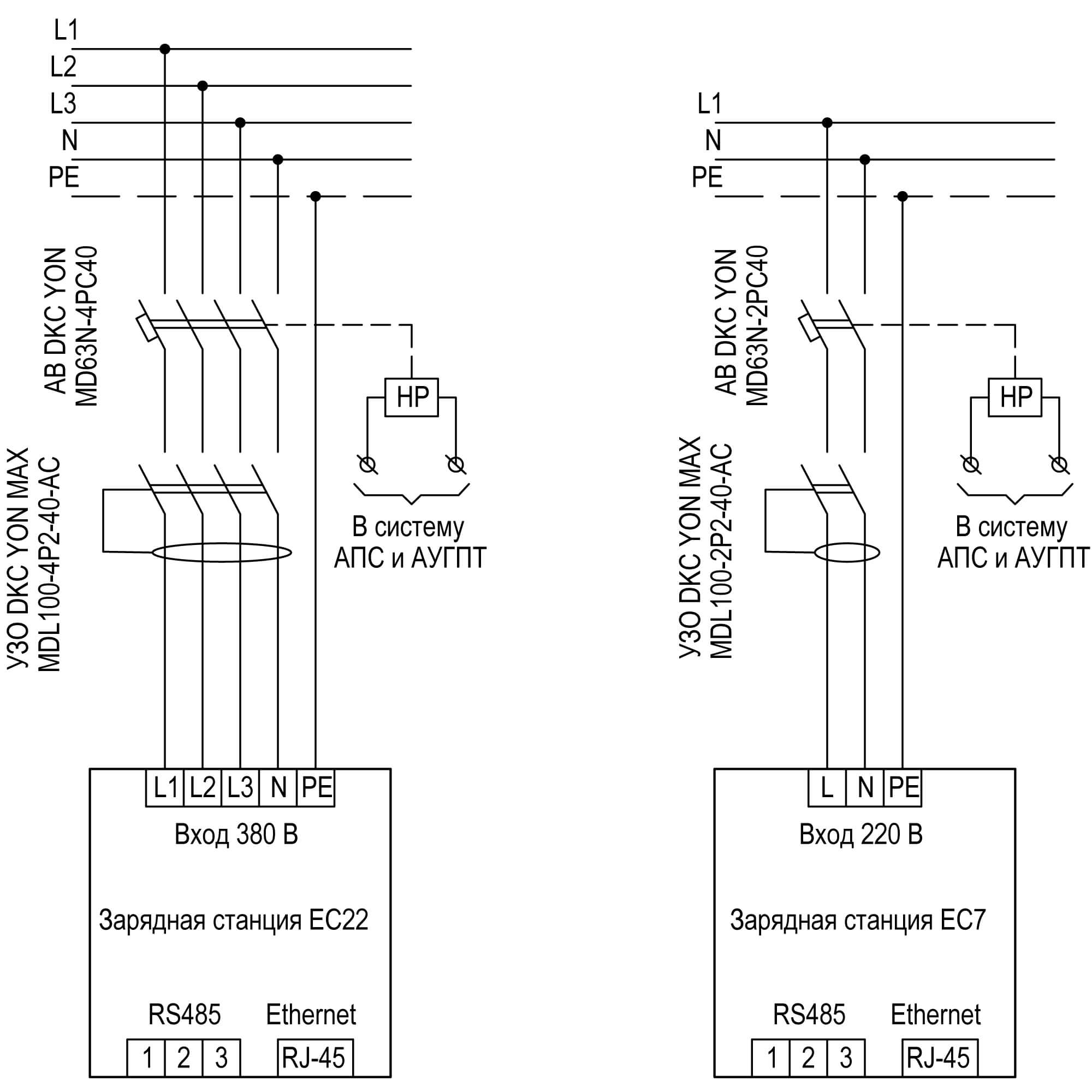

Installation side connection model | 3-phase |
Power | 22 kW |
Length of cable | 5 m |
Access protection | RFID |
Number of connectors | 1 |
Display status | LED |
Dynamic Load Balancing | No |
Connector type | Cable Type 2 |
