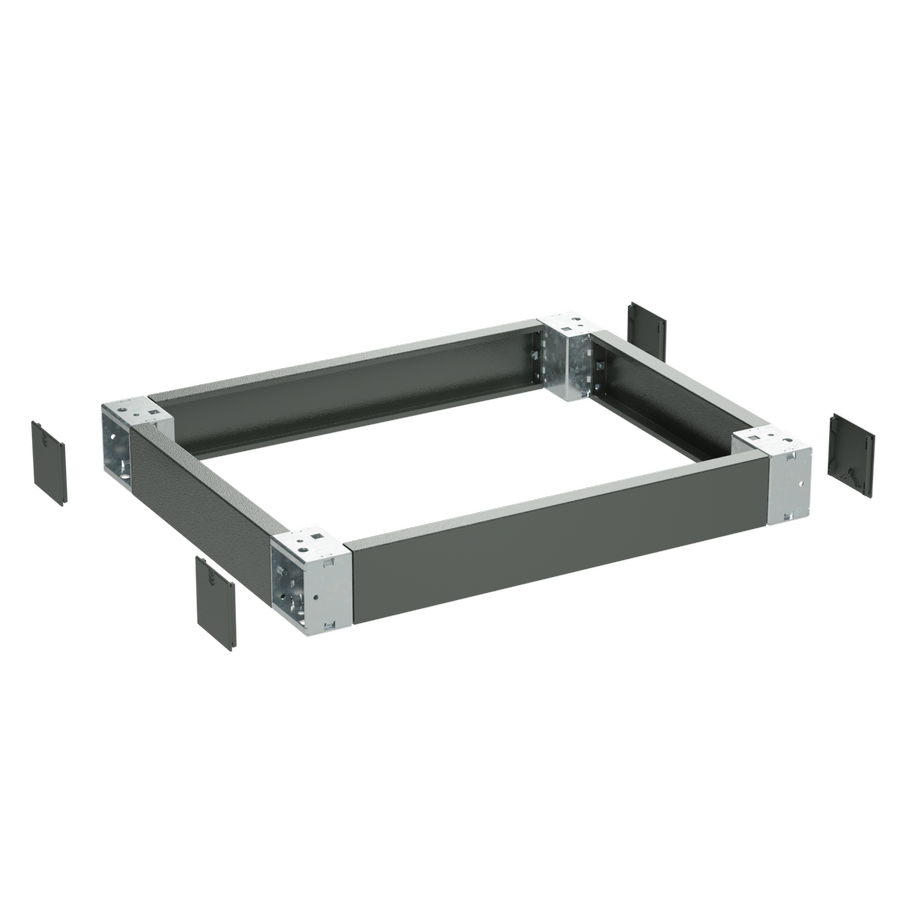

Universal prefabricated socle was moved to "RAM block" group

Despite the fact that the prefabricated socle is now included in "RAM block" group, it is universal: the product can be used in "RAM block", "RAM power" and "RAM mcc” systems.

The main advantages of "RAM block" prefabricated socle are:

1) Reliable fixation. The fixing of the socle is directly to the enclosure tripole;

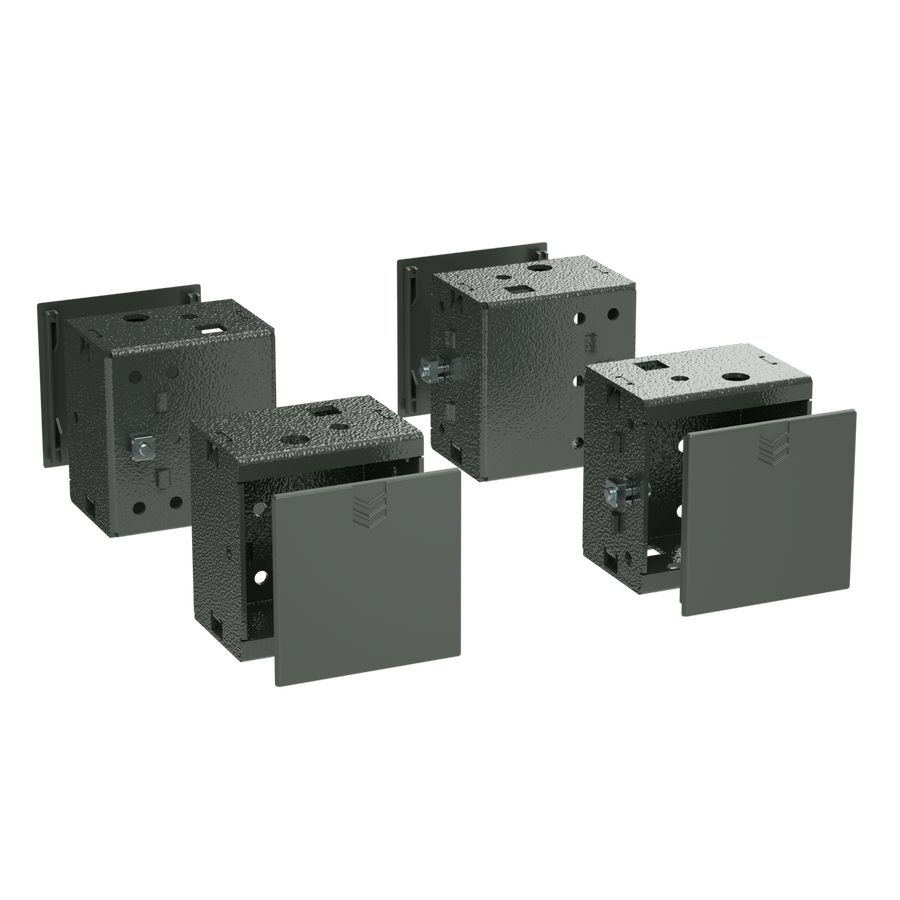

2) High bearing capacity. All-welded corner elements are made of galvanized steel with a thickness of 2.5 mm and provide seismic resistance of 9 points on the MSK-64 scale;
3) Transportability. Plastic plugs provide access for fixing to the floor or transport pallet;
4) Universal flanges. Socle flange sets can be installed both across and along the enclosure.

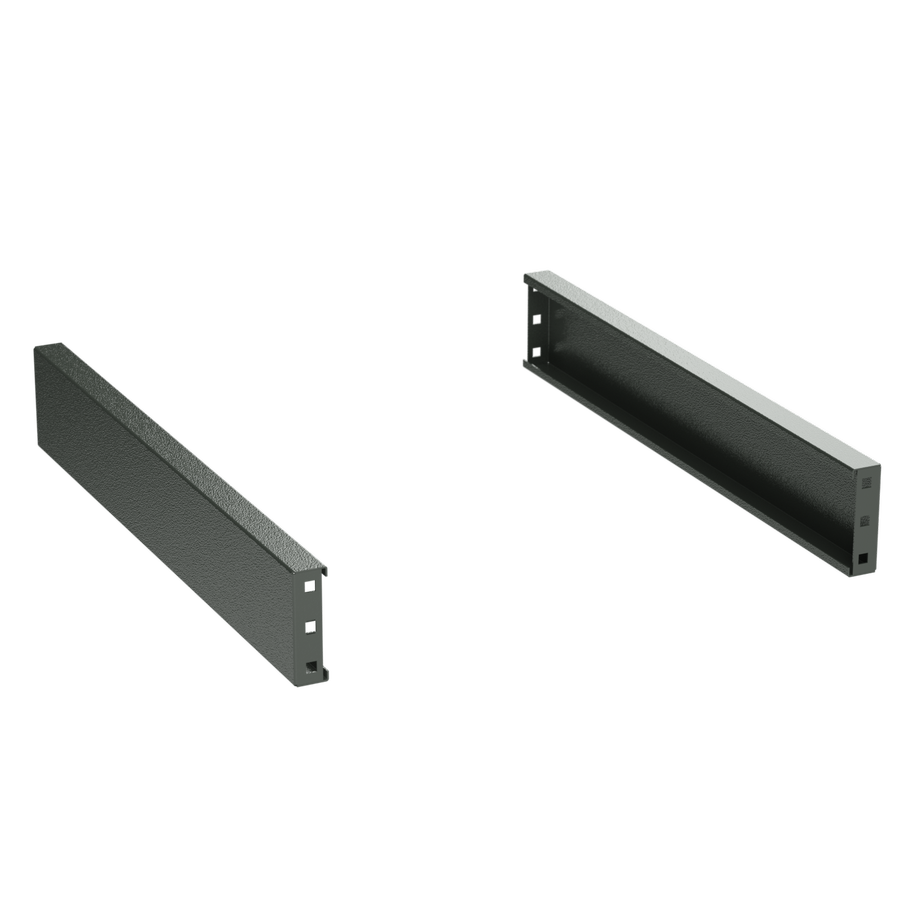

The length of the flanges of the socle can be 300, 400, 600, 800, 1000 or 1200 mm. The flanges are made of steel with a thickness of 1.2 mm and powder coated by RAL color 711. The corner elements are made of steel with a thickness of 2.5 mm.
